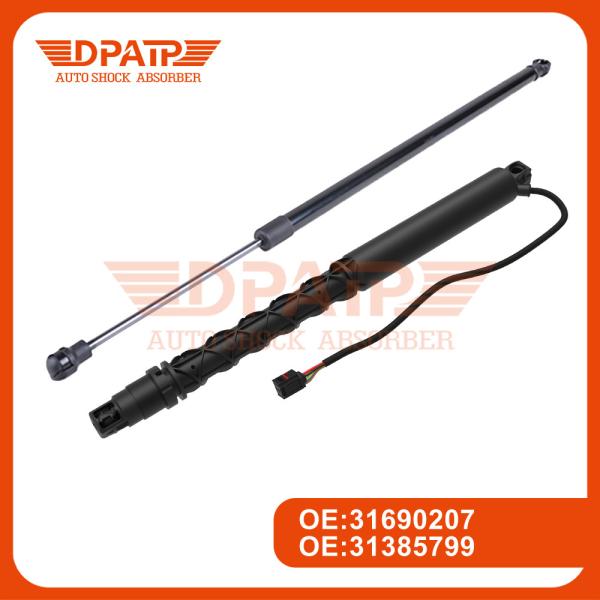

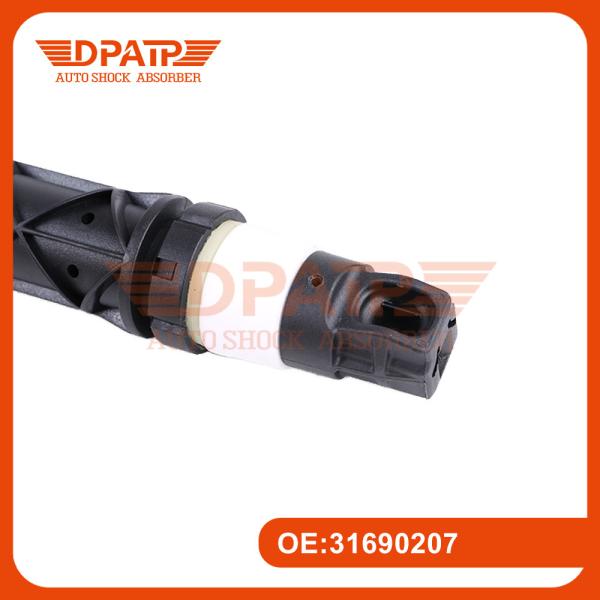

Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90
Specifications
Place of Origin :
China
Brand Name :
Depin
MOQ :
2 Pieces
Price :
Negotiable
Certification :
ISO CE
Packaging Details :
Carton Box
Delivery Time :
3-15 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Sets/month
Model Number :
31690207 31385799
Product Name :
Rear Electric Lift Support
Model :
Volvo S90
Year :
2017 - 2024
OE NO. :
31690207 31385799
Car Fitment :
Volvo
Warranty :
1 Year
Description

Rear Electric Lift Support Gas Spring Tailgate 31690207 31385799 for Volvo S90

Feature

This product features automatic opening and closing of the tailgate through an electronic control system, simplifying operation. It supports multi-mode control, including car keys, interior buttons, tailgate buttons, and foot sensing, offering flexibility and convenience. The built-in anti-pinch protection sensors detect resistance during operation to prevent injuries or damage to items. Additionally, it includes a high-memory function that allows users to set the opening and closing height of the tailgate to suit their needs, making it accessible for people of different heights. The slow start and slow stop function enhances comfort by ensuring smooth and gentle movement during operation.

Product Description

The electric strut is mainly composed of ball and socket, hall sensor, motor, reducer, screw, nut, spring and other components. After receiving the command of the controller module, the motor is turned forward or reversed, and the torque is increased by decelerating through the reducer box, and the screw is driven to rotate, and the relative motion between the screw and the nut is generated. Under the help of the compression spring, the stay rod is extended or shortened, and the Hall sensor at the tail of the motor will feedback its signal to the controller to control the open and closed position of the stay rod.

The Role Of The Electric Tailgate Strut

Parameter Description
Type Electric Tailgate Strut
Material High-strength aluminum alloy or premium steel
Maximum Load Specific to vehicle model
Operating Voltage Voltage required for the electric system (e.g., 12V or 24V)
Retractable Method Electric or pneumatic extension method
Operation Method Controlled via remote, switch inside the car, or built-in sensors
Safety Features Anti-pinch function, overload protection
Weather Resistance High temperature, low temperature, and waterproof design to withstand various climatic conditions
Weight 1.7KG(Depend on the model)
Service Life 50,000 cycles
Warranty Period 1 Year
