35mm advanced PTFE Banded Shock Absorber Piston Of Good seal and proper hardness for trucks

Specifications:

Size: D35*D10*12

Lip OD and bottom OD design

Advanced PTFE and filler as banding material

Can produce according to customer's design

pistons with excellent properties:

Density : 2.16g/cm³

Hardness : 60.5HRB

Tensile strength : 20.2 Mpa

Elangation @ break : 304%

Why choose XIAYI?

1. TS 16949 certificated

2. Technical team to design and produce banding machine

3. Produce PTFE ring disc in XIA YI company, can assure the properties and quality for the ring disc.

4. With more than 10 years experience

5. A whole complete sets of testing equipment for shock absorber pistons

Properties:

Description:

dimension 25mm shock absorber piston kit used in different automotives

choose imported raw material

pistons are used in light cars

XIAYI banding technology

Conventional Design

(1) Finished OD Tolerance of +/-50 Microns

(2) Requires Purchase and Inventory of Banding

(3) Requires Secondary Operations

(4) Banding Can Dislodge or Shift

(5) Potential for Uncontrolled Leak Paths

XIAYI is a professional team,producing different sizes of shock absorber pistons.

We can design and produce new samples and also we can produce full automatic banding machines

which are used to produce banded shock pistons.

There is a laboratory, we can do some tests for different fillers and raw material.We have plenty of testing

machines such as tensile strength testing machine, abrasion

testing machine, friction & blow-off testing machine(we produce this machine by ourselves,this is non-

standard testing machine which are used to test banded shock pistons).

We do our works with our heart and soul and we have confident to supply you products with good quality

and best survice.

We produce automatic banding machine by ourselves and we have related testing equipment such as

projector, analytical balance, friction-abrasion testing machine, blow-off testing machine, friction testing

machine and so on.We can test most of properties in our company and others we can’t test we will send

the standard sample blocks to Shanghai Plastics Research Institute.

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

Unique material for shock piston bands

Pistons are produced by automatic banding machine can assure the consistency of the size

Complete testing equipment

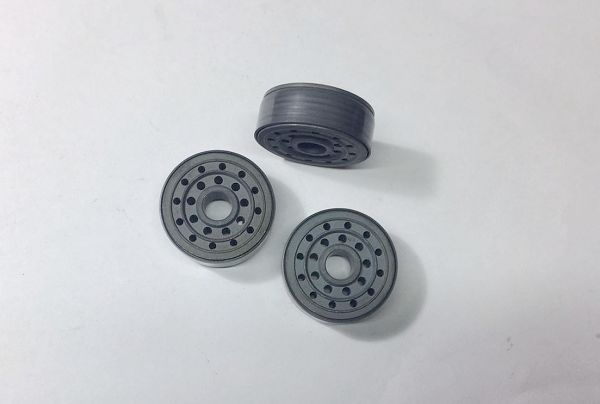

Picture show:
