Good seal steam treatment D27 TFM banding Shock Piston with Hoganas powder

Specifications:

Description:

Good seal steam treatment D27 multi-lip TFM banding Shock Piston with material of Hoganas powder

XIA YI is engaged in developing and manufacturing different kinds of shock absorber pistons powder

metallurgy based, with PTFE or TFM material banding outside, they have advantages of low friction, good

seal properties etc.

We have different testing machines such as abrasion testing machine, tensile strength testing machine,

density tester, hardness testing machine and so on. We also design and develop a special testing

machine which test blow-off of banding piston.

The products have passed the Test center, Shang hai Plastic Research Institute. We have set up good

cooperative relationship with some big shock absorber factories home and abroad. Our mass production

piston types are: Φ20, Φ25, Φ27, Φ30, Φ31, Φ32, Φ35, Φ36, Φ40, Φ45, Φ50.

SPEC: D27.05XD8X11.5

• Unique design for the fluid channels

• Material: FC50.U3.60

• Density is 6.0g/cm3

• Steam treatment

• Net weight is 27.32g

Here is the physical property of PTFE bandings

Tensile strength ≥23N/mm2

Working temperature -80°C to 260°C

Friction coefficient (dry) ≤0.20

Hardness 57-62

Advantages: multi-lip piston

Superior hard chrome piston finish

Maximum safety and stability

Available for different types of vehicles

Customer own design available

Optimum corrosion resistance

Superior design and engineering

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI is a professional company which produces different size and design shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

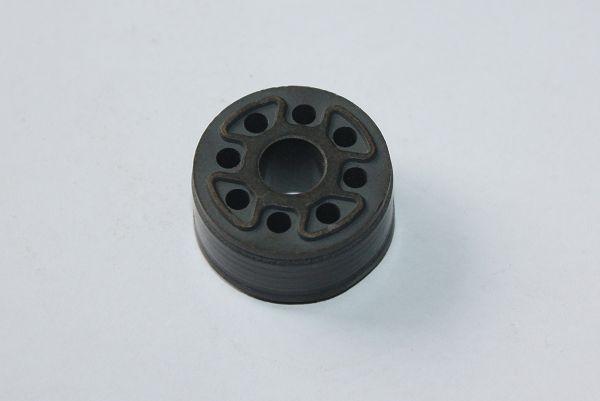

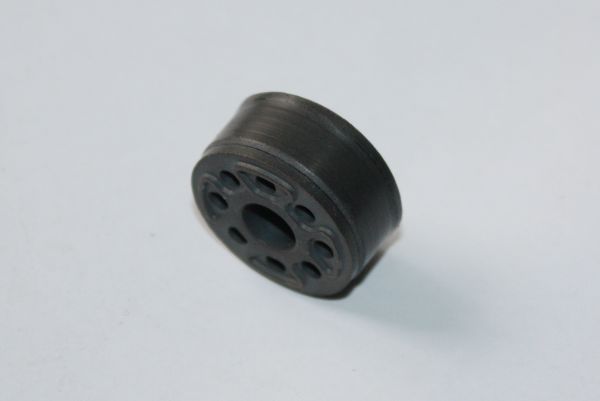

Picture show:
