Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
Specifications
Brand Name :
XIAYI
Model Number :
Φ27mm
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5,000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
30,000 pcs per month
Delivery Time :
Two weeks after PO confirm
Packaging Details :
Standard exporting package or according to customer's demand
Product Name :
banded Piston
Density of sinter piston :
More than 6.5g/cm3
Material of bands :
Fillled PTFE
Application :
car shock absorber
Density of bands :
2.06-2.19 g/cm3
Outer diameter :
27mm
Description

PTFE banding D27 Shock Absorber Piston with good seal and low friction for shocks

Specifications:

Various testing machine

Density balance

Shore hardness

Projector

Drawing force testing machine

Fatigue testing machine

Abrasion testing machine

Tensile testing machine

Oil immersion testing machine

Friction testing machine

Description:

PTFE banding D27 Shock Absorber Piston with good seal and low friction for various automotive

Our company produces shock absorber pistons with variety types. These shock absorber pistons can be

used in different car shock absorbers.

We have a strong team to research and develop automatic banding machines and annual capacity can

reach more than 20, 000, 000 PCS.

SPEC: D27XD8.5X12

• The piston is exported to Malaysia

• Used for rear shock absorber

• Material: F10.U3.60

• Hardness 65 HRB min

• Inclined holes

• Density is 6.3g/cm3

• With steam treatment

• Net weight is 27.82g

Here is the physical property of banding rings:

Tensile strength≥18MPa

Working temperature＝-80～260℃

Friction coefficient ≤0.20

Coefficient of linear expansion＝1.5*10-4l/℃

Elongation at break≥180％

density＝2.12-2.22g/cm3

hardness＝52-62

We can use the following material to produce discs:

1. PTFE+BRONZE

2. PTFE+CARBON (GRAPHITE)

3. PTFE+CARBON FIBER

4. PTFE+GLASS FIBER

5. OTHER FILLERS SUCH AS MOLYBDENUM DISULFIDE OR EKONOL

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI is a professional company which produces different size and design shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

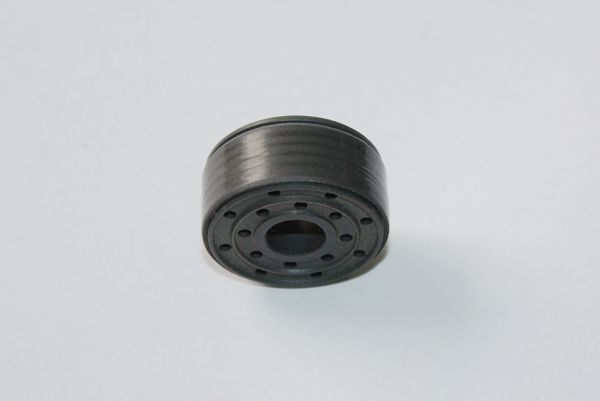

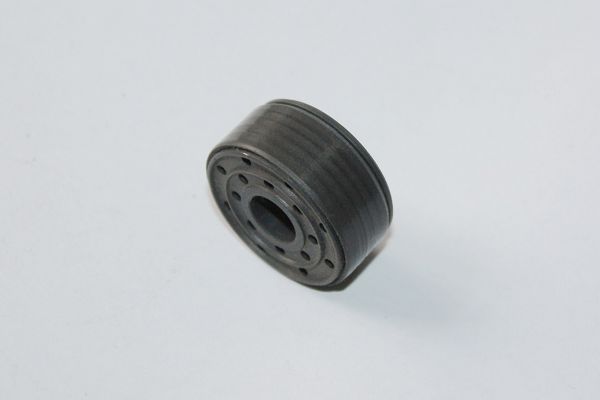

Picture show:

Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair

Hardness 65 HRB min PTFE Banded Piston D27 , Rear shock absorber repair
