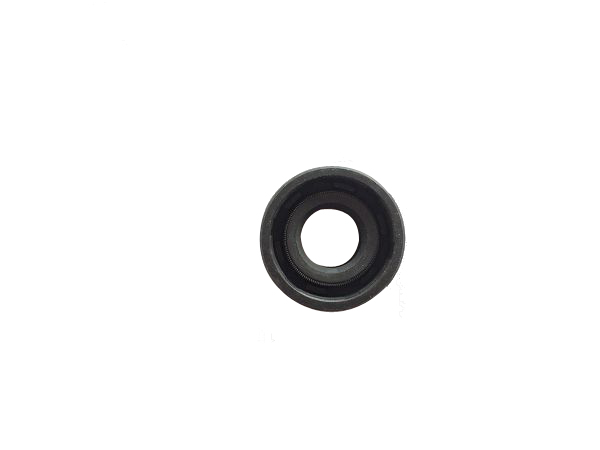

NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
Specifications
Brand Name :
XIAYI
Model Number :
20*33*10/15
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs per month
Delivery Time :
30 working days for new samples
Packaging Details :
standard export package
Product Name :
Oil seal
material :
NBR
Tensile strength :
14.2MPa
Application :
Shock absorber
Sample Time :
10days
Elongation @ break :
265%
Description

Shock Absorber Parts NBR Rubber Oil Seal Tensile Strength 14.2 Mpa Used In Cars

Specifications:

ITEM SPEC TEST METHOD RESULT
MAIN LIP ø18.20±0.35 PROJECTOR 18.12-18.16
DUSTPROOF LIP ø18.90±0.30 PROJECTOR 18.64-18.72
OD ø33+0.3/+0.1 CALIPER 33.16-33.26
HEIGHT (1) 10±0.20 CALIPER 10.10-10.16
HEIGHT (2) 15±0.30 CALIPER 15.20-15.24


Description:

Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve.

piston rod, valve disc, stamping parts and other sinter parts.

Equipment Advantages:

Automatic Hydraulic Machines

Automatic Mechanical Pressers

Vacuum Furnaces

Sintering furnace

CNC tooling machine

Properties:

ITEM SPEC RESULT STANDARD
Shore A 80±5 84 GB/T531-1999
Tensile strength ≥12MPa 14.2 GB/T528-1998
Elongation @ break ≥150% 265
Compression deformation Max+50 19 GB/T7759-1996
100℃ * 70 h Sample B type
Tear strength right angle ≥30 59.56 GB/T529-1999
air oven aging test Hardness change point 0～+10 +3 GB/T3512-2001
Tensile strength change rate Max-20 -2
Elongation @ break change rate Max-50 -6
oil resisitant 100℃ * 70 h (IRM901) Hardness change point -50～+10 +3 GB/T1690-1992
Volumn change rate -10～+5 +1
oil resisitant 100℃ * 70 h (IRM903) Hardness change point -10～+5 -2 GB/T1690-1992
Volumn change rate 0～+20 +4
Brittleness Temperature ≤-40℃ -40℃ GB/T1682-1994
Rubber standard: HG/T2810-2008 WA8533


We can also produce different valve seat with different dimensions.

Some dimensions of compression valve seat are below:

ØD ØD1 ØD2 Ød H H1 H2 h
28 23.8 22.1 16 11 4.3 2.5 3
29.8 25.8 22.1 16 11.5 4.3 2.5 3.5
33 28.3 22.1 16 15 7.3 3 4
34 29.1 22.1 17 16 9.5 3.5 4
35 30.8 22.1 16 15 7.3 3 4


Sintered Parts
1. Professional Fe/Cu based powder metallurgy parts manufacturer

2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--Packing

3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and low cost.

4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing strength, QC and PQC to ensure close tolerance and accurate dimension.

5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc. can produce according to drawings or samples.

Applications:

1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

Competitive Advantage:

(1) Electronic balance ensure density

(2) Test equipments to ensure crushing strength

(3) QC an PQC to ensure close tolerance and accurate dimension

Picture show:

NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa

NBR Rubber IATF16949 Shock Absorber Oil Seal Tensile Strength 14.2Mpa
