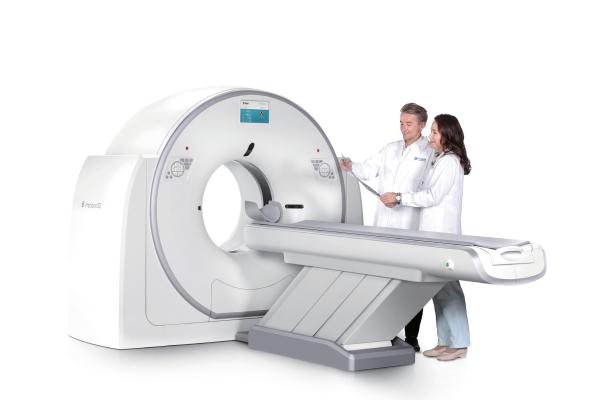

32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
Specifications
Brand Name :
guanxiong
Model Number :
CT-32
Certification :
CE
Place of Origin :
jiangsu, China
MOQ :
1 pieces
Price :
$140000/sets 1-99 sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Set/Sets per Month
Delivery Time :
3-15 work days
Application :
Hospital
Warranty :
4 Year
Power Source :
Electric
Product name :
CT scan
sampling rate :
1800view/cycle
max FOV(field of view) :
500mm
min scan time(s/360°) :
0.72s
Slices :
32 slices
Safety standard :
MOL
Shelf Life :
3 years
After-sale Service :
Online technical support
Aperture of frame :
71.5cm
Inclination angle of frame :
±30°
Cooling mode :
wind cooling
Description

ICEN Professional Hospital Ct Medical Vehicles For Mobile Ct Scan

Rack system Aperture of frame 71.5cm
Inclination angle of frame ±30°
Scanning collimation 2x1.1mm
8x0.55mm
16x0.55mm
16x1.1mm
32x0.275mm
Sampling rate 5400 view/360°
Image collection 32 floors/360°
Fastest speed 0.72 sec/lap
Scanning visual field 500mm
Data transmission mode digital transmission
Cooling mode wind cooling
explorer Number of detector rows Row 24
Number of detector units per row 888
Total number of detector units 21312
Detector width 17.6mm
Thinnest physical layer thickness 0.55mm

X- ray system focus Large: 1.2mmx1.4mm
Small: 0.7mmx0.8mm
Heat capacity of spherical tube 3.5MHU
Anode heat dissipation rate 735KHU/min(8750W)
Minimum output of bulb voltage 60KV
Bulb tube voltage range 60KV/70KV/80KV/100KV/120KV/140KV
Bulb tube current 10mA-350mA
High voltage generator power 42KW
Maximum continuous exposure time 100seconds

The precise tomographic technique

The thickness of the precision tomography images is only 0.275mm, both the inner ear structures such as the
ossicles and the cochlea, and the relationship between the inner ear structures are clearly visible, such as the
connection of the malleus and the corpora incudis.

32 slices hospital digital CT scan / 32-slice spiral CT scan equipment32 slices hospital digital CT scan / 32-slice spiral CT scan equipment

The conventional tomographic inner ear image

32 slices hospital digital CT scan / 32-slice spiral CT scan equipment 32 slices hospital digital CT scan / 32-slice spiral CT scan equipment

Intelligent medical imaging workstation

According to DICOM 3.0 international standard, the self-developed CIW workstation completely complies with

standards of medical images, including functions of obtaining, processing, analyzing, managing, archiving

querying, browsing, printing standard image format output, report writing and so on.At the same time, CIW also

contains many other advanced clinical applications.

32 slices hospital digital CT scan / 32-slice spiral CT scan equipment 32 slices hospital digital CT scan / 32-slice spiral CT scan equipment
