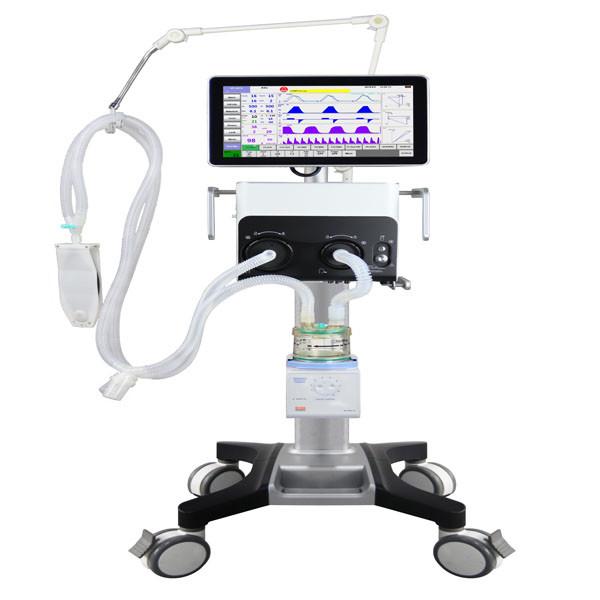

ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
Specifications
Place of Origin :
jiangsu, China
Brand Name :
guanxiong
Model Number :
PA700B
Packaging Details :
carton
Supply Ability :
10000 Set/Sets per Month
Price :
$1,999.00 - $3,999.00/sets
Certification :
CE
MOQ :
1 pieces
Payment Terms :
L/C, T/T
Delivery Time :
3-15 work days
Power Source :
Machinery, Electricity
Warranty :
1 Year
After-sale Service :
Online technical support
Material :
Metal, metal, plastic
Shelf Life :
1years
Quality Certification :
ce
Instrument classification :
Class III
Safety standard :
GB15979-2002
Application :
Hospital ICU
Certificate :
CE ISO
Function :
Making Oxygen
Power :
AC and DC (Optional)
TV :
20-2000mL
Alarms :
Dual Three Levels
Use :
Medical Hospital
Pressure Control :
Accurate Electronic
Port :
Guangzhou
Description

Crius V6 ICU Turbine Ventilation Respiratory Therapy for VC/PC Noninvasive PRVC Respiratory Machine Ventilators

Ventilation Settings
Ventilation Modes
• VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY • SIMV (VCV)+PSV, SIMV (PCV)+PSV, SIMV (PRVC)+PSV
• SPONT/CPAP+PSV
• BIVENT/APRV +PSV (optional)
• NIV/CPAP, NIV-T, NIV-S/T
Enhancements
• Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction • Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment
Parameters
Tidal volume (VT)
20-2000ml
Respiratory rate (RR)
1 to 80 bpm
Inspiratory time (Ti)
0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
Inspiratory flow (Flow)
0 to 100 L/min (pediatric), 0 to 180L/min (adult)
Inspiratory pressure (Pinsp)
5 to 70 mbar (or cmH2O)
Inspiratory pressure limit (Pmax)
80 mbar (or cmH2O)
PEEP
0 to 35 mbar (or cmH2O)
Tslope
0 to 2 s
O2 concentration (FiO2)
21 to 100 Vol%
Trigger sensitivity
0.5 to 20 L/min (Flow trigger),
-20 to 0 mbar (or cmH2O) (Pressure trigger)
I/E ratio
1/10 to 4/1
Apnea alarm time
10-60 seconds
Monitoring
• Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
• Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi • Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
Alarms
Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection, Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm
Dimensions (WxDxH)
375mm x 395mm x 430mm
Weight
17kg (37.5lbs)
Screen
12.1" TFT color touch screen
Product Description

ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen MachineICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine

Packaging & Shipping

ICU Breathing Ventilator Machine VC/PC PRVC Respirator Hospital Oxygen Machine
