What is an automatic hot stamping machine and what are its advantages over a manual hot stamping machine?
From the name, there is a different level between "automatic" and "manual". The automatic hot stamping machine adds digital control operations to the manual hot stamping machine, thereby getting rid of the production of manual operations. This mode not only improves the production speed, but also reduces unnecessary waste caused by human factors in the production process. Significantly reduce production costs. Compared with manual hot stamping machine, the price of automatic hot stamping machine is quite expensive.
Automatic hot stamping machine is a new type of hydraulic hot stamping equipment designed and developed to meet the needs of hot stamping in the printing industry. It is also a hot stamping machine with automatic hot stamping and hydraulic transmission. Automatic conveying, the up and down stroke can be adjusted arbitrarily, the equipment has good stability, large width and simple operation, so it is suitable for printing factories and individual hot stamping households to process and stamp various delicate papers, desk calendars, wall calendars, invitations, shoe boxes, etc. Leather, plastic, cloth and other handicrafts, because this machine is widely used, it is also a necessary equipment for printing, packaging, shoe leather and other industries.

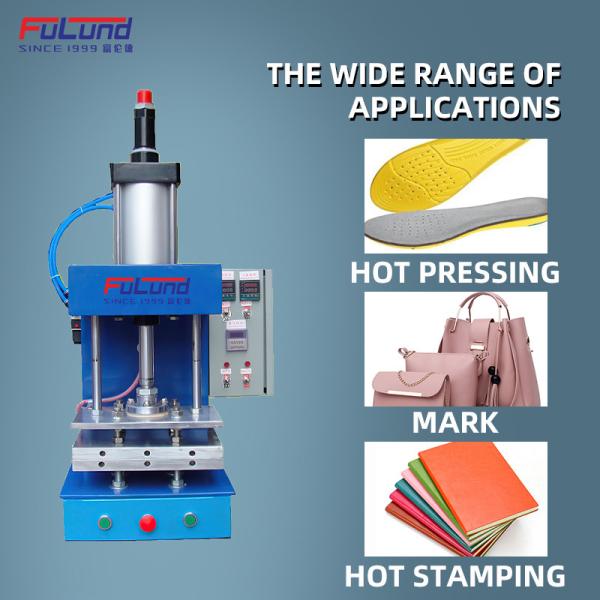

Features of heat press machine:

1. Powered by compressed air, the descending speed is adjustable

2. Mini table C type model

3. The adjustable stroke of the cylinder is easy to adjust, and the downward speed of the cylinder is adjustable

4. The mechanical start method has a double button switch (or optional foot switch) design

5. The cylinder is equipped with anti-rotation double guide rods to make the work more accurate; in addition, the output of the cylinder can be adjusted by the pressure regulating valve

6. The upper and lower molds have heating function (for hot pressing, stamping, branding, bronzing, printing, etc.)

7. Use pressure (air pressure): 4-7KG/square centimeter Maximum mechanical stroke: 120MM adjustable 50MM

8. Adjustable temperature: normal temperature -250 degrees, adjustable up and down independent temperature control Mechanical appearance: W400*D600*H500MM

9. Hot pressing time: 0.01S-99.99H can be adjusted arbitrarily; heating plate area: 200*300MM (size can be customized)

10. Power of the whole machine: 5KW Power supply voltage: 380/220V (single-phase) Mechanical weight: 70KG

Hot press setting machine parameters

1. Automatic constant temperature,

2. Automatic timing

3. Automatic counting

4. C frame construction

5. Double start switch
