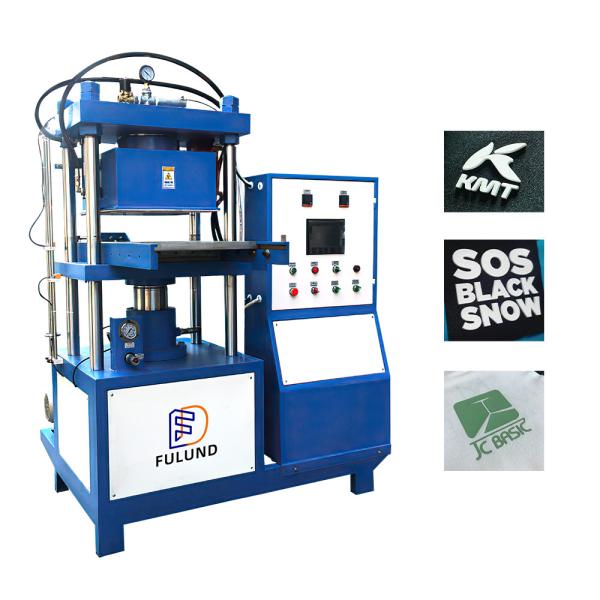

12kW Silicone Products Making Machine Automatic Ejection Vulcanizing Vacuum Curing Press
12kW Silicone Products Making Machine Automatic Ejection Vulcanizing Vacuum Curing Press
12kW Silicone Products Making Machine Automatic Ejection Vulcanizing Vacuum Curing Press
12kW Silicone Products Making Machine Automatic Ejection Vulcanizing Vacuum Curing Press
12kW Silicone Products Making Machine Automatic Ejection Vulcanizing Vacuum Curing Press
12kW Silicone Products Making Machine Automatic Ejection Vulcanizing Vacuum Curing Press
Specifications
Brand Name :
Fulund
Model Number :
FLD-B09-1
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
competitive
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100PCS/MONTH
Delivery Time :
7days
Packaging Details :
WOODEN CASE
NAME :
Flat vulcanizing machine
Automatic grade :
Semi-Automatic, Automatic, manual
Core Components :
PLC
Dimension(L*W*H) :
1400*2000*1600MM
Voltage :
AC380V±5%
Power (kW) :
12
Keyword 1 :
automatic ejection vulcanizing machine
Keyword 2 :
vacuum curing press
Keyword 3 :
belt vulcanizing press
Description

Vacuum curing press Automatic ejection vulcanizing machine

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Other name : rubber vulcanizing press , hydraulic vucanizer , hydraulic vulcanizing press . small curing press , large curing press . rubber daylight press

Type : lab vulcanizer , plate vulcanizer , frame vulcanizer , rubber tile press , vulcanizer for making rubber tire gasket ,large vulcanizer , conveyor belt vulcanizer. rubber tiles vulcanizing press . rubber mat vulcanizer. we can offer main machine and xuailiary also.

Application : lab use ,rubber & plastic vulcanizing , rubber tiles making , rubber gasket making , conveyor belt and so on .

Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM

400 * 400MM

400 * 450MM
host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
