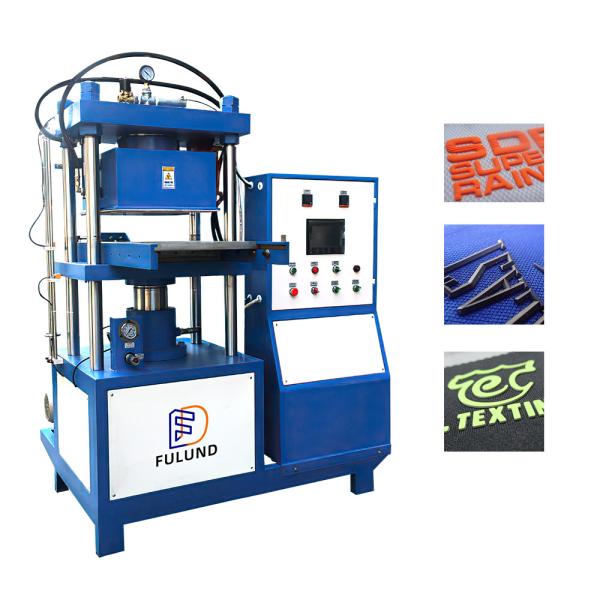

Vacuum Rubber Vulcanizing Press Machine For Silicone Gift Production
Vacuum Rubber Vulcanizing Press Machine For Silicone Gift Production
Vacuum Rubber Vulcanizing Press Machine For Silicone Gift Production
Vacuum Rubber Vulcanizing Press Machine For Silicone Gift Production
Vacuum Rubber Vulcanizing Press Machine For Silicone Gift Production
Vacuum Rubber Vulcanizing Press Machine For Silicone Gift Production
Specifications
Brand Name :
Fulund
Model Number :
FLD-B09-1
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
competitive
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100PCS/MONTH
Delivery Time :
7days
Packaging Details :
WOODEN CASE
NAME :
Flat vulcanizing machine
Automatic grade :
Semi-Automatic, Automatic, manual
Core Components :
PLC
Dimension(L*W*H) :
1400*2000*1600MM
Voltage :
AC380V±5%
Power (kW) :
12
Keyword 1 :
vulcanizing machine
Keyword 2 :
silicone vulcanizing machine
Keyword 3 :
hot pressing machine
Description

Supply Rubber Press Vulcanizing machine equipment for the production of silicone gift Vacuum vulcanizing machine

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Vacuum Rubber Vulcanizer Press machine is a kind of rubber press machine which has vacuum degas functioin.

So that there's no bubbles in the output rubber products.
Machine Making Procedure
1. Design and making drawing.2. Processing machine parts strictly as per drawings, every process must have checking and control by
worker themselves.
3. QC team checking quality and precision degree.
4. Installaton the rubber hot press machine.
5. Commissioning
6. Packing while book shipping.
7. Delivery, loading container.

  • Rubber Products Making Procedure

Up mold and down mold consist a pair mold. When use the machine make the production. 1. Put rubber raw material into every cavity
of the down mold.
2. Press the mold close button on the machine.
3. The machine will close the mold, gives pressure and temperature.
4. When the set work time get out, the machine will open the mold automatically.
5. Workers get the finished rubber products out.
6. Do the next working cycle.
If there are different shape rubber products to make, just change the mold is ok, the machine is all purpose, universal use.

Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM

400 * 400MM

400 * 450MM
host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
