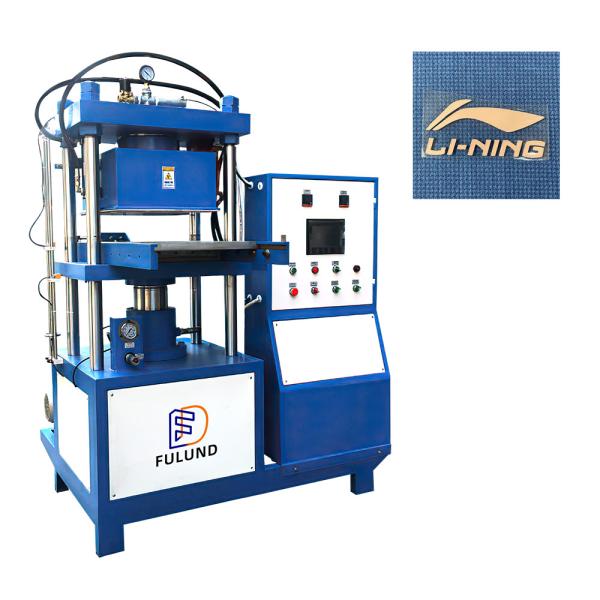

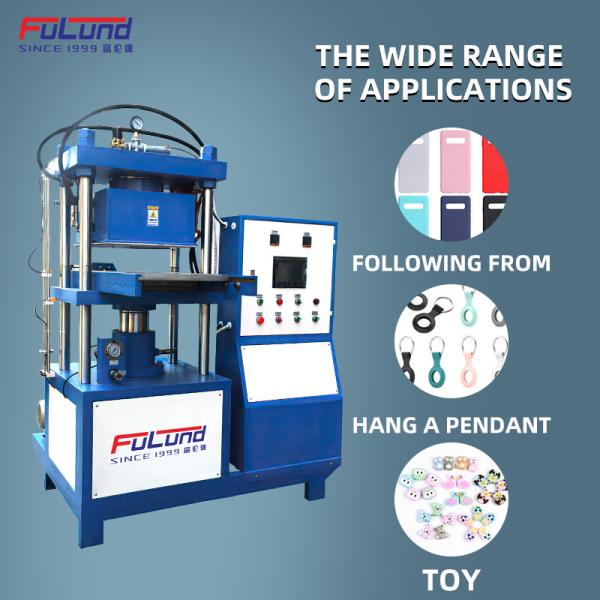

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
Specifications
Brand Name :
Fulund
Model Number :
FLD-B09
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
competitive
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100PCS/MONTH
Delivery Time :
7days
Packaging Details :
WOODEN CASE
NAME :
Flat vulcanizing machine
Automatic grade :
Semi-Automatic, Automatic, manual
Core Components :
PLC
Dimension(L*W*H) :
1400*2000*1600MM
Voltage :
AC380V±5%
Power (kW) :
12
Keyword 1 :
hydraulic vulcanizing press machine
Keyword 2 :
electric rubber vulcanizing press
Keyword 3 :
rubber mold vulcanizing press
Description

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.


Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

Matters needing attention in use:
1. Check the temperature control box settings (temperature setting, time setting, automatic manual setting)
2. Check whether the power supply is normal (when the three-phase phase is missing, the control box instrument does not reflect when the automatic is activated)
3. Whether the rack is evenly filled, and the vulcanizer is installed after the joints are closed. Pay attention to whether the bolts of the rack are tightened and whether the torque is even. (Observe whether the surface of the upper rack is flat, you can use a ruler to lay it flat on several racks to see if there is a gap.)
4. Whether the pressure is normal and there is no pressure relief phenomenon, if so, it needs to be supplemented until the vulcanization ends and the temperature drops to the specified temperature.

1. Automatic constant temperature

2. Automatic timing

3. Automatic counting

4. Four column structure

Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM

400 * 400MM

400 * 450MM
host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making

FuLund Flat vulcanizing machine is used for silicone folding bowl and baking cake mold making
