Nike Aj Adidas Hot press pressure Small hot press desktop type hot press Pneumatic hot stamping Hot pressing machine

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

What is a hot stamping machine
The hot stamping process is a special printing process without ink. The so-called hot stamping refers to the process of hot stamping anodized aluminum foil on the surface of the substrate under a certain temperature and pressure. The hot stamping machine is the equipment that completes the hot stamping process.

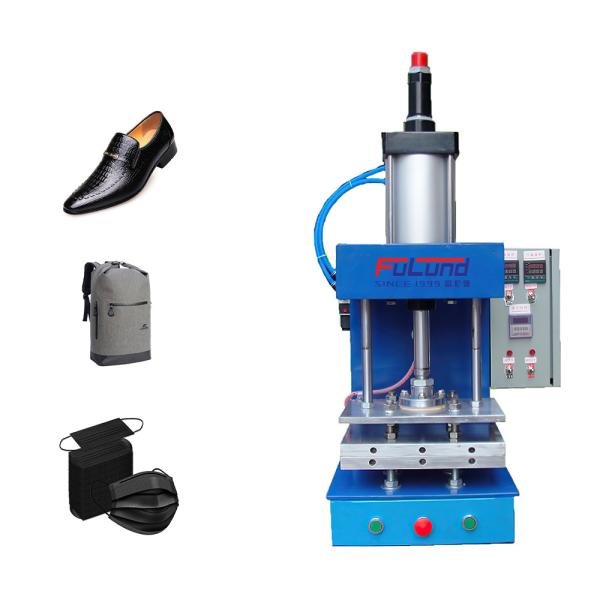

Features of heat press machine:

1. Powered by compressed air, the descending speed is adjustable

2. Mini table C type model

3. The adjustable stroke of the cylinder is easy to adjust, and the downward speed of the cylinder is adjustable

4. The mechanical start method has a double button switch (or optional foot switch) design

5. The cylinder is equipped with anti-rotation double guide rods to make the work more accurate; in addition, the output of the cylinder can be adjusted by the pressure regulating valve

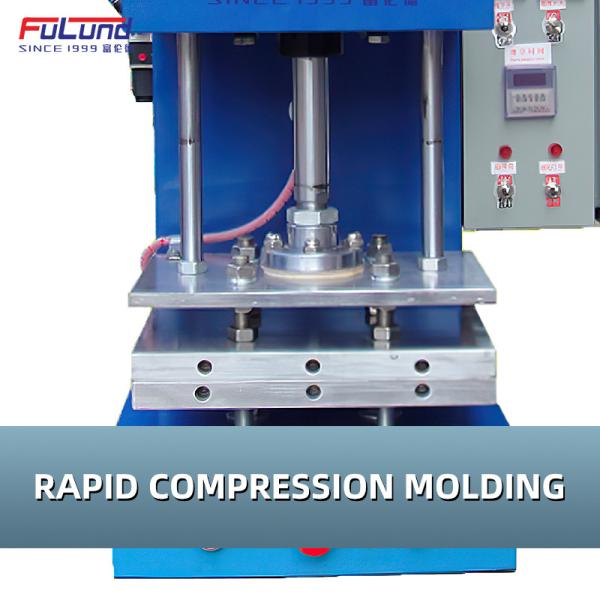

6. The upper and lower molds have heating function (for hot pressing, stamping, branding, bronzing, printing, etc.)

7. Use pressure (air pressure): 4-7KG/square centimeter Maximum mechanical stroke: 120MM adjustable 50MM

8. Adjustable temperature: normal temperature -250 degrees, adjustable up and down independent temperature control Mechanical appearance: W400*D600*H500MM

9. Hot pressing time: 0.01S-99.99H can be adjusted arbitrarily; heating plate area: 200*300MM (size can be customized)

10. Power of the whole machine: 5KW Power supply voltage: 380/220V (single-phase) Mechanical weight: 70KG

Hot press setting machine parameters

1. Automatic constant temperature,

2. Automatic timing

3. Automatic counting

4. C frame construction

5. Double start switch
