740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
Specifications
Brand Name :
Great Win
Model Number :
GW-099
Certification :
CE CNAS
Place of Origin :
CHINA
MOQ :
1set
Price :
USD1200-3850/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/year
Delivery Time :
20 work days
Packaging Details :
Wooden case
Standard :
GB/T20991-2007 5.5,ISO EN 20344:2004
horizontal motion stroke :
50mm
load on the blade :
load on the blade 5±0.05N
The blade cutting speed :
10cm/ s linear speed
The thickness of the blade :
3±0.3mm
The angle of the cutting :
30°-35°
The hardness of the blade :
740-800HV tungsten steel
Sampling :
5 sets, (blade direction of rotation and movement in the opposite direction)
Description

740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)

•Brief introduction:

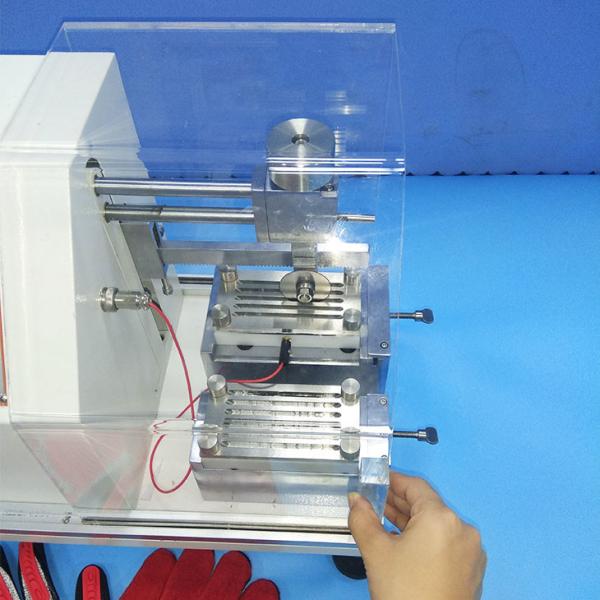

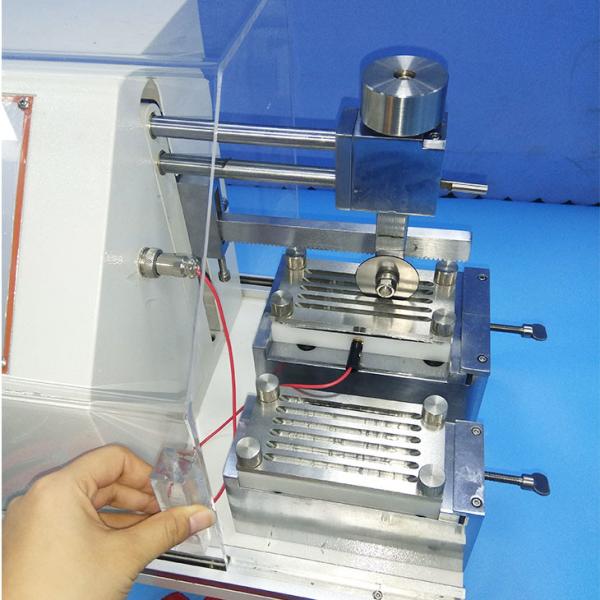

This tester is use to determine the protective capability of the safety glove against cutting.But,it is not available for safety glove made by hard material.A driving rotation found blade under a specified load cuts the glove held by the fixture of tester to and fro. After test ,compare it with its original statuses to get the results.

•Technical Specifications:

horizontal motion stroke
 50mm
load on the blade
 5±0.05N
The blade cutting speed
 10cm/ s linear speed
The thickness of the blade
 3±0.3mm
The angle of the cutting
 30°-35°
The hardness of the blade
 740-800HV tungsten steel
Sampling
 5 sets, (blade direction of rotation and movement in the opposite direction)
Counter
 LED display 0~999
Volume
 60*20*45cm
Weight
 59KG
Power
 1∮,AC220V,2A


•Standard for:
GB/T20991-2007 5.5,ISO EN 20344:2004.

740-800HV tungsten steel Electrical Glove Testing Machine , Durability Testing Machine AC220V(GW-099)
