220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
220V Electrical Glove Testing Machine , Cut Resistance Automatic Testing Machine
Specifications
Brand Name :
Great Win
Model Number :
GW-099
Certification :
CNAS
Place of Origin :
China
MOQ :
1
Price :
USD 2800~4400/Set
Supply Ability :
500Sets/year
Delivery Time :
20 work days
Packaging Details :
Wooden case
Payment Terms :
negotiation
Standard :
GB/T20991-2007 5.5,ISO EN 20344：2004.
horizontal motion stroke :
50mm
load on the blade :
5±0.05N
The blade cutting speed :
10cm/ s linear speed
The thickness of the blade :
3±0.3mm
The angle of the cutting :
30°-35°
The hardness of the blade :
740-800HV tungsten steel
Sampling :
5 sets
Description

Best price High quality Safety glove cutting resistance tester

Brief introduction:

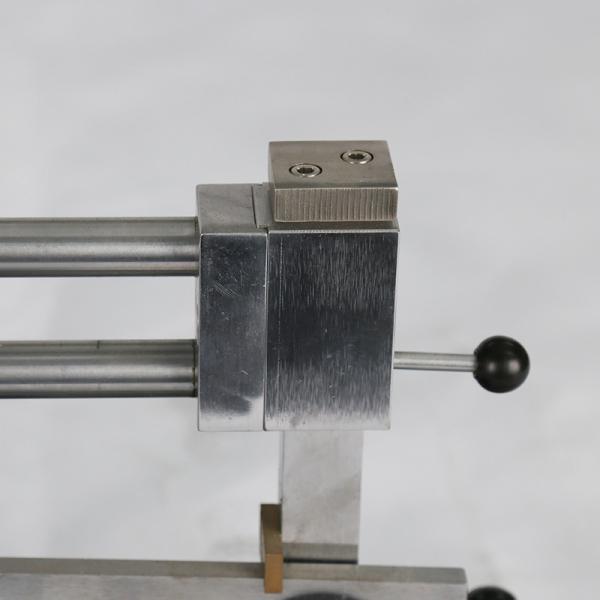

This tester is use to determine the protective capability of the safety glove against cutting.But,it is not available for safety glove made by hard material.A driving rotation found blade under a specified load cuts the glove held by the fixture of tester to and fro. After test ,compare it with its original statuses to get

Standard:

GB/T20991-2007 5.5,ISO EN 20344:2004.

Technical Specifications:

horizontal motion stroke 50mm
load on the blade 5±0.05N
The blade cutting speed

10cm/ s linear speed
The thickness of the blade 3±0.3mm
The angle of the cutting 30°-35°
The hardness of the blade 740-800HV tungsten steel
Sampling 5 sets, blade direction of rotation and movement in the opposite direction
Counter LED display 0~999
Volume 60*20*45cm
Weight 59KG
Power 1∮,AC220V,2A

FAQ:

What about the quality ?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

How to install and use the product?
The product is shipped with an operating instructions and video of English version.

After an order is placed, when to deliver?

Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.

Please be aware that our production lead times depend on specific items and item quantities.
