High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
High Durability Footwear Testing Machine 50 - 70R / Min Winding Speed
Specifications
Brand Name :
Great Win
Model Number :
GW-035
Certification :
CE CNAS
Place of Origin :
CHINA
MOQ :
1
Price :
USD1200-4450/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets/year
Delivery Time :
20 work days
Packaging Details :
Wooden case
Standard :
BS5131,QB/T1472
Fixture :
6PCSS
specimen :
80×10mm
Bending angle :
90°
Farmar containing the fixture :
(2±0.01kg)×6
Winding speed :
(60±10) r/min
Counter :
LCD,0~999999
Description

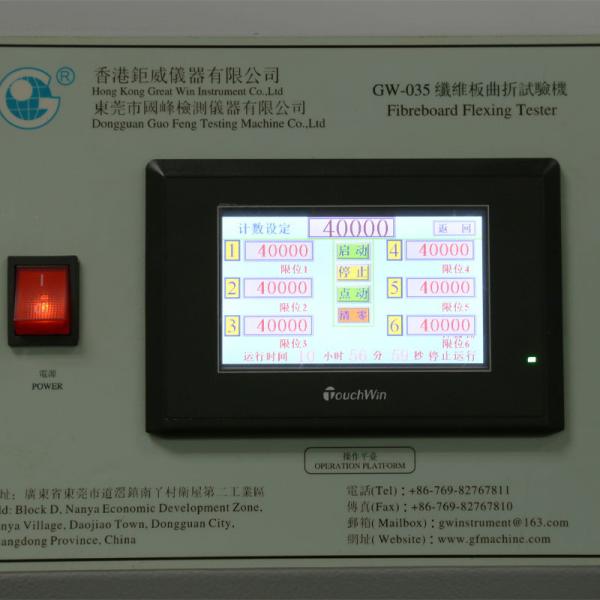

Fiberboard inflectional testing machine/fiberboard flexing machine(GW-035)



•Brief introduction:
This machine is used to test the leather shoes, casual shoes, walking shoes such as brigade state, in the bottom of fiberboard inflectional resistant qualities.Test specimen is continuous reciprocating the bent 90 degrees to the left and right, until the break, the number of times at the time of fracture to determine the resistance to bending of plate in index, used as the basis of comparison and selection of base plate.


•Technical Specifications:

Model GW-035 Fiberboard inflectional testing machine
Fixture: 6PCSS
specimen: 80×10mm
Bending angle: 90°
Farmar containing the fixture: (2±0.01kg)×6
Winding speed: (60±10) r/min
Counter: LCD,0~999999


•Standard for:

BS5131,QB/T1472

FAQ:

What about the product quality?

For our products,each machine must be carried out 100% quality calibration and test when delivery goods.With CE certificate,we are very confident in our products,and we will pack them with safety wooden case to protect the machine when transport oversea .

What about usage of the machine?

we will also give your professional guidance(Product operating manual and video),each products comes with a USB flash drive which have all the details.

What about warranty?

Guarantee one years( if the parts damage within one year, we can replace the part for free)

If customer need any technical support,we can help them solve their problem through email,video meeting.We also can provide door to door service,but customer need to bear the travel fees.

What about standards support?

We are strictly following different international standards such as EN,ISO,ASTM,AATC,JIS,GB ect,and had been recognized by SATRA,CSA international standard agency.
