15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
15ºC / Min Heating Rate Rubber Testing Equipments Without Rotor Rheometer
Specifications
Brand Name :
Great Win
Model Number :
GW-220A
Certification :
CE CNAS
Place of Origin :
CHINA
MOQ :
1set
Price :
USD1850-9000/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/year
Delivery Time :
20 work days
Packaging Details :
Wooden case
Standard :
GB/T16584 ISO6502
Heating rate :
15ºC/min
Control range :
Room temperature~200 ºC
Minimum display :
0.01ºC
Torque Range :
0--20NM
Minimum torque reading :
0.001NM
Number swing angle :
±0.5ºC ,±1ºC ,±2ºC (Standard angle 1 degree)
Swing angle :
100r/min(1.66HZ)
Description

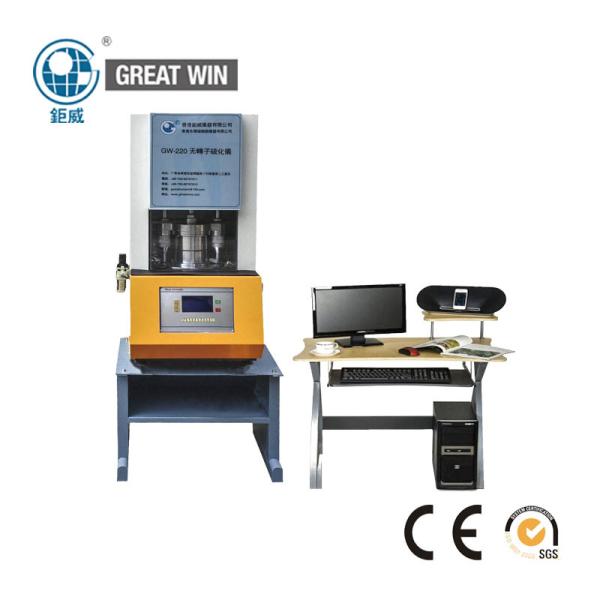

No Rotor Vulkameter Rehometer(GW-220A)

•Brief introduction:
Vulcanization tester is controlled rubber quality rubber processing industry,Rapid testing and rubber basic research the most widely used instrument,Rubber formulation optimized combination provides accurate data,Can accurately measure the scorch time,Cure time,Curing index and the maximum,Minimum torque and other parameters.

•Technical specifications:

Heating rate
 15ºC/min
Control range
 Room temperature~200 ºC
Minimum display
 0.01ºC
Torque Range
 0--20NM
Minimum torque reading
 0.001NM
Number swing angle
 ±0.5ºC ,±1ºC ,±2ºC (Standard angle 1 degree)
Swing angle
 100r/min(1.66HZ)
Weight
 244kg
Voltage
 220V
Power
 1000W


•Standard for:
GB/T16584 ISO6502

FAQ:

What about the product quality?

For our products,each instrument must be carried out 100% quality calibration and test when delivery goods.With CE certificate,we are very confident in our products,and we will pack them with safety wooden case to protect the machine when transport oversea .

What about usage of the instrument?

we will also give your professional guidance(Product operating manual and video),each products comes with a USB flash drive which have all the details.

What about standards support?

We are strictly following different international standards such as EN,ISO,ASTM,AATC,JIS,GB ect,and had been accepted by SATRA,CSA international standard agency.

What about warranty?

Guarantee one years( if the parts damage within one year, we can replace the part for free)

If customer need any technical support,we can help them solve their problem through email,video meeting.We also can provide door to door service,but customer need to bear the travel fees.
