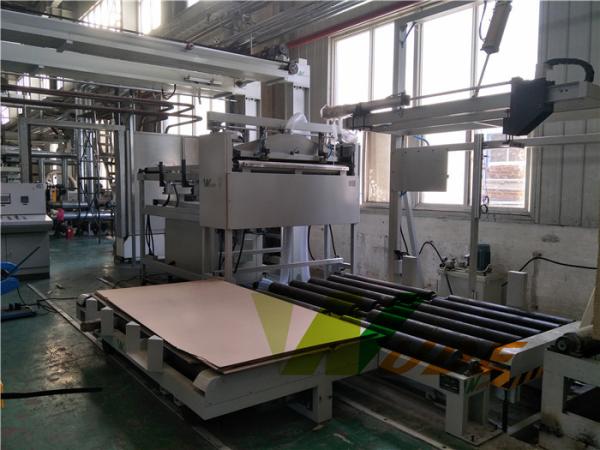

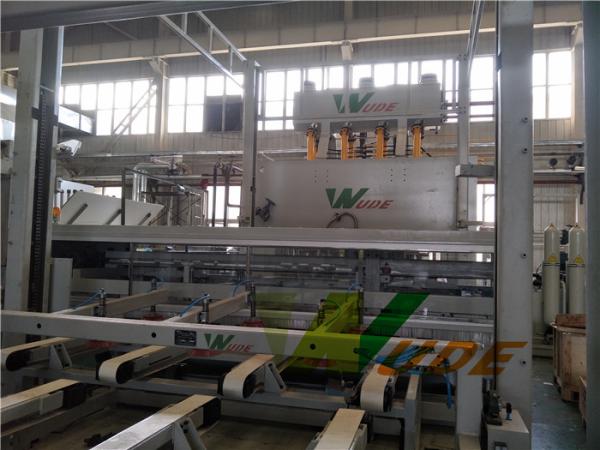

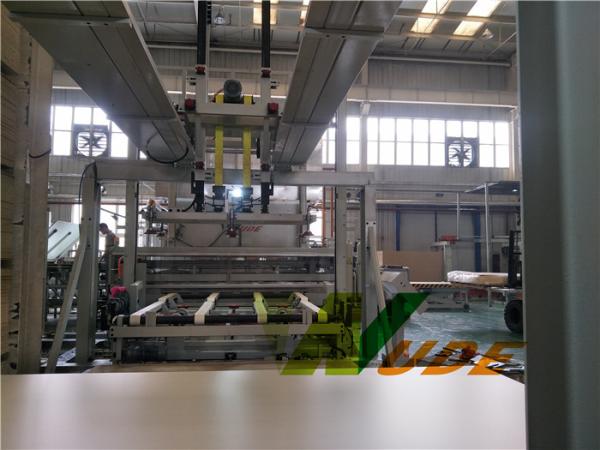

WDT-JSL Basic Short Cycle Laminating Press (hot press) Production Line

Features and Advantage

Suitable for Production of Small Size Boards. Automatic Feeding & Stacking&Brushing&Trimming, Greatly Reducing Labor Intensity, High Performance-Price Ratio,Low Investment and Quick Effectiveness for Small and Medium Enterprises. This Line Need Only 2 or 3 Worker.

• Short Preparing Time: about 12s

High production capacity: 90-100 Sheets/h(Calculated Based on: Pressure Holding Time is 24s, The Thickness of Raw Board is 16mm/18mm)

• The Thermal Oil Temperature of Hot Press is Controlled Automatically

If The Oil Temperature is 30℃-40℃,The Control System Will Turn Off The Chiller Automatically; If The Oil Temperature is Over 40℃,The Control System Will Turn on The Chiller Automatically.

Description:

1. Raw Board: Particle Boards, MDF Boards and HDF Boards. Product: Furniture Board,Laminate Flooring.

2. Overlaying Materials: Melamine Paper, Al₂O₃ Abrasion Resistant Paper.

3. Standard Sizes: 4’×8’, 4’×9’, 5’×8’, 6’×8’, 6’×9’.

*Note: If User Has Special Need, We Can Design Machine and The Whole Line According to User’s Need.

• Most of Device are Used International Brand. The Whole Line Runs Automatically Except Laying Paper and Changing Caul Plate.Taking and Stacking the Protect Board are Also Automatic. The Operation is Convenient and Easy.
• Each Operation Cabinet can Supply Full-automatic, Semi-automatic and Manual Control. It is Equipped With Uninterruptible Power Supply, So It Could Guarantee the PLC,HMI and All Magnetic Valve of Hydraulic System in Normal Working When the Equipment is Power Failure Suddenly and Avoid the Damage for Equipment.
• The Hot Press is Assembly Type, It is Machining after Welding to Ensure the High Accuracy and Even Pressure.
• Loading and Unloading Machine Use Servo Motor Driving, Its Speed is Fast and Stable.
• Stacking Carrier Use Servo Motor Driving to Ensure Stacking Neatly.
• The Cylinder Sealing is Used of Combination Seal. The Sealing is Reliable and Extends the Using Life. The Normal Using Life is 3-5 Years, Many Customers Use More Than 5 Years.
• Trimming Machine Works Stable.

Layout Drawing of WTD-JSL Basic Short Cycle Laminating Press
