Mounting Frame Sf For Extra-Flat And Super-Flat Steel And Acrylic Tubs

Product Features:

1.Adjustable:

Dimensions:70 x 70 cm - 120 x 120 cm

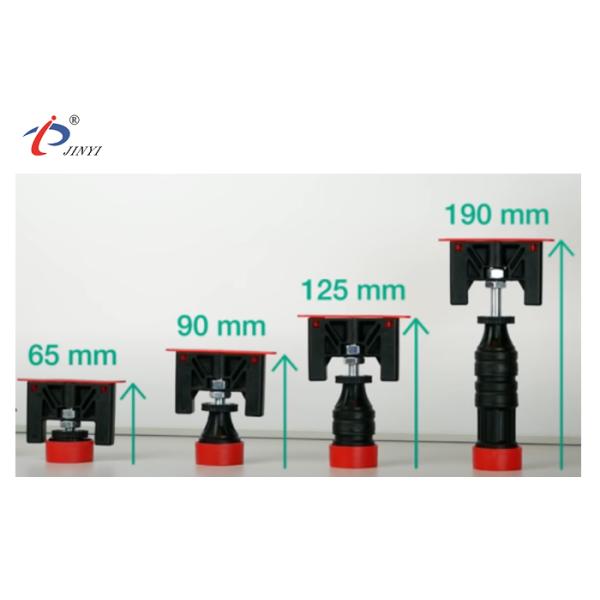

Installation height:65 - 190 mm

2.Suitable for:

For extra-flat and super-flat steel and acrylic tubs

3.Easy installation:

All assembly steps are easy from above and, thanks to the well thought-out concept, offer professional and stable installation, the sf mounting frame for acrylic bathtubs perfectly evens out any unevenness on the underside of the bathtub rim.

4.Stable:

The support is stable over the long term and highly resilient that optimizes assembly and leaves no room for nasty surprises.

Description:

Mounting frame sf for extra-flat and super-flat steel and acrylic tubs, The new mounting frames sf offer an optimal and quick installation of extra-flat and super-flat steel and super-flat acrylic tubs are in trend, therefore the sf mounting frames are super-flat and ideally positioned for installations from 65 mm installation height. All assembly steps are easy from above and, thanks to the well thought-out concept, offer professional and stable installation, the sf mounting frame for acrylic bathtubs perfectly evens out any unevenness on the underside of the bathtub rim. the spring-loaded pins of the central rim supports are pressed against the edge of the bathtub, and automatically adjust to any unevenness fixed by injected 2-component epoxy resin adhesive. the support is stable over the long term and highly resilient that optimizes assembly and leaves no room for nasty surprises due to an unstable shower tray for steel tubs from 700x700 mm to 1200 x 1200 mm for the most common

Scope of delivery:

1. 8 height-adjustable screw feet,
2. 1 EasyLift bathtub foot separately for central support,
3. 4 bottom straps for fixing with fastening material,
4. Adapter sleeves 25 mm and 50 mm with screw thread,
5. 1 corner cross member for variable installation of the bathtub foot in the corner area in special installation situations
