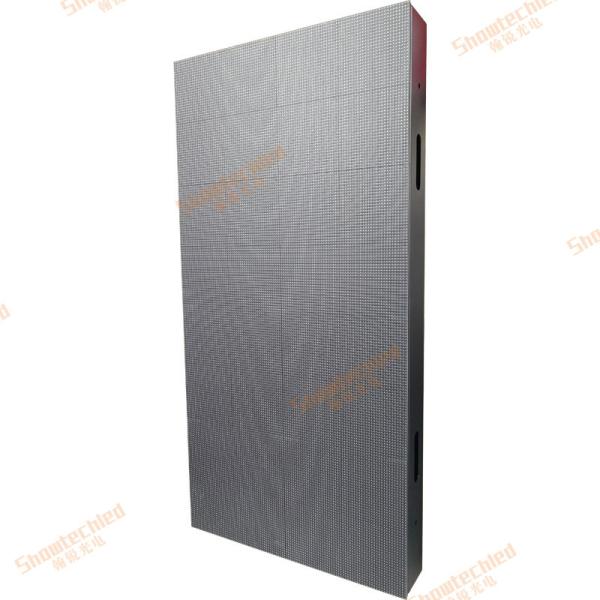

FM Series -- Showtechled Indoor Fixed LED Display Full Color HD Video Media LED Screen Front Maintenance
(1) Description of Indoor Fixed Full Color HD Media LED Display:
1. Cabinet size: We use iron cabinet.The cabinet size is divided into standard size and customized size.The standard size is the size of our company's standard cabinet,The customized size is the size required by the customer and the cabinet size designed in combination with the size of our module;
2. Use environment and maintenance methods: It can be used in various conference rooms, museums and various indoor places, Front maintenance series. Can be installed and maintained quickly;
3. High refresh rate: The refresh rate reaches 1920/3840Hz(optional), and there will be no delay or mosaic when playing video. Make videos and pictures get a perfect display effect;
4. The cabinet has good heat dissipation and low power consumption.
(2) Quick Detail:
Pixel pitch: 3mm
Pixel density: 111111dots/㎡
Module size: 192mm*192mm
Refresh rate: ≥1920Hz
Viewing angle: 120°(horz.), 120° (vert.)
Place of Origin: Shenzhen,China
Maintenance type: Front maintenance
Life Span: 100,000Hours
(3) Specifications:
Module Parameter | ||
1 | Item | FM3 |
2 | Pixel Pitch | 3.0mm |
3 | Pixel density | 111111 dots/㎡ |
4 | LED configuration | SMD2020 |
5 | Module size | 192(W)*192(H)*12(D)mm |
6 | Module resolution | 64(W)*64(H) |
7 | Module weight | 0.5Kg |
8 | Scanning Mode | 1/16 |
9 | IC model | MBI5124 |
Cabinet Parameter | ||
1 | Cabinet resolution | 256(W)*256(H) |
2 | Cabinet size | 768(W)*768(H)*60(D)mm |
3 | Cabinet material | Iron |
4 | Cabinet weight | 35kg |
5 | Module number | 4*4 |
6 | Brightness | 1000cd/㎡ |
7 | Viewing angle | 140°(horz.), 140° (vert.) |
8 | Optimal View Distance | 3m-30m |
9 | Gray scale | 14(bit) |
10 | Max Power Consumption | 420W/㎡ |
11 | Avg Power Consumption | 140W/㎡ |
12 | Work Voltage | AC190-264V |
13 | Frame Frequency | 60Hz |
14 | Refresh rate | 1920Hz |
15 | Operation System | Win7&XP |
16 | Control Mode | Synchronization with PC |
17 | Operating Temperature | ( -20℃~+50℃ ) |
18 | IP Rating(Front/Rear) | IP31 |
19 | maintenance type | Front maintenance |
20 | Life Span | 100,000Hours |
Application:
Widely used in indoor squares, stadiums, hotels, conference rooms, offices, hospitals, schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for LED display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15-25 days for Sample preparing, 25-35 working days for mass production.
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-15 days to arrive. Airline and sea shipping also optional.
Q5: How is your after sales service?
A: Once you choose to cooperate with us, we will arrange specially-assigned person if there is any question or problem. We also offer 24-hour online service to help you solve problems.
