Specifications
Brand Name :
HYF
Model Number :
HYF
Certification :
ISO, SGS, etc.
Place of Origin :
China
MOQ :
1000KG
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
3000Ton/Month
Delivery Time :
15-20 work days
Packaging Details :
Standard Export Package
Material :
Shrink Sleeve Material
Thickness :
30mic-70mic
Width :
200-1200mm
Length :
3000m or 4000m
Feature :
Good Flatness
Use :
Eco-Friendly Shrink Sleeve
Description

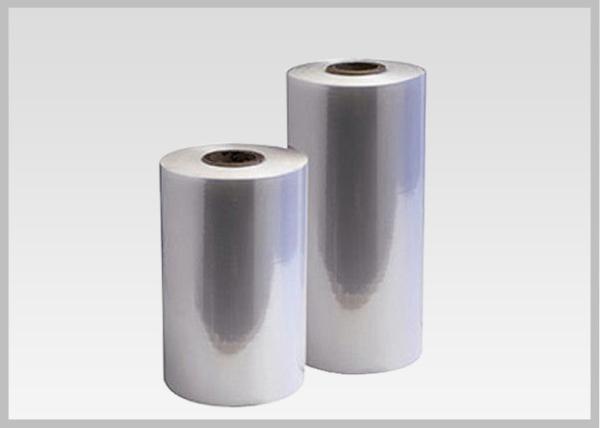

Eco Friendly High Clairty Shrink Film Rolls For Cans Sleeve labels


1. Product Description

PETG – Polyproplyene Terephthalate Glycol (PETG) is a high density film with a high strength ratio and excellent clarity. While PETG is the most expensive and most heat resistant shrink sleeve material, they are the most scuff resistant, have a higher gloss, and also have a higher shrink percentage. Additionally, PETG is pasteurisable and can be recycled, an often-sought feature in today’s market.

2. Feature


1) High clarity


2) Shrink up to 78%

3) Chemical resistance


4) Recyclable


5) Less MD growth than PVC

3. Technical Data Sheet

No Test Item UNIT Standard Test Result Decide
1 (Average thickness deviation) μm ±3 0 Qualified
2 TENSILE STRENGTH (MD) MPa ≥42 65.8 Qualified
(TD) MPa ≥142 231
3 ELONGATION (MD) % ≥300 591 Qualified
(TD) % ≥35 55
4 Elasticity Modulus (MD) MPa ≥1500 3269 Qualified
(TD) MPa ≥3000 7370
5 Heat Shrinkage (MD) % ≤5.0 2.3 Qualified
(TD) % 70~80 78
6 Haze % ≤7.0 2.2 Qualified
7 C.O.F (IN/OUT) dynamic friction coefficient / ≤0.50 0.47 Qualified
8 Wetting Strength mN/m ≥38 ≥38 Qualified
9 Density g/cm3 1.32±0.3 1.46 Qualified

PVC-HYF286.pdf

3. Technical Characteristics

1) Good transparency and brightness.

2) High level of thermal shrinkage.

3) Special for high performance lines.

4) Suitable for any environment and climate.

5) Resistant to UV rays, special to protect the stored product and the weather or in its transport.

4. Application

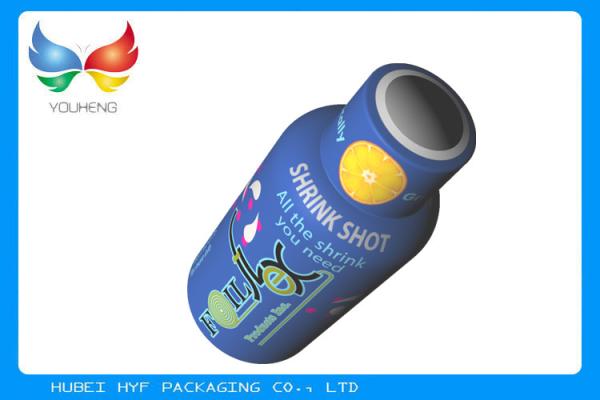

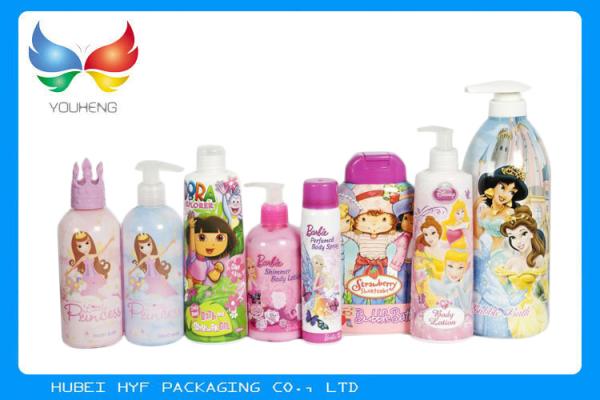

1) Full- or partial-body shrink sleeves


2) Full- or partial-body roll sleeves


3) Multi-packs


4) Tamper-evident bands


5) Wine capsules and disk plates


6) Pressure-sensitive shrink labels

Eco Friendly High Clairty Shrink Film Rolls For Cans Sleeve labels / Heat Activated Shrink Film

5. Shrink Sleeve Application Process


Manual – In this process, custom printed shrink sleeve labels are manually applied to containers before shrinking. This method is ideal for short runs and sampling prototype programs.

Automatic – Through an automatic application process, conveyors and other assorted machines are used to slip the shrink film material over the containers and then process them through the heat-shrink area for the form-fit that shrink sleeves create.

6. FAQ

1) Q: Do you accept OEM?
A: Yes, we do.


2) Q: What's your delivery time?
A: It’s according to the quantity of the order. Normally it is between 5 and 20 days.


3) Q: What's your production capacity?
A: About 4000 tons per month.


4) Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, or customized if it is acceptable.


5) Q: Do you provide free sample? And how many days it will take?
A: Samples for testing are available and free. The freight for sample delivery is at receivers's side. But to be refunded by deducting from the right coming order automatically
