220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box
220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box
Specifications
Brand Name :
ZSON
Model Number :
ZSL-7585CL + T-7040
Certification :
CE
Place of Origin :
China
MOQ :
One Set
Price :
Negotiated
Payment Terms :
T/T, L/C
Supply Ability :
1 Set: 10 Days / 2-5 Set: 15 Days / 6-10 Set: 25 Days / >10 Set: Negotiated
Delivery Time :
10 Working Days
Packaging Details :
Standrad Wooden Case For Export
Power Supply :
220V/380V 50-60Hz 3 Phase
Wrapping ability :
20M / Min
Control System :
Programmed Control, Mitsubishi PLC
Pckaging Range :
L +H ≤ 800MM, W +H ≤ 620MM, H ≤ 260MM
Energy Consumption :
Energy saving
Application :
Book, Carton, Box, Ladder
Customized :
Parts Brand / Logo / Voltage
Description

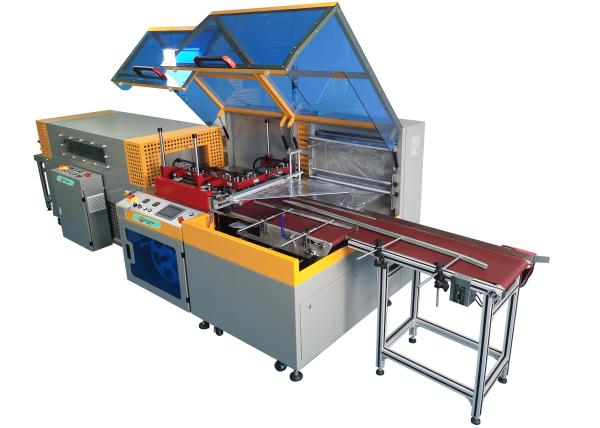

Automatic L Bar Thermal Shrink Packing Machine Vertical Sealer Wrapping


Product Features

ZST-7585CL is standard automatic vertical L bar sealer which is widely used in the packaging assembly line of mass production with high efficiency.

L sealing bar is made by vertical up and down driving system. The surface of sealing is even. What’s more, the vertical sealing can avoid the crease and messy sealing line to achieve the perfect sealing effect, while allow for the sealing line to be in the center of the package.

Controlled via advanced PLC controller and HMI, the sealing system can give the continuous and smooth sealing order without replacement.

Variable infeed and ourfeed conveyor speed make the machine ideal for both manual and automatic feeding.

Using original Omron digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. Meanwhile, avoid to hurt the product for imprecise temperature.

Two sets of horizontal sensors automatically compensate for item length change, meanwhile vertical sensors prevent from accidental cutting.

Separate motor is used to control the auto winding device, which make the waste film is not too loose or too tight to crack. The waste film can be easily removed.

Film up-down synchronization mechanism specially designed to correct the deviation film. Film micro perforation during the film unwinding to make air escape rapidly and get good shrinking effect. Film-roll holder at the bottom of the machine guarantee the machine chassis stability.

Different brands of shrink film is acceptable, PE film as an option.

T-6030 shrink tunnel adopts imported double recycling motors, so hot air in the tunnel is uniform to make shrink effect more beautiful. The U type stainless steel heaters guarantee service life. The chain conveyor made of solid steel covered with imported silicone tube is very durable. Besides the chain conveyor, we also have different conveyors according to products shape and material. Shrink temperature, conveyor speed and air volume are all adjustable.The special window is anti-fogging and makes shrinking preocess visible. The large wind cooling system can make the packing of product fixed and unchangeable after shrinking. The aluminum table can be used in the back of wind cooling system which makes sure the product will not drop. This shrink bundler wraps of boxes, photo frames, books, brochures, laundry etc.



Warranty and Support

1. The whole machine 12 months warranty.
2. Before shipment, machine will be tested and adjusted by our technicians to ensure you can install and operate easily.
3. Our engineers will guide you to install by the video call.
4. Instruction mannual and video will be provided.
5. Quick responses and feedback while needed.



Products Details

Products Name Full Auto L Sealer Tunnel Shrink Wrapping Machine Model Number ZSL-7585CL + T-7040
Applicable Industries Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company Usage Food, Beverage, Commodity, Medical, Chemical, Machinery Hardware, APPAREL, Textiles, Box, Book, Food, Cosmetics, Electronic Product, Etc.
Driven Type Electric Material Carbon Steel + Powder Painting
Core Components PLC, Motor, Bearing, Frequency Converter Automatic Grade Automatic
Place of Origin Guangdong, China Machine Langue Optional
Air Compressing 5.5-8.5kg/cm3 Warranty 1 Year, 1 Year except consuming spare parts
After-sales Service Provided

Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

 After Warranty Service

Video technical support, No service, Online support, Spare parts, Field maintenance and repair service



Technical Specification

Model
Name

ZSL-7585CL
Vertical Sealer Machine

T-7040
Thermal Cycle Visual Shrink Machine
Power Source AC220V 3.5KW AC380V 20KW
External Dimension 2360*1790*1390MM L2000*W1250*H1280MM
Cutter size / Tunnel size 750*850MM L1500*W700*H350MM
Temperature 0-230°C Adjustable

0-200°C
Adjustable Wind Direction And Speed
Film POF, PE, PVC POF, PE, PVC
Packing Size W + H ≤ 620mm, L + H ≤ 800mm, H ≤ 620mm, L ≥ 100mm W ≤ 600mm H ≤ 300mm, W + H ≤ 680mm
Packing Speed 15 - 40 Pcs / Minute 0-30 Meters / Minute


Product Display

220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box

220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box

220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box



220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box


220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box

220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box

220V 3.5KW Vertical Heat Sealer , Automatic Shrink Wrap Machine For Candy Box

Packaging And Delivery

1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Port Guangzhou or Shenzhen
