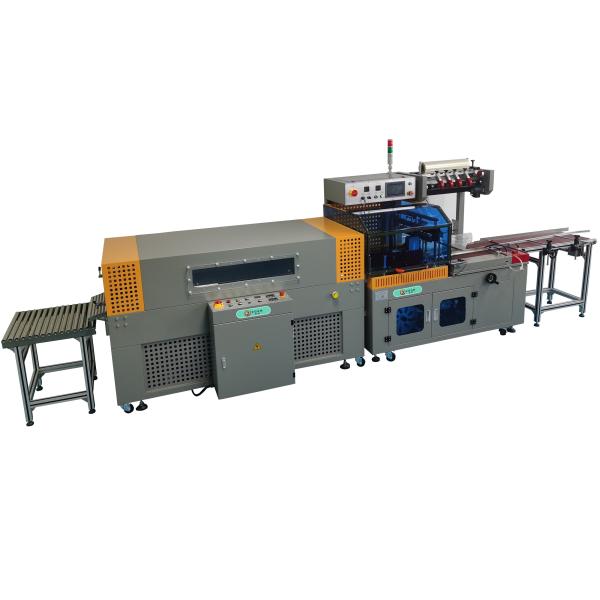

Automatic High Speed Side Sealing Shrink Packaging Wrapping Machine

Product Feature

These machine can fold film ,seal sides and shrink film to finish the package.The temperature and time can be adjusted according to operation needs. Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, pharmaceutical, metal industries etc, imported PLC automatic program control, easy operation, safety protection and alarm function, and effectively prevent incorrect, packaging, Equipped with imported horizontal and vertical detection photoelectric, easy to switch selection. It has the function of contact, specially designed for packing small size products. The machine can be connected with the production line, no need additional operators.

The side sealer have emergency stop switch that is at side of working table.the worker can push the switch in time once wrong operation.

1. conveyor controlled by a frequency inverter to adjust conveying speed
2. shrinking process visible through a transparent window
3. Upper tunnel cover open able for cleaning and maintenance
4. Infeed powered conveyor belt and out feed conveyor belt are optional upon request.

5. the side sealer with 2pcs of protection photoelectricity that the main function is protect worker or product damage when machine wrong action.when have person touch the knife or product has been cutted by knife that the metal will be lift.then the machine will stop working immediately after the photoelectrity got signal

Product Description

Product Display





















Standard Safety Performance

1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.
2. There are protective devices or warning signs at unsafe locations of the machine.
3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.


Packaging Details

1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Loading Port: Guangzhou or Shenzhen
