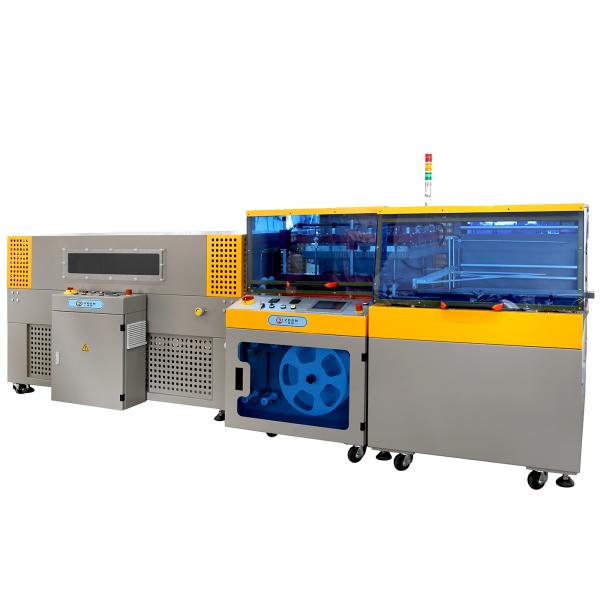

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control
CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control
Specifications
Brand Name :
ZSON
Model Number :

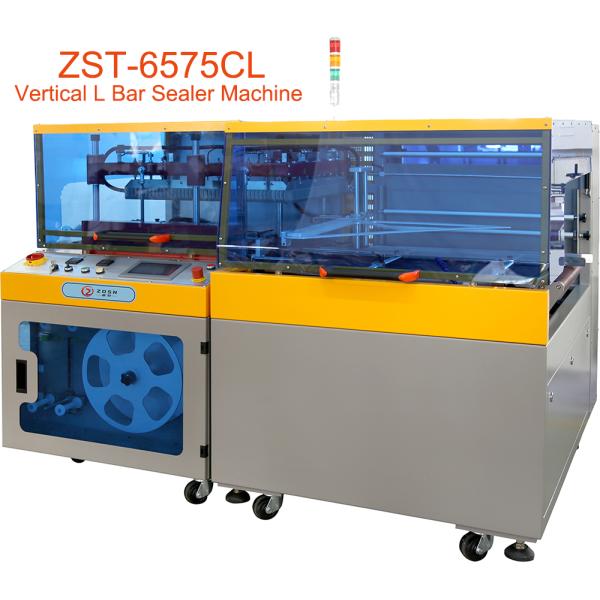

ZSL-6575CL + T-5025
Certification :
CE
Place of Origin :
China
MOQ :
One Set
Price :
Negotiated
Supply Ability :
1 Set: 10 Days / 2-5 Set: 15 Days / 6-10 Set: 25 Days / >10 Set: Negotiated
Packaging Details :
Standrad Wooden Case For Export
Power :
220V/380V 50-60Hz 3 Phase
Packing Speed :
20M / Minute
Lead Time :
12 Working Days
Dimension Scope :
L +H ≤ 800MM, W +H ≤ 620MM, H ≤ 260MM
Link line :
Mechanical arm / Stetch Wrapping Machine
Application :
Electronic Product, APPAREL, Commodity, Etc.
Service :
1 Year Warranty
Customized :
Logo / Parts Brand / Votage / Size
Description

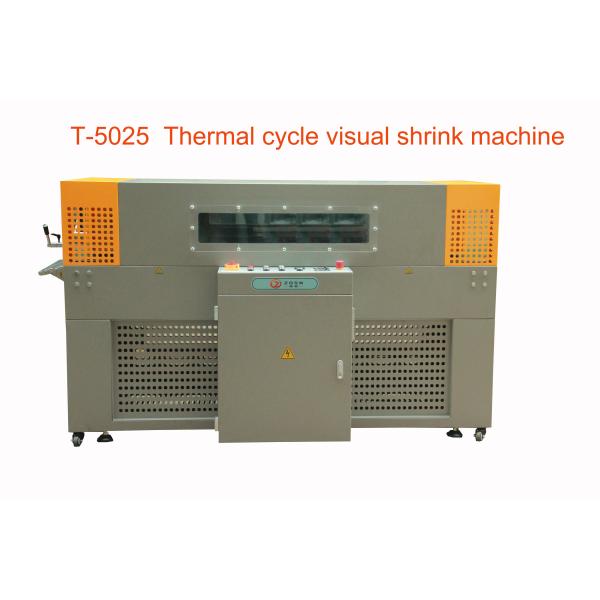

Automatic Heat Shrink film Wrapping Machine Heat Tunnel Tube

Product Feature

Fully automatic up and down hot shrinkable film packing machine is new fully automatic hot shrinkable film packing machine. It is a high level of automatic specialization and high working efficiency.

1. Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution.

2. Equipped with imported photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items.

3. Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the waste film automatically rolling.

4. Multiple photoelectric protection detection function, more safe and efficient to use.

5. International famous electrical components, green cutting process, so that the seal straight and neat.

6. The advanced Japanese Mitsubishi PLC programmable controller is easy to operate and has the function of safety protection and alarm.

7. Omni-directional safety protection measures (such as sealing and cutting parts with Plexiglas protective cover, etc.), put an end to man-machine injury accidents.

8. Automatic feeding, length can also be automatically adjusted by the combination of electric eye and timer. Equipped with induction motor, automatic waste winding.

9. The sealing line can be easily adjusted in the middle of the product.

10. Suitable for packaging different shapes of products, single or combination packaging.

Product Display

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

CE Certified Heat Shrink Wrap Machine Film Wrapping PLC Control

Features And Brands

Parts Particulars Technical parameter description
Power 380V/1PH/50Hz ≤3.3KW

Sealing system

 Thermal source Metal strip heat pipe
Sealing knife Stick resistant and temperature resistance of copper seal knife plated with Teflon on surface
Temperature control of seal knife

Temperature controlled in 100-260℃ by digital display temperature controller and thermal induction

Brand: OMRON
Sealing size

Adjusted the height of the sealing knife electrically

Maximum width dimensions: width+height=450mm

Maximum width dimensions:Length+Height=550mm

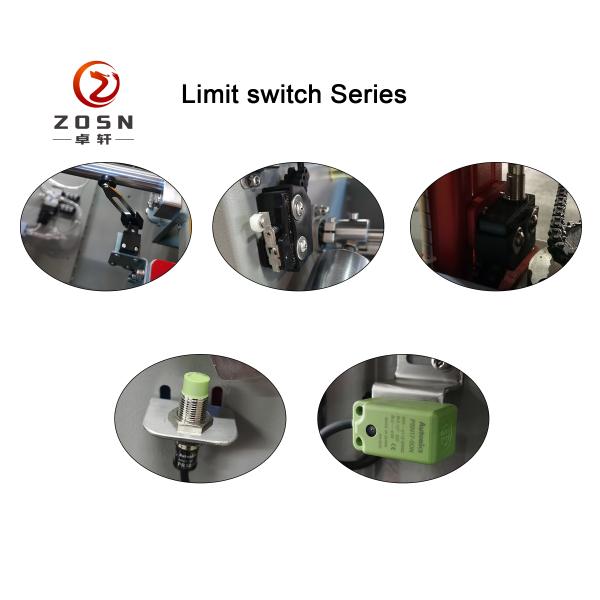

Proximity switch

CNOMR,

Protect the sealing knife and products.
Cylinder Brand: SHAKO, ensure the sealing is firm and accurate

Delivery system

 Belt High-speed and wear-resistant antistatic conveyor belt
Motor Brand: VTV Ensure delivery smoothly
Test system

The products of delivery is detected by photoelectric accurately and sensitively

Brand: OMRON
Bearings NSK,NMB

Collection system

 Motor Brand: YARSH Ensure delivery smoothly
Inductive switch

Accurately control the time of collect edge film

Brand: AUTONICUS
Feeding film system Motor YARSH
Inductive switch

Accurately control the length of feeding film

Brand: AUTONICUS
PLC,HMI Brand: Mitsubishi, Samkoon

Relay

Switch button

Taiwan Stone

Germany Mueller
Temperature controller OMRON
Hole puncher Seven groups of aluminum alloy multi-position hole puncher and the position can be adjusted freely. The device is designed to rapidly expel air from the film bag as it shrink
Mechanism material The shell is dusted with carbon steel, the thickness not be less than 1mm, the key parts are made of stainless steel plate and aluminum profile. Machine structure is solid
Machine dimension

Features And Brands

Parts Particulars Technical parameter description
Power 380V/1PH/50Hz ≤3.2KW

Sealing system

 Thermal source Metal strip heat pipe
Sealing knife Stick resistant and temperature resistance of copper seal knife plated with Teflon on surface
Temperature control of seal knife

Temperature controlled in 100-260℃ by digital display temperature controller and thermal induction

Brand: OMRON
Sealing size

Adjusted the height of the sealing knife electrically

Maximum width dimensions: width+height=450mm

Maximum width dimensions:Length+Height=550mm
Proximity switch

CNOMR,

Protect the sealing knife and products.
Cylinder Brand: SHAKO, ensure the sealing is firm and accurate

Delivery system

 Belt High-speed and wear-resistant antistatic conveyor belt
Motor Brand: VTV Ensure delivery smoothly
Test system

The products of delivery is detected by photoelectric accurately and sensitively

Brand: OMRON
Bearings NSK,NMB

Collection system

 Motor Brand: YARSH Ensure delivery smoothly
Inductive switch

Accurately control the time of collect edge film

Brand: AUTONICUS
Feeding film system Motor YARSH
Inductive switch

Accurately control the length of feeding film

Brand: AUTONICUS
PLC,HMI Brand: Mitsubishi, Samkoon

Relay

Switch button

Taiwan Stone

Germany Mueller
Temperature controller OMRON
Hole puncher Seven groups of aluminum alloy multi-position hole puncher and the position can be adjusted freely. The device is designed to rapidly expel air from the film bag as it shrink
Mechanism material The shell is dusted with carbon steel, the thickness not be less than 1mm, the key parts are made of stainless steel plate and aluminum profile. Machine structure is solid
Machine dimension 2160*1690*1380 mm(ZTL-6575CL)；
Packaging speed The max speed of the delivery belt is 18 meters per minute, The number of packages depends on the size of the products
Air pressure 6 BAR
Surface treatment Chromium plating on the surface of each corrosible structural material, the surface of aluminum alloy is oxidized.

Standard Safety Performance

1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.

2. There are protective devices or warning signs at unsafe locations of the machine.

3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.

；
Packaging speed The max speed of the delivery belt is 18 meters per minute, The number of packages depends on the size of the products
Air pressure 6 BAR
Surface treatment Chromium plating on the surface of each corrosible structural material, the surface of aluminum alloy is oxidized.

Standard Safety Performance

1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.

2. There are protective devices or warning signs at unsafe locations of the machine.

3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.

Packaging And Delivery

1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.

5. Port Guangzhou or Shenzhen
