Specifications
Brand Name :
South
Model Number :
NTS-332R10
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, , MoneyGram
Supply Ability :
10000 per year
Packaging Details :
With Standard Export Packing Way
Model :
South Total Station NTS-332R10
Bluetooth :
Yes
USB port :
Yes
Reflectorless Distance :
1000m
Accuracy :
2"
Description

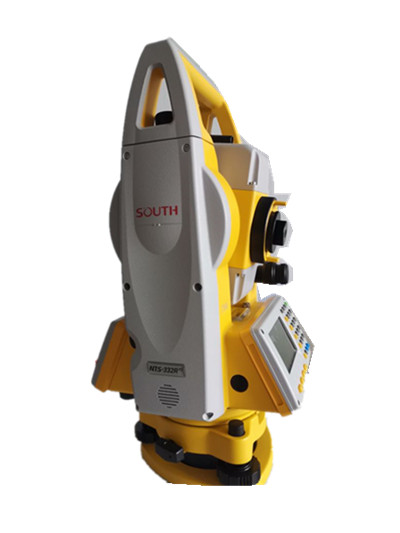

South Total Station NTS-332R10 Total Station

South Total Station NTS-332R10 Total Station with Bluetooth and USB port reflectorless distance 1000m

South Total Station NTS-332R10 Total Station with Bluetooth and USB port reflectorless distance 1000m

China Brand Total Station South NTS332R10 Total Station

MODEL:NTS-332R10

Reflectorless 1000m
SD card and USB Interface
Six-line Large LCD
Road-Design Program
Dual Axis Compensation

3.5-inch LCD
The large LCD screen provides you a better interface. Clearer display, easier operation.


Laser Path Diagram
Upgraded laser path system delivers much longer measuring range

Absolute Encoding Disk
Proved by market, high performance of angle measurement system guaranteed

Dual Axis Compensation
The integrated dual-axis compensator provides automatic error correction for both horizontal and vertical axis, double directions guaranteed

SD Card Function

USB Interface

Automatic Correction of Temperature & Pressure Sensor

Laser Plummet (Optional)


SPECIFICATIONS

Measuring distance Single prism: 5.0km
Prism free: 1000M
2C correction of index difference, Software auto calibration
Measurement time : Precise measurement for 0.3s, tracking for 0.1s
Digital display Large: 9999999.9999 small: 1mm/0.1mm (optional)
accuracy Prismatic: 2+2ppm prismatic free: 3+2ppm
Meteorological correction: Automatic correction of input parameters
Prism constant correction: Automatic correction of input parameters
Angle measurement Angle measuring method : Absolute encoding
Code disk diameter: 79mm
The reading can reach 0.1 "/1" /5 "optional
Accuracy: 2"
Detection mode : Horizontal plate: diameter alignment; Vertical disc: alignment
Telescope Imaging : Positive image
Tube length 154mm
Effective aperture of objective lens Telescopic: 45mm; Ranging: 50mm
Magnification: 30x
Field angle : 1°30′
Resolving power : 3"
Minimum focusing distance : 1.2m
Automatic vertical Compensator System: photoelectric double axis electronic compensation
Scope of work : ± 4 '(± 6' optional)
Resolution: 1 "
Level Pipe level: 30 "/2mm
Circular level: 8 '/2mm
Optical aligner Imaging: positive image
Magnification: 3 ×
Focusing range: 0.5m ~ ∞
Field angle: 5 °
Laser aligner Centering accuracy : ±1.5mm
brightness : With brightness adjustment function
other Display type: 2.6 inch screen; Double sided, 6-line English display, one button backlight, clear visibility under strong light
Data transmission: U-disk interface, built-in standard Bluetooth
2C correction of index difference: software automatic correction
Airborne battery
Power supply: rechargeable lithium battery, 3100mah
Voltage : DC 7.4v
Continuous working time: 10 hours
Size and weight Size :190mm × 190mm × 350mm
Weight:5.6kg (waterproof and dustproof grade IP65)

Company Profile:

Shanghai Magcach Technology Co., LTD is a company to provide professional surveying instruments and surveying service,and with rich experience in export trade business . Our company mainly line in all kinds brand survey instruments ,such as GNSS RTK GPS,Total Station, Auto/digital level, Optical /electronic theodolite, Laser distance meter, Handheld GPS,Surveying accessories, Surveying software, etc.
And we keep good cooperation with surveying accessory manufacturer. The Company's employees graduated from engineering.
We not only supply the Survey Instruments and accessories to our products ,we also supply the after sale and the technic Support. We will take the responsibility on the quality of our products .
