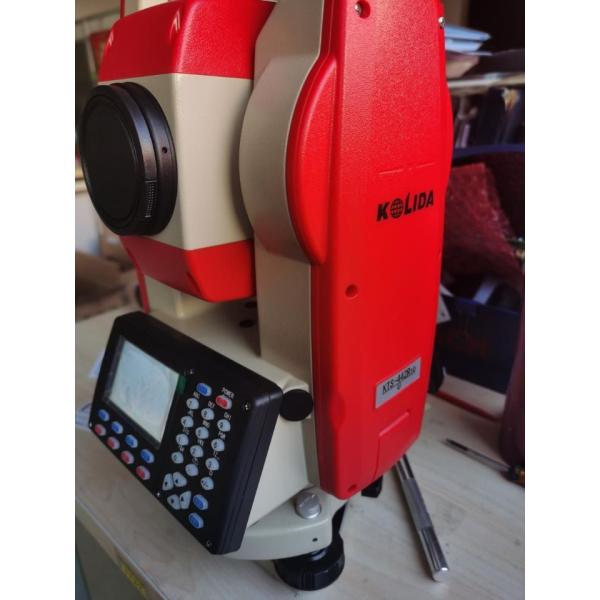

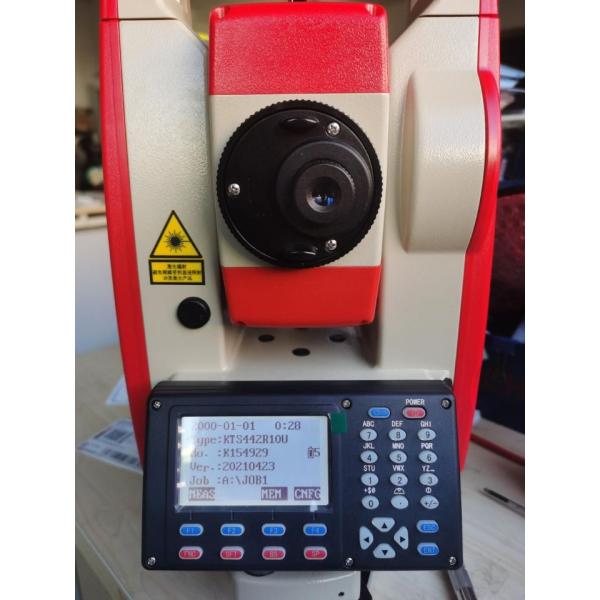

Total station kolida KTS-442R10U 1000m prismless Total Station
Total station kolida KTS-442R10U 1000m prismless Total Station
Total station kolida KTS-442R10U 1000m prismless Total Station
Total station kolida KTS-442R10U 1000m prismless Total Station
Specifications
Brand Name :
Kolida
Model Number :
Total station kolida KTS-442R10U 1000m prismless
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, , MoneyGram
Supply Ability :
10000 per year
Packaging Details :
With Standard Export Packing Way
Model :
Total station kolida KTS-442R10U 1000m prismless Total Station
Description

Total station kolida KTS-442R10U 1000m prismless Total Station

Total station kolida KTS-442R10U 1000m prismless Total Station

Total station kolida KTS-442R10U 1000m prismless and with bluetooth and USB port .

Kolida's new 440 series Total station

New advanced design with improved technology.

The new KTS-440 series was designed to deliver the latest technology to surveryor worldwide.

you will appreciate the technical improvement and advantages from the beginning of working with this equipment

Featuring an ultra-powerful EDM, the KTS-442R10U is able to measure up to 1000m without reflector at an incredible 3mm+2ppm accuracy. and in prism mode it is able to measure up to 5000m with single prism.

Measurement are captured faster than ever :0.1s in tracking mode and 0.3s in fine mode. The bright red laser dot pinpoints are also featured.

Improved Optics system

442R10U is equipped with a newly-designed objective lens, now it has better tightness to resist adhesion failure, the water proof/ wind proof ability is also greatly increased .

The new receiving lens provides higher brightness in view field, a bigger signal-receiving area, increased the utilization rate of EDM signal. The measuring accuracy under sunshine/ foggy condition has been greatly improved.

A new coating technology was applied on Porro prism, now the laser became softer than before, It is safer to surveys' eye.

Total station kolida KTS-442R10U 1000m prismless Total Station

Specification:

KTS-442R10U
Telescope:
Image Erect
Magnification 30×
Effective aperture 45mm
Resolving power 3″
Field of view 1°30′
Minimum focus 1.2m
Tube length 154mm
Angle Measurement
Measuring method absolute encode
Dia of circle(vertical, horizontal) 79mm
Minimum reading 1″ 5″Selectable
Detection method Horizontal: Dual .Vertical: Dual
Accuracy 2″
Distance Measurement: fine weather condition
Max. Range single prism 5km
Triple prism 6km
Reflectorless 1000m
Displaly Max:99999999.9999m Min:0.1mm
Unit m/ft
Accuracy Reflectorless ±(3mm+2ppm·D)
with prism ±(2mm+2ppm·D)
measuring time Fine mode:0.3S;Tracking mode:0.1s
Atmospheric correction Auto correction by inputting parameter
prism constant correction Auto correction by inputting parameter
Vial
Plate vial 30″/ 2mm
Circular vial 8′/2mm
Auto Vertical Compensator
Type Dual-axis Liquid-electric Detection
Compensation range ±3′
Accuracy 1″
Optical Plumment
Image Erect
Magnification 3×
Focusing range 0.5m~∝
Laser plummet
Optional
On-board Battery
type Ni-H ,Rechargeable
Voltage DC 7.4V 3100AH
charging time 3hrs
Continuous operation time 10 hours
Others
Display LCD, 6 lines
Data Communication USB,with bluetooth
Internal memory 2M/24000 points
External memory SD card (up to 2GB)
Operating temperature -20ºC~+45ºC
Dimension L190×H350×W190mm,5.6kg
Dustproof and waterproof IP65
