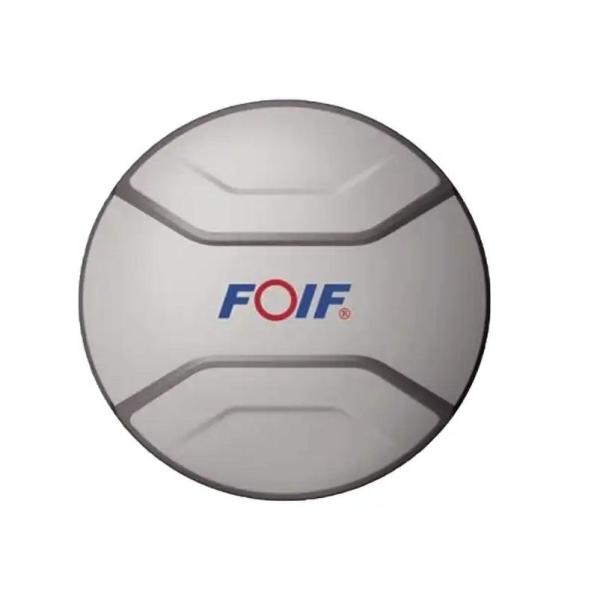

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
Specifications
Brand Name :
FOIF
Model Number :
A70 PRO
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T
Packaging Details :
with standard packing way
Name and Model :
A90 PRO
Horizontal :
2.5mm+0.5ppm RMS
Vertical :
5mm+0.5ppm RMS
Transport Package :
Case and Carton
Channels :
1408
IMU :
yes
Mian Board :
UM980
Description

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver Base Rover complete set

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent ReceiverHigh Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver

Main Feature:

  1. linux
    Linux system, support WebUI web page settings
    2. eSIM card
    Built-in eSIM, can operate in network mode without inserting a card
    3. Full Constellation
    336/432/555/800/1408 channels, support seven-star 31 frequency, support Beidou-3
    4. Sturdy
    Lightweight and miniaturized, full magnesium alloy body design
    5. Four-in-one combined antenna
    Set GNSS, Bluetooth, WIFI, 4G antenna in one
    6. Omnidirectional UHF radio
    Built-in receiving station, omnidirectional, wide frequency, multi-protocol compatible with mainstream RTK products in the market
    7. The fourth generation inertial navigation tilt measurement system
    IMU inertial navigation module, 6-axis 400Hz dynamic output, tilt measurement technology without calibration
    8. Built-in large capacity lithium battery
    7.2V 6900mAH large-capacity lithium battery, supports USB PD fast charging, supports charging treasure
Model A70 pro
GNSS Channels 800 /1408
Signals BDS: B1I/B2I/B3I/B1C/B2a/B2b
GPS: L1C/A/L2P (Y)/L2C/L5
GLOASS: G1/G2/G3
GALILEO: E1/E5a/E5b/E6
QZSS: L1/L2/L5
Accuracy Static H: 2.5 mm±1ppm , V: 5 mm±1ppm
RTK H: 8 mm±1ppm, V:15 mm±1ppm
DGNSS <0.5m
ATLAS 8cm
System Initialization Time 8s
Initialization Reliable 0.999
Operating System Linux
Merrory 8GB, support expanable MisroSD
Wifi 802.11 b/g/n
Bluetooth V2.1+EDR/V4.1Dual,Class2
Tilt Survey don't support
Datalink Audio support TTS audio broadcast
Protocol support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH
Network LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
TD-SCDMA: B34/B39
CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz
output format RTCM2.3, RTCM3.2, CMR, CMR+, ROX TCM3.2, CMR, CMR+, ROX
Physical Interface 1*5Pin(Power & RS232);
Type-C: For direct charging, data transmission;
Sim card slot: Install SIM card
Button 1 Power Button
Indication Light 4 Indication Lights
Size 148mm*62mm
Weight 800g
Power supply Battery capacity Built-in Lithium-ion battery 7.2V/6700mAh.
Life Timer Up to 9 hours
External power source DC 9-18V, with overvoltage protection
Environment Work Temporature -35ºC ~ +65ºC
Storage Temporature -55ºC ~ +80ºC
waterproof&dustproof IP68
Humidity 100% anti-condensation
