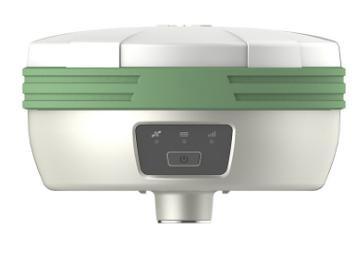

New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger
Specifications
Brand Name :
Hi target Huaxing
Model Number :
A8
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 per year
Packaging Details :
With Standard Packing Way
Description

New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger

New Model Hi-Target A8 Plus Gnss Rtk System with Ihand30 Data Logger

Model A8 plus
System Configuration Data storage 8GB internal memory
Data Formats 1Hz positioning output, up to 50 Hz - depends on installed option
CMR: sCMRx,CMR,CMR+input and output
RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1,3.2 input and output
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
Navigation outputs binary: GSOF,1 Pulse Per Second Output
Satellite Signals Tracked Simultaneously Channels 220,Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
BDS B1, B2,B3
GPS L1, L2C/P, L5
GLONASS Simultaneous L1, L2
SBAS Simultaneous L1, C/A, L5(EGNOS, WAAS, MSAS, GAGAN, QZSS)
Static and Fast Static GNSS Surveying Horizontal 2.5mm+0.5ppm RMS
Vertical 5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying Horizontal 1cm+1ppm RMS
Vertical 2.5cm+1ppm RMS
Initialization time Typically 10 minutes for base while 5minutes for rover
Initialization reliability Typically > 99.9%
RealtimeKinematic(RTK) surveying Horizontal 8mm+1ppm RMS
Vertical 15mm+1ppm RMS
Initialization time Typically < 8seconds
Initialization reliability Typically > 99.9%
Code Differential GNSS Positioning Horizontal 25cm+1ppm RMS
Vertical 50cm+1ppm RMS
SBAS 0.50m Horizontal, 0.85m Vertical
Power and Battery Power 6V to 28V DC external power input,Power consumption ≤3.5W
Internal battery Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery
Internal battery life static:13 - 15 hours
RTK Rover (UHF/GPRS/3G) 10 - 12 hours
RTK Base 8 - 10 hours
I/O Interface 1 xBluetooth, 1 x standard USB2.0 port,2 x RS232 serial port ,2x DC power input (8-pin & 5-pin)
Physical Dimensions (W x H) 164mm x 83.5mm
Weight 1.4kg with internal battery, internal radio,standard UHF antenna
Operating temperature -45ºCto +65ºC (-49ºF to +149ºF)
Storage temperature -55ºC to +85ºC(-67ºF to +185ºF)
Humidity 100%, considering
Water/dustproof IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and vibration Designed to survive a 3m(9.84ft) natural fall onto concrete.
