ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
ComNav M600 Mini GNSS Receiver
Specifications
Brand Name :
ComNav
Model Number :
M600 Mini
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 per year
Packaging Details :
With Standard Packing Way
Signal tracking Channels: :
404 channels
Satellite tracking: :
GPS, BeiDou, GLONASS
RTK Horizontal accuracy: :
8mm+1ppm
RTK Vertical accuracy: :
15mm+1ppm
Dual-antenna Design :
The M600 Mini tracks 404 channels with all working and planned GNSS constellations including GPS, GLONASS, BeiDou and SBAS.
Description

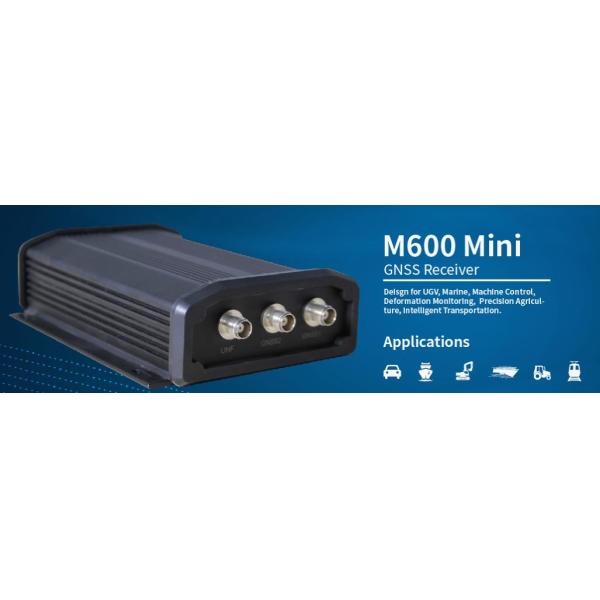

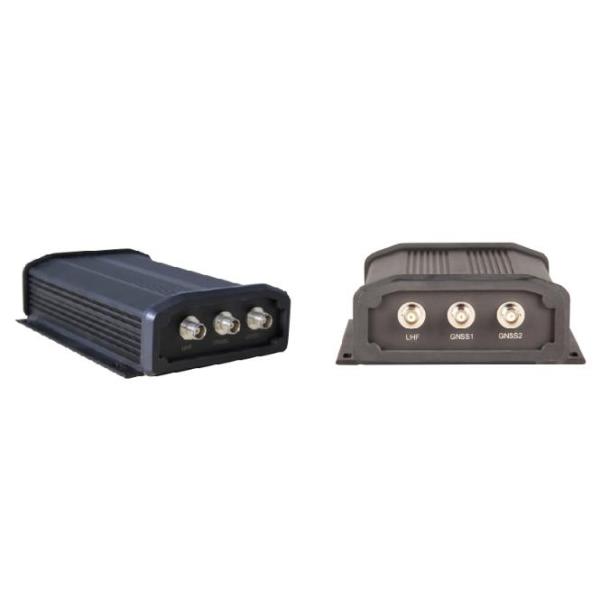

M600 Mini GNSS Receiver

The M600 Mini GNSS Receiver integrate two antenna connectors in one box, it is an economical choice for challenging guidance and positioning applications.

ComNav M600 Mini GNSS Receiver


Features

GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2

Dual-antenna design for heading and positioning

DP-Filter Smooth Function

GPRS/UHF support

Advanced QUANTUM Technology

Support PPS and Event Marker

Compact Design

ComNav M600 Mini GNSS Receiver

Easy to Integrate

 The datalink modem (UHF/GPRS) can be easily integrated to M600 Mini and customers benefit from convenient correction data transmission.

Strong Structure

The rugged aluminum alloy housing enables M600 Mini work in any harsh environment from -40℃ to 75℃.

Performance
Signal tracking Channels: 404 channels
Satellite tracking: GPS, BeiDou, GLONASS
RTK Horizontal accuracy: 8mm+1ppm
RTK Vertical accuracy: 15mm+1ppm
Post Processing Horizontal accuracy: 2.5mm+0.5ppm
Post Processing Vertical accuracy: 5mm+0.5ppm
RTK Initialization time: less than 10s
Physical

Size (L × W × H):

 191 mm × 142 mm × 52 mm
Weight (incl. supplied two batteries): 0.8 kg
Operating temperature: -40 °C to + 75 °C
Shock: Designed to survive a 1 m drop onto concrete
Humidity: 95% no condensation
Waterproof and dustproof: IP67
Power consumption (3 constellations): 2.5 W
External power input: 6V-28 VDC
Communications
1 Serial port (7 pin Lemo): 921,600 bps
Correction data I/O: RTCM 2.X, 3.X, CMR, CMR+
Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Modem (Optional): 3.5G
UHF modem (optional): Tx/Rx, 410-470 MHz
