CHT-225A Ultrasonic Concrete Strength Tester
CHT-225A Ultrasonic Concrete Strength Tester
CHT-225A Ultrasonic Concrete Strength Tester
CHT-225A Ultrasonic Concrete Strength Tester
Specifications
Brand Name :
Magcach
Model Number :
CHT-225A
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200000 per year
Delivery Time :
3-5 work days after the goods are paid
Packaging Details :
With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Name :
CHT-225A Ultrasonic Concrete Strength Tester
Permissible sound time error :
±0.1μs
Sensor frequency :
50KHz
Rebound kinetic energy :
2.207J
Rebound springs Rigidity :
785.0±40.0(N/m)
Size :
205mmX173mmX86mm
Weight :
850g
Description

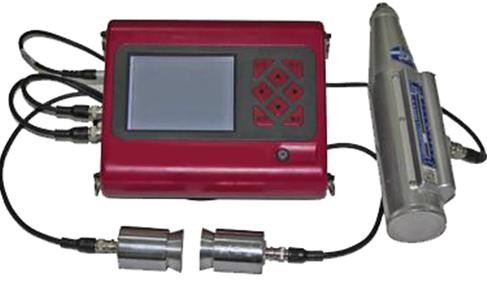

CHT-225A Ultrasonic Concrete Strength Tester

CHT-225A Ultrasonic Concrete Strength Tester

Purpose

CHT-225A concrete strength tester is used to test compressive strength of concrete by two ways:

rebound and ultrasonic-rebound method. Also, it can be used to test sound time and speed in concrete.

Specification

Technical specification for inspection of concrete compressive strength by rebound method(JGJ/T23-2011).

Technical specification for detecting strength of concrete by ultrasonic-rebound combine method(CECS02:2005)

Performance

1,Multi-function for testing compressive strength of concrete. It is used to test the compressive strength of concrete by rebound method and ultrasonic-rebound method.

2,Get the compressive strength value of concrete by ultrasonic-rebound method in one instrument. it need two instrument usually, one to test sound speed in concrete, the other to test rebound value.

3,Can save test date. This is convenient for laborer data management.

4,Real USB transmission. Data can be transmit to computer for future process and analysis.

5,Powerful data process and analysis software in windows. Test data can be export to word or excel for future process and analysis.

Technical Data

Permissible sound time error ±0.1μs
Sensor frequency 50KHz
Rebound kinetic energy 2.207J
Rebound springs Rigidity 785.0±40.0(N/m)
Rebound bar impact length 75.0±0.3 mm
Rebound value permission error ≤±1
Average rebound value on Calibration anvil 80±2
Temperature -4°C～+40°C
LCD screen 160×128(10×8cm)
Power 6 dry cells,work more than 10 times
Size 205mmX173mmX86mm
Weight 850g


Software

Powerful software in windows is convenient to data process and analysis:Real USB assure transmit data to computer quickly. It also can export data to word and excel for future process, save and print data.
