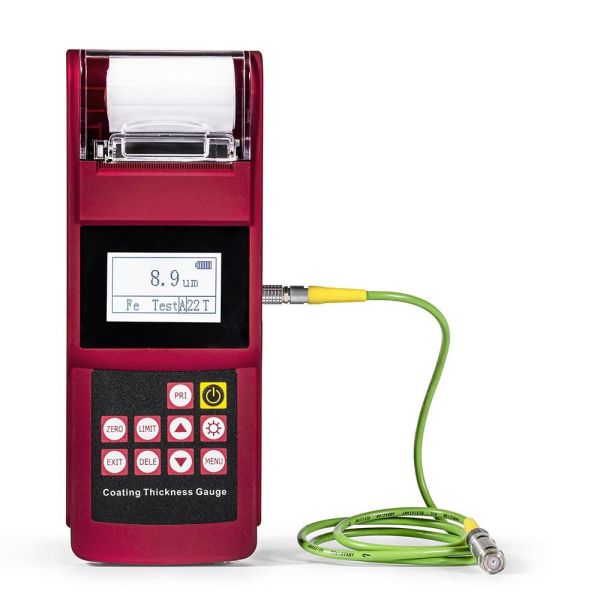

Coating Thickness Gauge Uee923
Coating Thickness Gauge Uee923
Coating Thickness Gauge Uee923
Coating Thickness Gauge Uee923
Coating Thickness Gauge Uee923
Coating Thickness Gauge Uee923
Specifications
Brand Name :
Magcach
Model Number :
Uee923
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200000 per year
Delivery Time :
3-5work days
Packaging Details :
With Standard Export Shipping Way
Name :
Coating Thickness Gauge Uee923
Description

Coating Thickness Gauge Uee923

Coating Thickness Gauge Uee923

Functions & Features

●High quality and precision

●Software for PC connection and data transmission, analysis, and printing measurement reports.

●With built-in thermal printer. Width of printer paper: 56.5±0.5mm.

●Rechargeable Li-ion battery, available for 10 hours working continuously.

●Large memory to save 4 types of materials and 1560 testing values.

●3 ways for easy Calibration: by one specimen, two specimens or five specimens to finish calibration.

●Five statistics: Average, Maximum, Minimum, Testing times, Standard deviation.

●Standard delivery with 5 calibration specimens (48.5m,99.8m,249m,513m,1024m)

●3 years warranty and life-long services

Measuring Materials

●Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .

●Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.

Technical Parameters

Model Leeb923
Measuring principle Magnetic induction (Fe ) & Eddy current ( NFe)
Measuring range (µm) 0~1250μm
Accuracy ±(1%H+1) μm H refers to the thickness of testing piece
Minimum resolution (µm) 0.1μm
Min curvature of the min area (mm) Convex1.5 Concave9
Diameter of the min area (mm) Φ7
Critical thickness of substrate (mm) 0.5
Operating temperature 0℃~40℃
Memory 1560
Dimensions 238*90*38mm
Weight 420g
Printer Build-in High-speed Thermal Printer
Power supply Rechargeable Li-ion battery
Standard Configuration Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe), software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, Paper for Printer, Power Charger, Packing list, Warranty card
Optional Accessories Probes, Specimens, Paper for printer
