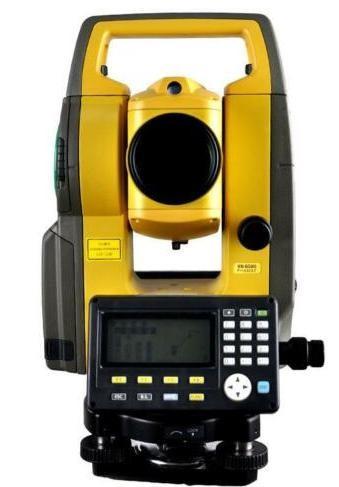

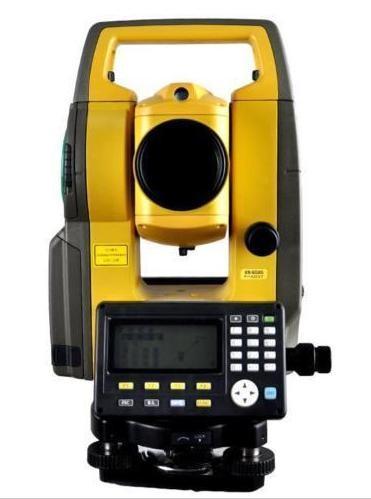

Topcon ES602G Total Station  reflectorless Distance 500m
Topcon ES602G Total Station  reflectorless Distance 500m
Topcon ES602G Total Station  reflectorless Distance 500m
Topcon ES602G Total Station  reflectorless Distance 500m
Specifications
Brand Name :
Topcon
Model Number :
ES602G
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 per year
Delivery Time :
1-2 weeks after the goods are paid
Packaging Details :
With Standard Export Shipping Way
None Prism Distance :
500m
Accuracy :
2"
Description

Topcon ES602G Total Station reflectorless Distance 500m

Topcon ES602G Total Station  reflectorless Distance 500m

The high-value,low-cost surveying instrument designed specifically for construction and forensics.

ECONOMICAL,VALUE-PRICED MEASURING SOLUTION
RUGGED,DURABLE,WATER RESISTANT DESIGN
TWO ACCURACIES TO CHOOSE FROM:2"&5"
EXPANDED,FULL NUMERIC KEYPAD
ON-BOARD PROGRAMS&24,000 POINT DATA STORAGE
IDEAL AS A CONSTRUCTION STAKEOUT TOTAL STATION
PERFECT WHEN COMBINED WITH FC FIELD CONTROLLER AND SOFTWARE

TELESCOPE
Length 171mm
Objective Lens Dia. 45mm (EDM48mm)
Magnification 30x
Field of View 1°30′
Resolving Power 3.0"
Minimum Focus 1.3m
DISTANCE MEASUREMENT
reflectorless 500m
Sheet RS10N-K :100m ,RS50N-K :300m ,RS90N-K :500m
Mini Prism 500m
1 Prism 4000m
3 Prism 5000m
Accuracy--Reflectorless ±(3mm+2ppm×D)m.s.e
Accuracy--sheet ±(3mm+2ppm×D)m.s.e
Accuracy--prism ±(2mm+2ppm×D)m.s.e
measuring time Fine mode:0.9S;Rapid mode :0.7s , Tracking mode:0.3s
ANGLE MEASUREMENT
Accuracy 2"
Method Absolute Reading
Reading Method (H) Dual
Reading Method (V) Dual
Minimum Reading 5"/1"
Tilt Correction Double Axis, ±6'
Interface and Data management
Display/Keyboard Graphic LCD,192*80dots ,backlight,contrast adjustment,Alphanumeric keyboard/25keys with backlight
control paner location On both faces
Trigger Key On right instrument support
Data storage Internal memory:Approx.10000 points ; Plug-in memory device: USB flash memory(max.8GB)
Interface Serial RS-232C,USB2.0(type A,for USB flash memory)
Bluetooth modem(option) Bluetooth class I ,Ver.2.1+EDR,Operating range: up to 300m
General
Laser-pointer Coaxial red laser using EDM beam
Guide light Green LED (524nm) and Red LED (626nm),
Operating range: 1.3 to 150m (4.3 to 490ft.)
Levels Graphic:6'(inner circle) ; Circular level:10'/2mm
Optical plummet Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
Dust and water protection IP66 (IEC 60529:2001)
Operating temperature -20 to +60°C (-4 to +140°F)
Size with handle 191mm*181mm*348mm
Weight with battery & tribrach 5.6kg
Power supply
Battery BT-L2,Li-ion rechargeable battery
operature time Approx.25hours(single distance measurement every 30)
