600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
Specifications
Brand Name :
Hi target
Model Number :
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, , MoneyGram
Supply Ability :
10000 per year
Packaging Details :
With Standard Export Packing Way
Model :
600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price
Description

600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price

600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price

600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price

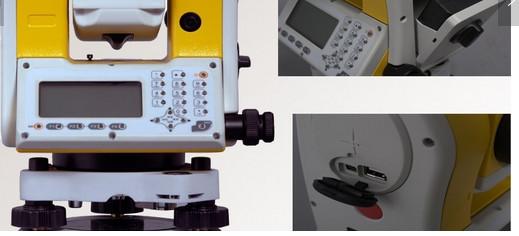

Compact and Lightweight Designed, easy to carry and setup. With powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, ZTS-360R improves the speed and distance of measurement efficiently. Using STM32 architecture and high-grade dustproof and waterproof structure design, Comprehensively enhance the overall performance of ZTS-360R.
System Features
Compact, Lightweight Design
Rugged, compact design ensures the stability of every indicators of equipment and protect you from data loss on the harsh conditions.
Small size and light weight body make your work easily.

Quick Trigger Button

Measurement and record by pressing one quick trigger button, fast and convenient.

Stable Dual-axis Compensation
Simultaneous tilt compensation from horizontal and vertical angle makes sure the accurate measuring result, even when the body is rotating.
Vivid graphic electronic bubble display is available.

Upward Laser Pointing
Deviation from centre handle design makes upward laser pointing fast and easy, and no dead angle exists in upward measurement, which is significant for mining or tunneling application.

Powerful and Fast EDM Capability
600m Non-prism ranging.
Fine 0.8s, Track 0.3s in prism mode.

IP66 Dust and Water Protection
High standard IP66 performance provide protection from dust penetration and water driving.

Intelligent Calibration Software
The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Software Compatibility
Compatible to the 3rd party data processing software, satisfying users' requirements for different data format.

Technical Parameters
Angle Measurement Method Absolute encoder
Minimum Reading 1″/5″/10″(selectable)
Angle Accuracy 2″
Telescope Magnification 30X
Field of View 1°30′
Shortest Focus Distance 1.5m
Image Erect
Compensation System Dual-axis
Working Range ±3′
Setting Accuracy 1″
Distance measurement Reflector (IR) Range Single prism (good condition) 3000m
Reflective sheet 800m
Accuracy 2mm±2ppm
Measuring Repeat 1s
Tracking 0.5s
Reflector-less (RL) Range white board reflectivity 90% 600m
Single Prism >7500m
Accuracy 3mm±2ppm
Measurement Time 1.5s
General Communication Internal Data Memory 20000 Points(SD card supported)
Interface RS232, Mini-USB, USB
Data Format ASCII
Operation system Real-time English operating system
Display 192×96 high-light LED screen, brightness adjustable in 3 level
Keyboard 2 sides alphanumeric backlit crystal keyboard
Laser plummet Type Laser point, 4 brightness levels adjustable (Optical plummet is optional)
Centering Accuracy 1 mm at 1.5m instrument height
Power supply Battery Type BT30 Li-ion battery
Voltage/Capacity 7.4V 3400mAh
Operating time 18 hours(continuous angle measurement every 30 seconds)
Measuring times Approx. 12000 times
Weight 3.8kg with battery
Environmental Meteorological parameter modification Manually(T-P senser is optional)
Operating temperature -20ºC~+50ºC
Storage temperature -40ºC~+70ºC
Dust & Water proof IP66
Characters Zenith point measurement without removing the handle
Shortcut measurement key on the side, convenient for surveying
Small and light
Key define
Intelligent checking
