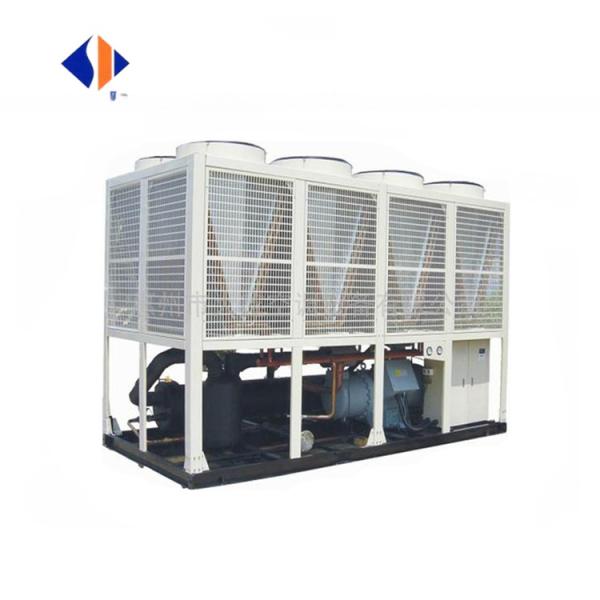

1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate
Specifications
Place of Origin :
Shandong, China
Brand Name :
SHUANGYI
Certification :
CE
Packaging Details :
plywood case
Supply Ability :
160 Set/Sets per Month
Price :
$18,000.00/sets 1-49 sets
Applicable Industries :
Hotels, Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Showroom Location :
None
Type :
Air-cooled
Voltage :
3PH~220V/380/415V~50HZ/60HZ
Dimension(L*W*H) :
1320*850*1200mm
Weight :
1100kgs
Warranty :
1 Year, one Year
Key Selling Points :
High-accuracy
After Warranty Service :
Online support
Local Service Location :
None
Name :
Water Cooling Chiller
Compressor Brand :
Daikin
Application :
Industrial Cooling Solutions
Product name :
Industrial Water Cooled Water Chiller
Evaporator :
Tube Heat Exchanger
Refrigerant :
R134a/R407c/R410a
Color :
gray
Power :
100kw
Certificate :
CE
Port :
Qingdao
MOQ :
1 PC
Description

Air Cooled Water Chiller Manufacture

1100kgs Large Capacity Air Cooled Water Chiller With CE Certificate

Product Description

It is one of the series of central air conditioning products which developed by Shuangyi group who bring in advanced technology from European and American countries.It use air as cooled(heating) medium and is a integrated central air conditioning equipment combined with cold and heat sources.There are advantges of high efficiency,low noise,reasonable structure,easy operation,security run,easy installation and maintenance,etc.

The unit is widely used in hotel,shopping mail,exhibition center,airport,stadium and other public facilities with comfortable central air-conditioning system, and can meet different requirements of manufacturability air-conditioning system from electronic,pharmaceutical,biology,textile, chemical Industry, metallurgy, electricity, mechanical engineering, etc

.

It is divided into cold and heat pump type.Among this,the heat pump chiller is integrated with refrigeration and heating functions which means it can provide cold and heating function.It can achieve both summer cooling and winter heating, multi-purpose.

Technical parameters

Unit Type

LSQW(R)FZ LSBLG(R)FZ integral air cooled chiller series

LSQWF60Z LSQWRF60Z

LSQWF80Z LSQWRF80Z

LSQWF100Z LSQWRF100Z

LSBLGF100Z LSBLGRF100Z

LSBLGF180Z LSBLGRF180Z

LSBLGF250Z LSBLGRF180Z

LSBLGF250Z LSBLGRF180Z

Cooling capacity

kW

68.0

79.2

103.2

152.1

184.9

247.6

315.6

104kcal/h

5.8

6.8

8.9

13.1

15.9

21.3

27.1

RT

19.3

22.5

29.3

43.2

52.6

70.4

89.7

Heating capacity

kW

70.0

86.5

110.8

174.4

211.6

277.6

361.5

104kcal/h

6.0

7.4

9.5

15.0

18.2

23.9

31.1

RT

19.8

24.6

31.5

49.6

60.2

78.9

102.8

Power supply

Three-phase power 380V 50Hz

Energy control

Two-level adjustment(50%-100%)

Four-level adjustment(25%-100%)

Total input power

kW

21.9

26.8

35.2

52.3

68.1

91.7

115.0

Max operating current

A

38.4

50.4

63.2

95.5

114.5

153.0

194.6

Max enable current

A

165.9

204.1

265.2

619.9

729.9

907.3

1089.3

Compressor

Type

Fully enclosed scroll compressor

Semi - closed screw compressor

Quantity*rated power

Hp

2*12

2*15

2*20

60

60

100

120

Input power

kW

2*10.2

2*12.3

2*16.1

46.3

56.7

74.9

98.2

Amount of fuel

L

2*3.0

2*6.6

2*8.0

11

11

13

13

Refrigerant

Type

R22

Quantity

kg

2*10.5

2*20

2*25

48

60

100

130

Control method

External balance thermal expansion valve

Condensing fan

Type

Axial

Quantity

2

2

2

4

4

6

6

Power

kW

0.75

1.1

1.5

1.5

1.5

1.5

1.5

Air flow

m3/h

29200

42000

48000

96000

96000

144000

144000

Water capacity

Water flow

m3/h

11.7

13.6

17.7

26.2

21.8

42.6

54.3

Water resistance

kPa

43

42

41

41

41

42

42

Pipe size

DN

125

125

125

80

100

100

125

Dimensions

Length

mm

2165/2100

2165

2165

2500

2500

3290

3590

Width

mm

1285/1100

1285

1285

2160

2160

2160

2160

Height

mm

2023/1890

2023

2023

2430

2430

2430

2430

Unit weight

kg

800/760 800/800

1020 1080

1290 1380

2050 1950

2150 2350

2500 2750

2900 3150

FAQ

1.What's the guarantee, in case the water tank breaks down?

The water tank has one year s guarantee. If it breaks down, generally speaking, our technicianwill figure out what the problem may be, according to client s feedback. Parts will be

replaced for free if the problems are caused by quality fault.

2.How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List,

Commercial Invoice, B/L, and other certificates as required by clients.

3.How long is the delivery time?

For standard water tank less than 100m3, it would be 3-5 days; For non-standard water

tank and customized water tank according to client s specific requirements, it would be 15 to

30 days.

4.How's the payment?

Telegraphic Transfer(T/T).LC and western union are all acceptable

5.Do You Arrange Shipment ?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. also we do DAP and DDP shippment terms

For EXW price, clients need to arrange shipment by themselves or their agents.
