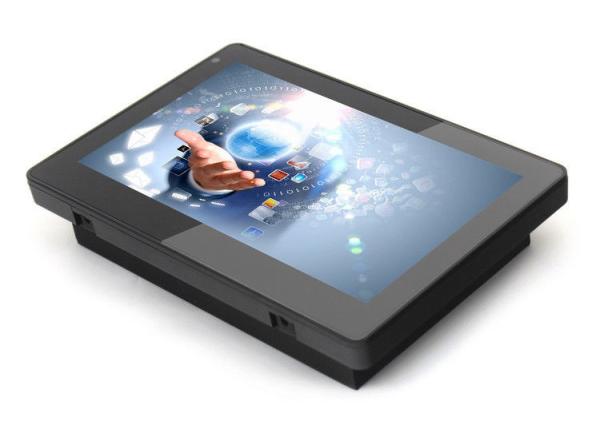

Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Specifications
Brand Name :
SIBO
Model Number :
Q896S
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
2 units
Payment Terms :
T/T
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
OS :
Android 6.0
CPU :
Allwinner A83T 8-core
screen :
multiple capacitive touch screen
RAM :
2GB
ROM :
8GB
network :
wifi, 3G, Ethernet,blurtooth
power supply :
DC IN or POE
interface :
camera, USB, HDMI output, RJ45,DC IN
serial ports :
RS232, RS485, GPIO
Optional accessories :
NFC, three-colors LED, temperature sensor, light sensor
Bracket :
Onwall, inwall, glass wall, table
Supply Ability :
2000pcs/month
Description
Customized software, remote control tablet with Android system for home automation

Detailed Product Description


Customized software, remote control tablet with Android system for home automation


Features:

  • IPS Screen (G+G glass)
  • Three color led light on the top to show room status (blue, red, green)
  • Android OS
  • In wall / On wall version / Glass wall mount
  • HDMI, Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
  • Support ROOT permissions for private application
  • No battery design
  • Auto power on
  • 12V DC / 24V DC available for power
  • Auto web application (one web page can be showed only on the screen)
  • POE feature (IEEE 802.3 af)


Application :

  • Meeting romm Schedule,
  • Office control region,
  • Home Automation,
  • Industrial control


Customized Service:

  • Customized animation firmware with your logo (available in bulk order)
  • Temperature/Humidity Sensor
  • Customized USB jumper for app debugging

Standard accessories;

  • WIFI
  • Bluetooth
  • Camera
  • Power adapter


Optional accessories:

  • PoE
  • NFC RFID Reading module
  • LED indicating bar
  • Arduino Nano
  • RS232
  • RS485
  • GPIO

With multi color controllable Indicator on the top (red / green / blue), suitable for meeting room applications, home automation and control

Demo application software and source code will be provided for you to integrate LED control feature into your own software.

Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation
Customized software, remote control tablet with Android system for home automation

Specification:

Model NumberQ896S
Hardware SpecsSolutionAllwinner’s A83T processor
CPUOcta-core Cortex tm-7a CPU A83T 1.2Ghz
Display7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM2GB
Nand Flash8GB
Software FeatureSystemGoogle Android 6.0
AudioOne Speaker 1 X 1 Watt (Integrated 3W Amplifier)
LanguageSupport multi-languages
InterfacesBackEthernet Interface(RJ45)
HDMI Out
USB 2.0 port USD HOST Mode Default, Optional: Jumper Cap for Device Mode
DC IN Power Terminal (9V-36V)
Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT
NetworkWIFI+BLUETOOTHWIFI (802.11b/g/n), Bluetooth 4.0 support BLE
LAN PortEthernet RJ45
Power SupplyDC IN or PoEDC 9V - 36V or PoE
Boot UpAuto BootAuto Boot Up When Power Supplies


It is Wall Tablet / Desk Tablet, no battery , no buttons (with auto power on feature), it is a serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

Customized software, remote control tablet with Android system for home automation

DC+ POE for power supply
Customized software, remote control tablet with Android system for home automation

Customized software, remote control tablet with Android system for home automation
Q896S INTERFACE:
1.HDMI OUT
2.CVBS IN(Removed)
3.DC IN (9-24V)
4.RJ45
5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING

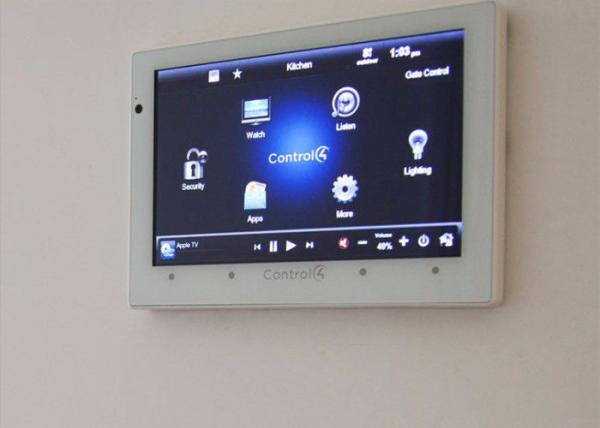

In wall installation :
Customized software, remote control tablet with Android system for home automation

Application:
Customized software, remote control tablet with Android system for home automation

Welcome OEM orders !


Miss Nancy,

Whatsapp: 8617688897837
Skype/Wechat: chinasibo
QQ: 153083978
