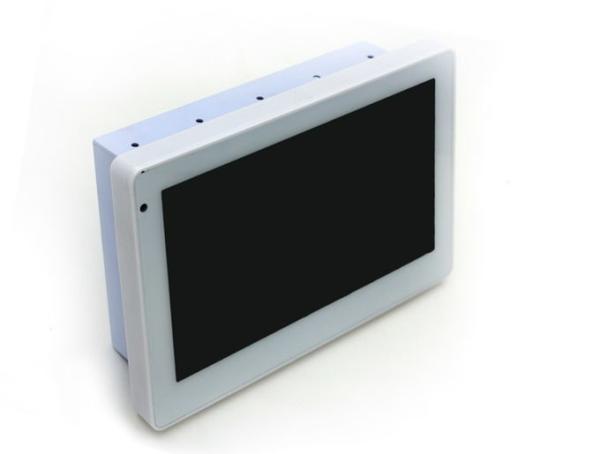

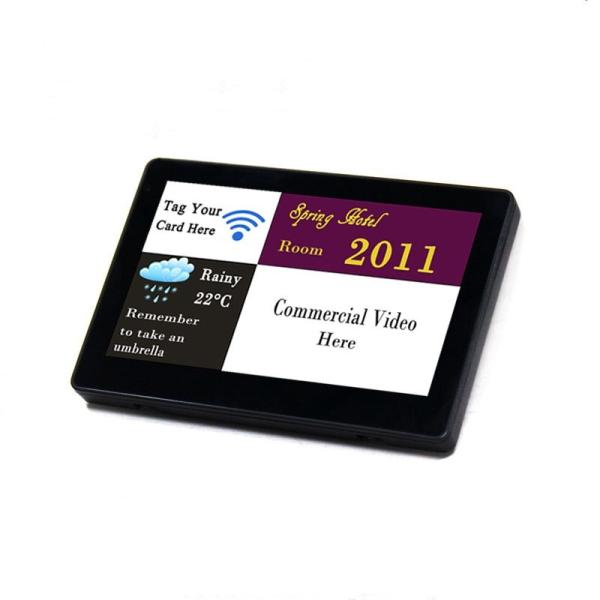

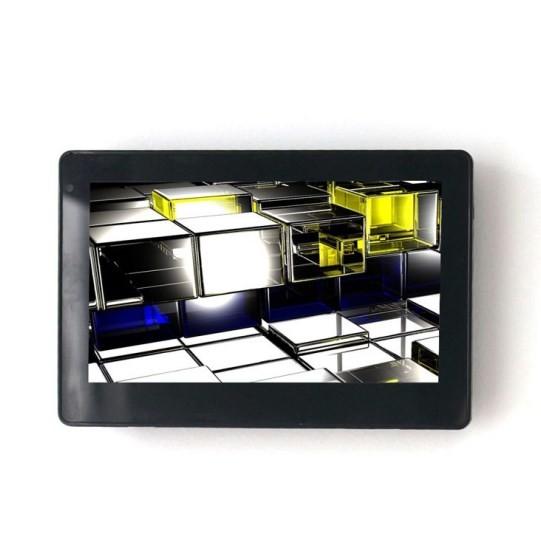

SIBO 7'' Android Octa Core Touch Flush Wall Mounted Tablet With NFC Reader For Time Attendance

Model Q896S with 3 kinds of mounting ways: in-wall flush, on-wall surface and desktop mount for your choice. Multi-interfaces: DC-in, POE, USB port, DHMI-out, RS232, RS485, GPIO. As well as the NFC reader, Proximity Sensor (PS) and Ambient Light Sensor (ALS), LED light indication. It is widely applied to Intelligent home, industrial control, energy management, finance, medical care, shopping malls and so on.

IPS touch Screen:

NFC Reader:

LED Light:

Build in card reader

We integrated the reading module into the tablet case, so you can tag your card on left top corner of the screen

Programmable

Our reading module is Arduino based which is easier to program. You can upload your Arduino reading program from the tablet directly

App control

All the data read from the card could be displayed on an Android app. You can also write data or change Keys by using the app

Network:

You definitely need networks in an unmanned situation. We provide Bluetooth, WIFI and Ethernet. Tag the card, and the data will be send to the server.

We will provide source code you need once you purchase a sample unit. Please allow me to inform you some basic idea about our NFC reading module.

Tablet-------Arduino Nano-------PN532

Out tablet communicate with an Arduino nano board by using UART. And the Arduino Nano work with PN532 using I2C. You don't have to do the Arduino coding by yourself. We will provide you the arduino code that could read / write the card.

You must be confused that why do we using an Arduino board. That is because with an Arduino board, we could use the Pn532 library that make the coding a lot easier.

NO problem. I will send our source code for NFC testing app source and arduino code. Let me explain a bit about this.

Our NFC function consist of three parts, a PN532 reader module. a Arduino board and the tablet. We have an android app to send command to the arduino board.The arduino board communicate with PN532 reading module. So you need program the arduino code and the andoird app.We use a PN532 library, so it make arduino coding a lot easier.

You could actually do something more than reading and wrting data. You may want to explore it if needed.

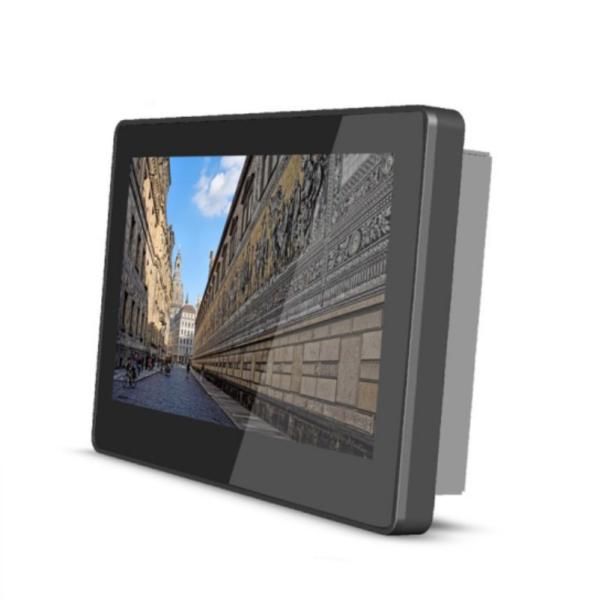

In wall mount method:

Table Mount:

Advantages:

• 16 Years Experiences in Tablet PC for Automation
• Competitive Price Directly From Manufacturer( Our Own Factory)
• Excellent Support for Software and Hardware Modification
• Services for Customized Logo and package
• Quick Response for after-sale Services
• On-time Delivery
• POE powered
• IPS High resolution screens
