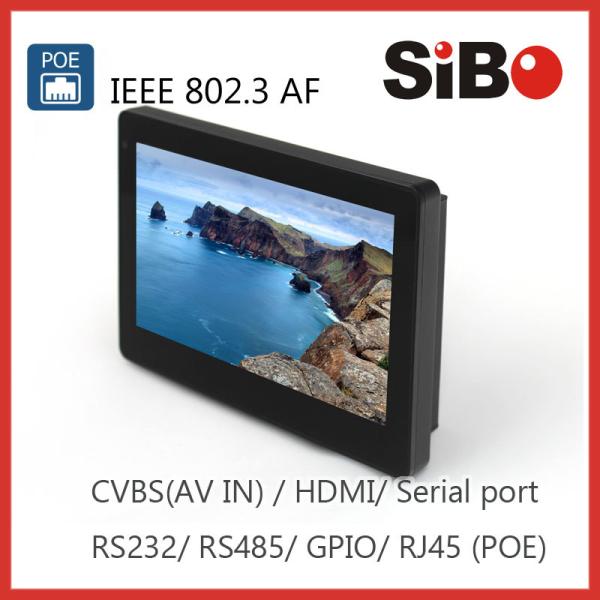

SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
Specifications
Place of Origin :
Shenzhen
Brand Name :
SIBO
Certification :
CE, FCC
Model Number :
Q896
MOQ :
2 units
Delivery Time :
5-25 working days
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Packaging Details :
10 pcs in one carton
Description

SIBO Wall Mounted Tablet

1. IPS screen
2. Embedded Design
3.WIFI / 3G / LAN
4. RJ45

SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home

SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home

For Smart home and control

  • IPS Screen (G+G glass)
  • Android OS
  • Inwall / Onwall version
  • Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
Model Number Q896
Hardware Specs Solution Allwinner Dual-Core Cortex™-A7 CPU
CPU ARM Cortex A7 Dual-Core, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 1GB
Nand Flash 4GB
Software Feature System Google Android 4.2.2
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Integrated 3W Amplifier (No Speakers, Only Speaker connector)
Language Support multi-languages
Interfaces Back Ethernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN
DC IN Power Terminal
UART, IO, 3W AMP OUT Available
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
LAN Port Ethernet RJ45
Power Supply DC IN DC 9V-24V
Boot Up Auto Boot Auto Boot Up When Power Supplies
Software Auto Run Web App


Notice: There is no any battery and buttons as normal Tablet PC , auto power on is available !

Builtin HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200)
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home

SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
Desktop bracket and the mounting picture:
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
Flush mounting installation:
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home
On wall mounting:
SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home

SIBO Wall Mounted Tablet PC with Serial Port and Ethernet For Smart Home

Welcome the OEM orders for smart home , home automation applications...
