Specifications
Brand Name :
SIBO
Model Number :
Q896S
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
2 units
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
OS :
Android 4.4
CPU :
Allinner A83T with Qcta core
display :
7 inch IPS
screen :
capacitive touch screen
RAM :
2 GB
ROM :
8 GB
resolution :
1024*600
network :
wifi,3G,Ethernet, bluetooth
camera :
0.3MP
rotatable screen :
Yes
interface :
HDMI output, DC IN, RJ45, USB
Mount :
onwall/inwall/glass wall/table mount
optional accessories :
NFC, LED, RS232,RS485, GPIO, temperature sensor, proximity light sensor
appplication :
Industrial control,energy management, home automation, office attendance, access control
Description

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

We have a better solution for:

  • Meeting Room Booking System
  • Access Control System
  • Time & Attendance System
  • Smart House Control Center
  • Inventory Tracking & managing System
  • Library Guiding System
  • Hospital Room Access & Information System
  • Asset and Document management System
  • Laundry management system

All you need in one box

We have:

  • Glass surface, Button free design
  • Top fading LED
  • HDMI
  • Power over Ethernet
  • Build-in NFC / RFID card reader
  • Multiple network support

We could:

  • One year warranty
  • Hardware modifying
  • Software customizing
  • Full technical support

Products Pictrues

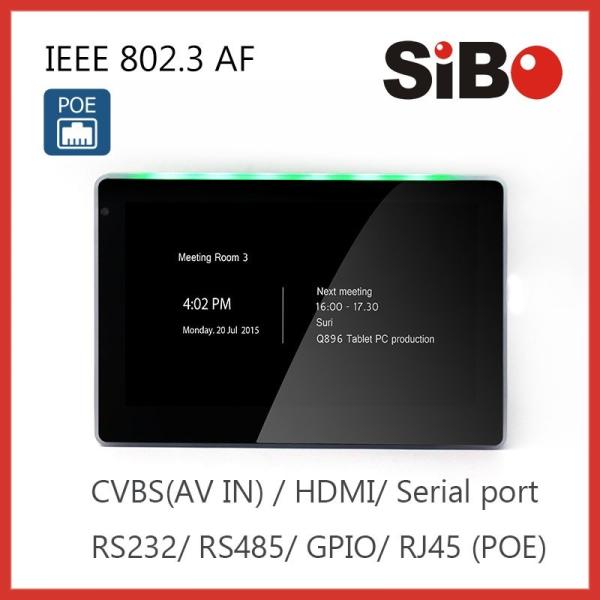

POE Supported:

POE(Power Over Ethernet) is a technology that lets network cables carry electrical power.Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Build-in NFC / RFID reader:

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Build-in Arduino Board:

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Unique Arduino Module:

We have a built in Arduino I/O board in our tablet. That gives our tablet a unique ability that it could work with most of sensors or other components. Also, it is very easy to make a change on our system. If you want to use another sensor or add more sensors, just simply plugin then update the control program.

Android-to-Arduino Uploader:

Writing a new program into the Arduino board isn’t an easy job normally. You need a program writer to do so. However, our tablet has a unique design that you can actually upload your program from the tablet directly. After purchase our product, the product will come with a using guide and an Android APP which you can use it to upload.

Temperature and Humidity Sensor

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

RS485 / RS232:

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Unique On Glass Mount Bracket:

Easy to mount on glass. Sample and clean

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

On wall with L shape bracket

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Wall mount with metal box

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface portIndustrial Universal Tablet with RS232 RS285 UART GPIO Interface portIndustrial Universal Tablet with RS232 RS285 UART GPIO Interface port

In wall mount method:

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Table Mount

Industrial Universal Tablet with RS232 RS285 UART GPIO Interface port

Technical Details
Model Number Q896S
Hardware Specs Processor Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
Software Feature System Google Android 4.4.4
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
Language Support multi-languages
Interfaces Back HDMI Out
DC IN Power Terminal (9V-36V)
Ethernet Interface(RJ45)
USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode
Optional:RS232,RS485
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
LAN Port Ethernet RJ45
Power Supply DC IN DC 9V - 36V
Boot Up Auto Boot Auto Boot Up When Power Supplies
