Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry
Specifications
Brand Name :
SIBO
Model Number :
Q896
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
2 units
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
size :
7 inch
cpu :
Allwinner A83T with Qcta core
OS :
Android 6.0
screen :
IPS capacitive touch screen
resolution :
1024*600
camera :
0.3 MP
interface :
HDMI output, RJ45, USB, DC IN
network :
wifi,3G,Lan, bluetooth
color :
black, white
material :
plastic
installation :
wall/glass wall/table
Description
Android Tablet with Serial Port RS232 RS485 GPIO for industry

Tablet with Serial Port RS232 RS485 for industry

The SIBO Android Tablet PC can directly be embedded into a wall, be placed on wall / or desktop with rich Android application for home application and so on...

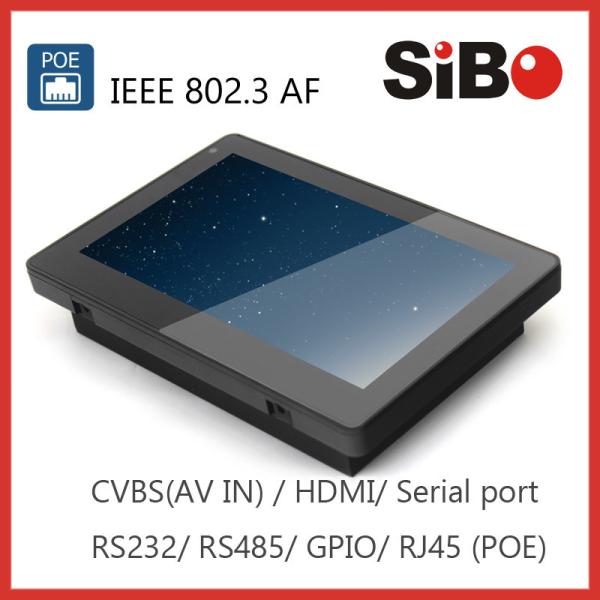

SIBO Q896 In Wall Android RS232 Tablet

Android Tablet with Serial Port RS232 RS485 GPIO for industry


SIBO Q896 In Wall Android RS232 Tablet
For industrial control

  • IPS Screen (G+G glass)
  • Android 6.0 OS
  • Inwall / Onwall version
  • CBVS , HDMI, Serial port , GPIO , Uart interface
  • No buttons design
  • Slim Body with 3 Brackets for wall mounting
  • Camera & Mic
  • Support ROOT permissions for private application
  • No battery deisgn
  • Auto power on
  • 12V DC / 24V DC available for power
  • Auto web application (one webpage can be showed only on the screen)
  • POE feature (IEEE 802.3 af)
SIBO Q896 In Wall Android Tablet With RS23
SSIBO Q896 In Wall Android Tablet With RS232
Model Number Q896S
Hardware Specs Processor Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
　
Software Feature System Google Android 6.0
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
Language Support multi-languages
　
Interfaces Back HDMI Out
DC IN Power Terminal (9V-36V)
Ethernet Interface(RJ45)
USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode
Optional:RS232,RS485
　
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
　 LAN Port Ethernet RJ45
　
Power Supply DC IN DC 9V - 36V
　
Boot Up Auto Boot Auto Boot Up When Power Supplies

SIBO Q896 In Wall Android Tablet With RS232

Builtin HDMI (standard ) jack, Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out

It is Wall Tablet , no battery , no buttons (with auto power on feature), it is Serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

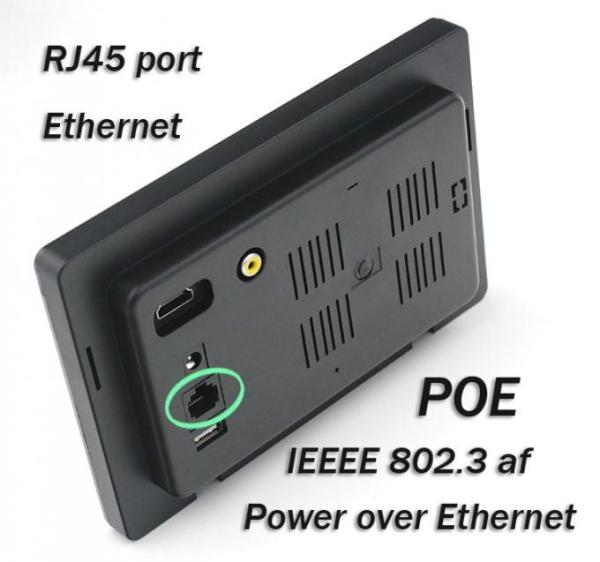

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

Android Tablet with Serial Port RS232 RS485 GPIO for industry


SIBO Q896 In Wall Android RS232 Tablet

Q896S INTERFACE:

1.HDMI OUT

2.CVBS IN (removed in Q896S)

3.DC IN (9-30V)

4.RJ45

5.USB

6.UART, IO , 3W AMP OUT

7.SLOTS FOR MOUNTING

8.SCREWS FOR MOUNTONG

Tablet with RS232 (With RS232 to RS485 Converter):


SIBO Q896 In Wall Android RS232 Tablet

Android Tablet with Serial Port RS232 RS485 GPIO for industry

Max double RS232 / TTL interfaces available
Android Tablet with Serial Port RS232 RS485 GPIO for industry

Android Tablet with Serial Port RS232 RS485 GPIO for industry

Tablet with RS485

Android Tablet with Serial Port RS232 RS485 GPIO for industry

Android Tablet with Serial Port RS232 RS485 GPIO for industry

SIBO Q896 In Wall Android RS232 Tabl

Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.

POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE LCD embedded touch LCD Android RS232 Android RS485 Android GPIO RS485 touch screen RS232 touch screen in wall LCD in wall touch screen Wall mounted touch screen Wall mounted Android display RS232 touch display RS485 touch display serial port display GPIO touch display POE display POE touch screen POE touch LCD Ethernet tablet Ethernet touch screen power over Ethernet screen Android POE flush mounting touch screen Wall Android RJ45 Android RJ45 tablet SIBO Q8 SIBO android screen SIBO home automation SIBO intercom SIBO Q899 desktop Android screen table screen intercom Android screen Tablet for smart home Tablet for home automation Android smart home POE Touch Screen Panel PC POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet POE powered Tablet POE LCD POE wall screen in wall Android screen Wall Tablet PC SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE powered tablet desk tablet GPIO tablet Android POE LCD POE LCD with RS232 POE LCD with RS485 POE LCS with serial port Android table with serial port Android serial port tablet GPIO LCD GPIO Android screen wall mount android tablet poe 7" android tablet poe SIBO POE tablet IEEE 802.3 AF POE tablet VESA tablet PC surface mounting tablet wall mount Android panel PC POE panel PC POE LCD android POE display Android home automation LCD smart home LCD SIP tablet SIP android home automation SIP door Android screen touch screen POE Android display with POE touch LCD with POE Video intercom tablet intercom tablet Echo cancellation tablet great sound tablet PC with power amplifier embedded tablet PC embedded Android RJ45 tablet PC Ethernet tablet PC Ethernet Android PC Ethernet Android display GPIO control RS232 Android control RS485 Android control Rugged tablet Solid tablet PC Industrial tablet PC smart building tablet smart building controller screen In Wall Android Tablet For Home Automation 9 Inch In Wall Flush Mount Android Tablet 7" RS485 Tablet with GPIO and CBVS 7" RS485 Tablet with GPIO and CBVS RS485 Android LCD RS485 Android screen RS485 HMI RS485 touch screen RS485 LCD Wall control pad Ethernet pad POE in wall controller Touchscreen Keypad for VoIP Intercom POE TOUCH PANEL PC Tablet Powered via Power-over-Ethernet 7" POE multi-touch screen RUGGED TOUCH MONITOR DISPLAYS wall mounted Android tablet with POE tablet LAN POE Tablet with POE and Ethernet connection HMI Android Panel PC 7" POE Panel PC POE Control Panel Touch Panel PC with Power over Ethernet POE IEEE 802.3 af tablet Flush Mount Android Tablet With Serial Port Tablet PC with TTL UART TABLET PC TTL control screen UART Android LCD Amplifier Tablet SIP Stack Tablet Wall Mounted Android Panel PC LAN Surface Mounting Wall Tablet PC 9" Wall Mounted Android Tablet with POE RS232 RS485 Wi-Fi 3G, RJ-45 Ethernet Port 7 Inch Android Tablet PC RJ45 POE Android POE Wall Mounted Tablet for Employee Time Clock In Wall Android POE LCD 7 Inch Wall Ethernet RJ45 Android Tablet 7inch Touch Panel PC Android In-wall Casing Wall Installation tablet Wall Mount Panel Computer android With Ethernet 3G WIFI Serial Port Rugged wall Android Touch Pad Wall Mounting Home Automation Controller POE Screen With RS232 RS485 Android Screen For Home Automation Control Wall Bracket Android Tablet PC With RJ45 POE RS232 tablet Industrial tablet with RS232 RS485 tablet PC Android Power over Ethernet TFT LCD touch displayer HMI with rs232 /TTL serial interface IP intercom tablet CVBS AV tablet AV in tablet HDMI tablet CBVS tablet IPS wall tablet wall IPS display Dual RS232 / TTL Android Tablet PC Dual TTL Tablet PC Double RS232 Tablet PC Tablet RS232 Tablet RS485

The SIBO Android Tablet PC can directly be embedded into a wall, be placed on wall / or desktop with rich Android application for Industry, home application and so on...

7 Inch Enhanced Tablet PC With RS232 / RS485 / P

Desktop bracket and the mounting picture:



Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry

Flush mounting insalltion:
Android Tablet with Serial Port RS232 RS485 GPIO for industry

Android Tablet with Serial Port RS232 RS485 GPIO for industry
Android Tablet with Serial Port RS232 RS485 GPIO for industry

On wall mounting:

Android Tablet with Serial Port RS232 RS485 GPIO for industry

Android Tablet with Serial Port RS232 RS485 GPIO for industry



Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.

POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE LCD embedded touch LCD Android RS232 Android RS485 Android GPIO RS485 touch screen RS232 touch screen in wall LCD in wall touch screen Wall mounted touch screen Wall mounted Android display RS232 touch display RS485 touch display serial port display GPIO touch display POE display POE touch screen POE touch LCD Ethernet tablet Ethernet touch screen power over Ethernet screen Android POE flush mounting touch screen Wall Android RJ45 Android RJ45 tablet SIBO Q8 SIBO android screen SIBO home automation SIBO intercom SIBO Q899 desktop Android screen table screen intercom Android screen Tablet for smart home Tablet for home automation Android smart home POE Touch Screen Panel PC POE tablet Wall Tablet POE screen Wall mounted Tablet SIBO Wall Tablet POE powered Tablet POE LCD POE wall screen in wall Android screen Wall Tablet PC SIBO Q896 No button Android screen Wall LCD Android Flush mounted Tablet POE powered tablet desk tablet GPIO tablet Android POE LCD POE LCD with RS232 POE LCD with RS485 POE LCD with serial port Android tablet with serial port Android serial port tablet GPIO LCD GPIO Android screen wall mount android tablet poe 7" android tablet poe SIBO POE tablet IEEE 802.3 AF POE tablet VESA tablet PC surface mounting tablet wall mount Android panel PC POE panel PC POE LCD android POE display Android home automation LCD smart home LCD SIP tablet SIP android home automation SIP door Android screen touch screen POE Android display with POE touch LCD with POE Video intercom tablet intercom tablet Echo cancellation tablet great sound tablet PC with power amplifier embedded tablet PC embedded Android RJ45 tablet PC Ethernet tablet PC Ethernet Android PC Ethernet Android display GPIO control RS232 Android control RS485 Android control Rugged tablet Solid tablet PC Industrial tablet PC smart building tablet smart building controller screen In Wall Android Tablet For Home Automation 9 Inch In Wall Flush Mount Android Tablet 7" RS485 Tablet with GPIO and CBVS 7" RS485 Tablet with GPIO and CBVS RS485 Android LCD RS485 Android screen RS485 HMI RS485 touch screen RS485 LCD Wall control pad Ethernet pad POE in wall controller Touchscreen Keypad for VoIP Intercom POE TOUCH PANEL PC Tablet Powered via Power-over-Ethernet 7" POE multi-touch screen RUGGED TOUCH MONITOR DISPLAYS wall mounted Android tablet with POE tablet LAN POE Tablet with POE and Ethernet connection HMI Android Panel PC 7" POE Panel PC POE Control Panel Touch Panel PC with Power over Ethernet POE IEEE 802.3 af tablet Flush Mount Android Tablet With Serial Port Tablet PC with TTL UART TABLET PC TTL control screen UART Android LCD Amplifier Tablet SIP Stack Tablet Wall Mounted Android Panel PC LAN Surface Mounting Wall Tablet PC 9" Wall Mounted Android Tablet with POE RS232 RS485 Wi-Fi 3G, RJ-45 Ethernet Port 7 Inch Android Tablet PC RJ45 POE Android POE Wall Mounted Tablet for Employee Time Clock In Wall Android POE LCD 7 Inch Wall Ethernet RJ45 Android Tablet 7inch Touch Panel PC Android In-wall Casing Wall Installation tablet Wall Mount Panel Computer android With Ethernet 3G WIFI Serial Port Rugged wall Android Touch Pad Wall Mounting Home Automation Controller POE Screen With RS232 RS485 Android Screen For Home Automation Control Wall Bracket Android Tablet PC With RJ45 POE RS232 tablet Industrial tablet with RS232 RS485 tablet PC Android Power over Ethernet TFT LCD touch displayer HMI with rs232 /TTL serial interface IP intercom tablet CVBS AV tablet AV in tablet HDMI tablet CBVS tablet IPS wall tablet wall IPS display Dual RS232 / TTL Android Tablet PC Dual RS232 / TTL Android Tablet PC Double RS232 Tablet PC POE touch screen PD LCD IEEE 802.3af compliant Power over Ethernet Android PD Android Powered Device In-Wall Android Touch Screen Android wall LCD android tablet LAN LCD android tablet LAN tablet LAN RJ45 100Mbps Ethernet Tablet rs232 port Touch Screen for Intercom Video Door Phone 7 inch tablet with RJ45
