Specifications
Brand Name :
SIBO
Model Number :
Q896S
Certification :
CE, FCC
Place of Origin :
Shenzhen
MOQ :
2 units
Price :
127-170USD
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
5-25 working days
Packaging Details :
10 pcs in one carton
Operating System :
Android OS
CPU :
8-core
size :
7"
screen :
IPS capacitive touch screen
network :
wifi, lan, bluetooth, 3G(optional)
battery :
no battery
power supply :
AC 100-240V, DC 9-36V, POE 48V
feature :
auto boot up when power on
mount :
wall mount, glass wall mount, desktop mount
Description

Unique glass wall mounted tablet pc with Rj45 Ethernet LED for smart house

Product description

Model Q896S 7 inch screen is very designed for home automation, industry control, agriculture control and so many other applications . The tablet is built in Allwinner A83T 8-core CPU and with Android 6.0 OS, the system will be more smooth. With the design of two glasses screen no battery, no buttons, it looks simple and very nice. You can use DC IN or POE powered. The tablet will auto boot when power supplies.

The tablet also supports optional serial ports like RS232/RS485. If you want to control switches, we have GPIO for your choice. You can tell us how many I/O you need. We can customize according to your requirents. What's more, to easy installation, we offer three wall mounting methods: On wall, inwall flush mounting and on glass wall mounting.

All you need in one box

We have:

  • In wall / On glass bracket
  • Glass surface, Button free design
  • Top fading LED
  • Power over Ethernet
  • Build-in NFC / RFID card reader
  • Multiple network support

We could:

  • One year warranty
  • Hardware modifying
  • Software customizing
  • Full technical support

POE Supported:

POE(Power Over Ethernet) is a technology that lets network cables carry electrical power.Unique glass wall mounted tablet pc with Rj45 Ethernet LED for smart house

Technique details
Model Number Q896S
Hardware Specs Processor Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
Software Feature System Google Android 6.0
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
Language Support multi-languages
Interfaces Back HDMI Out
DC IN Power Terminal (9V-36V)
Ethernet Interface(RJ45)
USB Socket HOST Mode By Default
Optional:RS232,RS485
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
LAN Port Ethernet RJ45
Power Supply DC IN DC 9V - 36V
Boot Up Auto Boot Auto Boot Up When Power Supplies

Products Pictrues

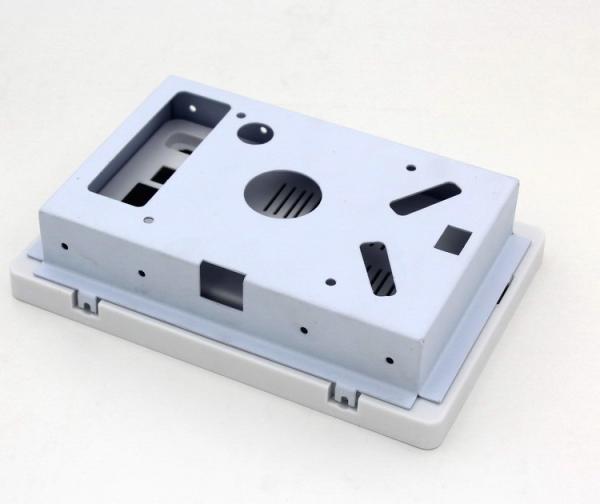

Unique On Glass Mount Bracket:

Easy to mount on glass. Simple and clean

Unique glass wall mounted tablet pc with Rj45 Ethernet LED for smart house

Unique glass wall mounted tablet pc with Rj45 Ethernet LED for smart houseUnique glass wall mounted tablet pc with Rj45 Ethernet LED for smart house

Top Indicating LED:

Unique glass wall mounted tablet pc with Rj45 Ethernet LED for smart house

In wall mount method:

Unique glass wall mounted tablet pc with Rj45 Ethernet LED for smart houseUnique glass wall mounted tablet pc with Rj45 Ethernet LED for smart house

Our Services

As a full service manufacturer of tablet, we offer OEM and ODM services.

Custom Services:

  • Branding/Packaging
  • Custom logo/boot up splash screen
  • Customizable GUI
  • Boot up to time clock application
  • Lock down displays
  • Pre-loaded apps
  • Custom ROM

Packaging & Shipping

Packaging:

1. 10units/ctn

2. Carton demension: 28.5x27.8x31.5(cm)

3. Weight: 7.5kg/ctn
SHIPPING:
1. we could deliver the goods with your DHL/Fedex/etc account if you have.
2.DHL/UPS/FedEx/TNT for samples, door-to-door. (Your option)
3.By air or by sea for batch goods. (Your option)
4.Delivery Time:5-7 days for samples, 20-25 days for batch goods.
Payment Terms

1. For sample (Payment method: credit card, T/T, Western Union)
2. For bulk order(more than100pcs), customers should pay 30% deposit first, 70% balance should be paid before delivery.(Payment method: T/T)

FAQ

Question: Are you manufacturer?

Answer: Yes, we are professional manufacturer for home automation with the experience of 16 years.

Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.

Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)

Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.

Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express


Question: Can you put my brand name(logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.

Question: What service do you have?

Answer: We have full-technique support(offer sample app and original source code for RS485,GPIO, NFC, etc.)

Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.

Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2. All products will be carefully tested by our QC department.
3. Before test, all tablet PC have 24 hours aging test.

We support ODM/OEM. Welcome to order a sample for testing!
