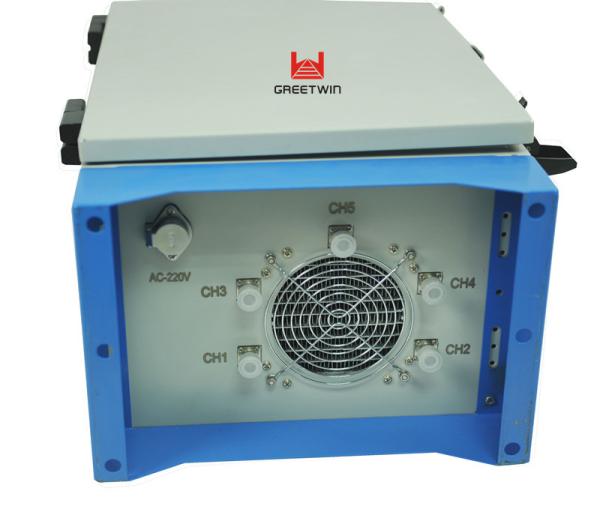

500m Outside Drone Signal Jammers Drone Signal Scrambler For Aircraft
500m Outside Drone Signal Jammers Drone Signal Scrambler For Aircraft
500m Outside Drone Signal Jammers Drone Signal Scrambler For Aircraft
500m Outside Drone Signal Jammers Drone Signal Scrambler For Aircraft
Specifications
Brand Name :
GREETWIN
Model Number :
GW-UAV-OSJ10
Certification :
SGS, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000pcs per Month
Delivery Time :
10 Working Days after Received Payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
500m Outside Drone Signal Jammer
Application :
Sensitive Areas, Prisons
Working Time :
24 Hours
Jamming Source :
VCO technology
Output Power :
215Watt
Jamming range :
up to 500m
Jamming frequency :
GPSL1, GPSL2, 2.4G, 5.8G, 900MHZ
Other Name :
Aircraft Jammer
Description

500m Outside Drone Signal Jammers Drone Signal Scrambler For Aircraft

Drone Signal Jammer Product Description:

The GW-UAV-OSJ10 Drone Jammer was designed to neutralize unauthorized drones / aircraft as far as 1km away, from entering secured fields and campuses.

The system jamming for Drones by using an array of directional Antennas. the system starts to block all radio communication channels, including GPS signals and remote control signal.

At this point the drone will drift away and lose communication with its operator.

Drone Signal Jammer Applications:

Sensitive Areas

Prisons

Oil Refineries

Military Bases

Protected Areas

Drone Signal Jammer Function:
Effective interference with UAV Remote-Control Signal 2400MHz, GPSL1, GPSL2 signal, 900MHz Signal and Transmission Signal 5800MHz.

Drone Signal Jammer Features:
1. High integration & Stable operation, VCO technology.
2. Highly effective power & long jamming distance.
3. Separate control of each module, convenient operation.
4. High quality tubular radiator, effective in radiating heat.
5. Import components; the moderating circuit-starting design avoids a spark when the device turn on/off.

Drone Signal Jammer Application:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of military important places, etc.
that forbid aerial photography by use of UAV.

Drone Signal Jammer Technical Parameters:

Channel Working frequency Output power(±1dBm)
2.4G 2400-2485MHz 47 dBm
5.8G 5725-5850MHz 41.7 dBm
GPS L1 1573-1607MHz(GPS,GLONASS) 47 dBm
GPS L2 1225-1250MHz(GPS,GLONASS) 47 dBm
900M 902-928MHz 47 dBm
Total output power: 215W
Power consumption : 700W
Power supply: AC220V, or 110V, DC28V
Main engine weight :30Kg
Size:650×350×300mm
With omni antenna or directional panel antenna
Jammer Module Number : 5
Cooling System: Systematic Smart Cooling System
System Protection : VSWR Protection
Jamming Source : Frequency Scan Technology
Humidity: 30%-95%
Running temperature : -10ºC to +50ºC
Jamming range: up to 500M,according to signal density of mobile network

500m Outside Drone Signal Jammers Drone Signal Scrambler For Aircraft
