Specifications
Brand Name :
GREETWIN
Model Number :
GW-VIP JAM6
Certification :
SGS, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000pcs per Month
Delivery Time :
10 Working Days After Received Payment
Packaging Details :
Wooden Case with PE Foam
Product Name: :
433MHz Manpack Jammer
Output power :
600W
Operating Temp: :
-20℃ to +55℃
Other name :
315MHz Bomb Jammer Trolley Jammer
Jamming range :
50 - 500meters,depend on signal strength of mobile network
Antenna :
With Broadband Omni Directional Antenna
Working band :
Six Band
Application :
VVIP Protection
Description

433 MHz Manpack Trolley Bomb Mobile Phone Signal Blocker For Schools

Introduction:

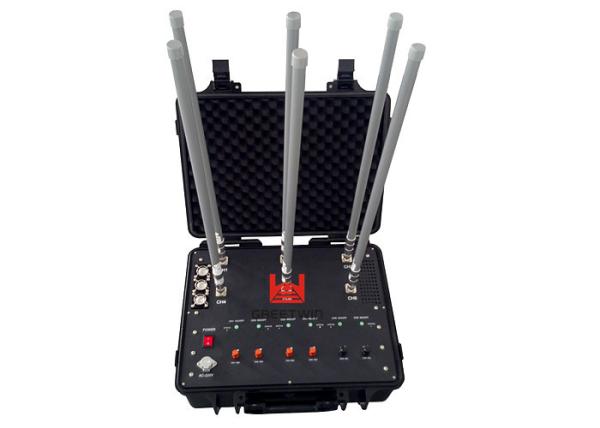

Signal Blocker GW-VIP JAM6 is lightweight manpack cellular jammer, designed for ground troops under the risk of encountering radio controlled improvised explosive devices, known as RCIEDs detonated remotely by cellular devices. Fully weatherproof, and trolly type, has a robust mechanical design, addressing different cellular frequency range requirements simultaneously.
This protects the personnel for moving the unit, protection in places of increasing problem of remote controlled IED deployment. covers 433MHZ, 315MHZ, GSM900, GSM1800, CDMA800, CDMA1900, UMTS-2100(optional) with 50 Watts power output, and it can be customized upon request.

Signal Blocker Technical Specification:

Can customize these frequencies AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless Toys , FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS,WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, 5.8G, etc.

Output interface Description Shield band of frequency RF output power
CH1 CDMA800 851-894 MHz 50dBm
CH2 WCDMA 3G 2110-2170 MHz 50dBm
CH3 GSM900 925-960 MHz 50dBm
CH4

GSM1800

/PCS 1900

1805-1880 MHz

/1930-1990 MHz

50dBm
CH5 VHF 135-174MHz 50dBm
CH6 UHF 400-470MHz 50dBm
GPS L1(Optional) 1570-1580 MHz
WIFI, 2.4G(Optional) 2400-2485 MHz
Power supply: AC220V, DC24V
Total Output Power: 600Watt
Power consumption:1800Watt

Weight: 35Kg

Size(length × wind × high):580×280×410mm

Humidity: 30%-95% Running Temperature: -20℃ to +55℃
Jammer Module Number 6
Cooling System Systematic Smart Cooling System
System Protection VSWR, Over-voltage
Jamming Source Frequency Scan Technology
Antenna Type High Gain Omni-directional Antennas
Number of Antennas 6
Outside Battery (Optional) 24V DC
Jamming range: 50-500m according to signal density of mobile network

Signal Blocker Advantages:

  1. High-power multi-band jammer, Frequency Scan technology,
  2. Modular construction for easy maintenance, repair and upgrade.
  3. Jamming up to SIX different jamming modules.
  4. Max 600watts total RF output power.
  5. AC mains or DC power.
  6. Systematic Smart Cooling System.
  7. The general design of the system meets military requirements.
  8. Different frequency bands can be controlled independently by single switches;
  9. Power Amplifiers protection design ensures the working reliability of the device

Signal Blocker Application:

Special Police (S.W.A.T), military security forces, bomb squads, anti-terror units, anti-drug units, Border control units, checkpoint personnel.
