23dBm EGSM 900 / 1800 / 2100 Cell Phone Signal Boosters with Digital Technology

Model. GW-23DR-EDW

Cell Phone Signal Booster Description:

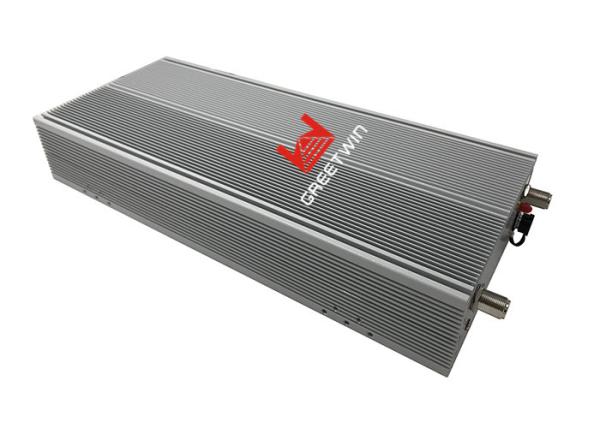

Greetwin GW-23DR-EDW model is a tri band digital repeater supporting EGSM 900 / DCS 1800 / WCDMA 2100 MHz with 23dBm per band and has software-defined filtering for up to 4 sub-bands per band. Individual gain and ALC settings allow for homogeneous coverage and oscillation prevention.

Each sub-band can work independently without any influence with each other. It’s designed to support one mobile system and help mobile operators to amplify their own mobile signals. It supports to adjust the sub-band and the channels by software to adapt to the operators’ requirement s without any change on the hardware. The repeater is also equipped with OMT / OMC remote control and monitoring system allowing to configure and control the device operation remotely via PC or wireless modem (optional function). The built-in backup battery will ensure the operation of the device even with a sudden power failure (optional function).

Cell Phone Signal Booster Features:

1. Stably working,low power consumption,fit in with industry standard

2. Digital technology, many SAW filters ensures enough output level and out-band suppression.

3. High isolation,strong compatibility,convection cooling,light weight, convenient installation.

4. Local RJ45 monitoring and remote monitoring conform to communication monitoring protocol standard, which is convenient for engineering commissioning and maintenance.

Equipment Compoments:

Digital repeaters main compoments as follows:

Cell Phone Signal Booster Working Principle:

The principle of Digital Band Selective Repeater is the downlink signal received by the Donor Antenna of the base station shall be sent to a band selective filter via duplexer to be filtered and to be amplified by the downlink band selective amplifier to a proper level. The Coverage Antenna via a duplexer shall emit the downlink signal. Similarly, the signal received by the Re-transmission Antenna shall have its level adjusted to a regulated level by a uplink band selective amplifier after it is filtered. The Donor Antenna will emit it after it is filtered and sent to the duplexer.

Panel interface description:

Cell Phone Signal Booster Specifications:

FAQ:
1. After installing booster signal not be very good, indoor signal coverage very small ?
> Adjust outdoor antenna's location and direction
> Change another high gain outdoor antenna
> Check whether cables are connected well
> Change more powerful repeater

2. Cell phone signal full bar, but communication quality bad ?
> Much closer distance between indoor and outdoor antenna, separate them with a longer distance.

3. After installing booster not only signal be good, but also more bad ?
> Much closer distance between indoor and outdoor antenna, separate them with a longer distance.

4. Working good for long time, suddenly signal bad ?
> Check whether outdoor cable connectors are flooded
> Check whether power light is working normally
> If cables are not flooded and power light is working normally, the booster should has problems and need to be sent back to factory for repair.

Cell Phone Signal Booster Application:

Cell Phone Signal Booster Installation:

The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.

Cell Phone Signal Booster Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.

Our Workshop:

Our Company:

Greetwin Tech is a strong and reliable factory, focusing on the R&D and Manufacturing of Digital ICS Repeater, RF Repeater, Indoor Signal Distribution System, Trunk Amplifier, Band Selective Repeater for more than 10 years.
