Product Name :
UMTS 3G 2100 Digital Repeater
Frequency :
WCDMA 3G 2100 MHz
Gain :
Maximum 75dB
Output Power :
Maximum 23dBm
Sub-bands :
4 Sub-bands
In-band ripple :
≤5dB
Intermodulation :
≤-40dBm
Noise factor :
standard ≤ 8dB, Max. ≤ 9dB
Description

75dB 23dBm 2100MHz 4 Sub-bands Cell Phone Signal Boosters with SMS Control

Model. GW-23DR-W

Signal Booster Description:

Greetwin GW-23DR-W Model can amplify radio coverage for up to five independent frequency bands for different mobile radio providers. The device provides the most cost-effective solutions to improve user experience of high quality mobile services in small to medium sized indoor areas such as houses, hotels, hot spots, shops, offices, meeting rooms, apartments, and so on.

The machine is a kind of digital repeater which is single band of WCDMA 2100 with 4 sub-bands. The 4 sub-bands can work independently without any influence with each other. It’s designed to support one mobile system and help mobile operators to amplify their own mobile signals. It supports to adjust the sub-band and the channels by software to adapt to the operators’ requirement s without any change on the hardware. The repeater is also equipped with OMT / OMC remote control and monitoring system allowing to configure and control the device operation remotely via PC or wireless modem (optional function). The built-in backup battery will ensure the operation of the device even with a sudden power failure (optional function).

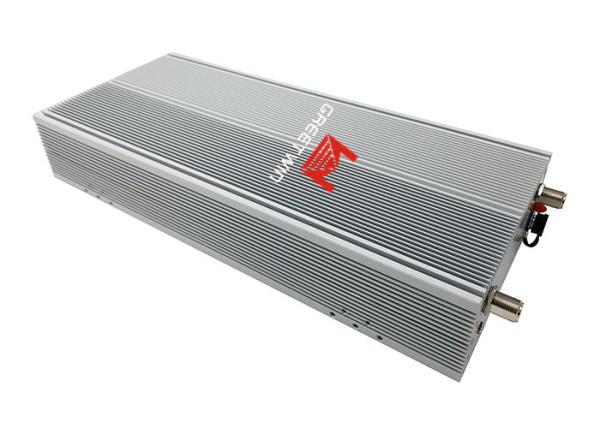

4 Sub - Bands Cell Phone Signal Boosters 75dB 23dBm 2100MHz With SMS Control

Signal Booster Features:

1. Stably working,low power consumption,fit in with industry standard

2. Digital technology, many SAW filters ensures enough output level and out-band suppression.

3. High isolation,strong compatibility,convection cooling,light weight, convenient installation.

4. Local RJ45 monitoring and remote monitoring conform to communication monitoring protocol standard, which is convenient for engineering commissioning and maintenance.

Signal Booster Equipment Compoments:

Digital repeaters main compoments as follows:

Copoments Specifications Quantity Unit Remarks
Main Master NXWXSB201821230111 1 Piece
Network Line 1M*R45 1 Piece
Ground Wire 1.5mm² 1.5 Meter Ended with metal sheet
Expansion screw M4*100mm 4 Piece
Mounting bracket / 2 Piece
Mounting bracket screw M6*14mm 4 Piece
Whip Antenna 800~2700MHz 1 Piece Used for Modem

Signal Booster Working Principle:

The principle of Digital Band Selective Repeater is the downlink signal received by the Donor Antenna of the base station shall be sent to a band selective filter via duplexer to be filtered and to be amplified by the downlink band selective amplifier to a proper level. The Coverage Antenna via a duplexer shall emit the downlink signal. Similarly, the signal received by the Re-transmission Antenna shall have its level adjusted to a regulated level by a uplink band selective amplifier after it is filtered. The Donor Antenna will emit it after it is filtered and sent to the duplexer.

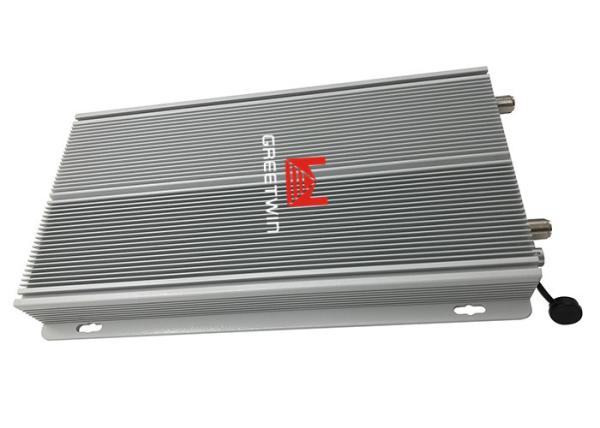

4 Sub - Bands Cell Phone Signal Boosters 75dB 23dBm 2100MHz With SMS Control

Signal Booster Panel interface description:

4 Sub - Bands Cell Phone Signal Boosters 75dB 23dBm 2100MHz With SMS Control

No. Items Description
1 Baffle Open it, SIM card socket and RJ45 interface inside
2 MODEM SMA-female jack, connect to a whip antenna with SMA-male jack
3 RUN Power indicator
4 ANT Indoor service antenna, SMA-female jack
5 BTS Outdoor donor antenna, SMA-female jack
6 GND Equipment grounding
7 AC Power Supply: AC 220V

Signal Booster Specifications:

Options Uplink Downlink
Frequency range 3G 2100 1920-1980MHz 2110-2170MHz
Bandwidth 3G 2100 4 subranges, each 0.2 ~ 15 MHz, adjustable and adjustable within the frequency range of 2100 MHz in 0.2 MHz steps
Max. gain 75±2dB 80±2dB
Max output power 30±2dBm 33±2dBm
Manual gain control (step down) ≥31dB/1dB step
1-10dB ︱△︱≤1.0dB
11-20dB ︱△︱≤1.5dB
21-30dB ︱△︱≤2.0dB
VSWR entrance ≤ 2.3
exit ≤ 2.3
Noise factor standard ≤ 8dB, Max. ≤ 9dB
Group delay ≤ 7us
Frequency stability 3G 2100 ± 0,01 ppm 3GPP TS 25.143 ( V 13.0.0 )
Function Elements
Moving strip 3G 2100 The frequency subbands can be mobile within the range of 60MHz
Adjustable bandwidth 3G 2100 The frequency subbands can be tuned from 0.2 MHz to a maximum of 15 MHz
LED system indicators ALC is not active --- Green
ALC active <45dB --- Flashing green 1 time / 3 seconds
ALC active ≥ 45dB --- Flashing green 1 time / 1 second
ALC active (51dB) ends --- Blinks red 1 time / 1 second
LED control indicators

Start indicator

The monitoring module is working correctly Flashing green 1 time / 1 second
The monitoring module does not work correctly Off

Indicator modem

SIM card not inserted Off
SIM card inserted, but no signal Red
SMS communication mode Flashing green 1 time / 1 second
GPRS communication mode Blinking green 2 times / 1 second
GPRS communication error Blinks red 1 time / 1 second

Alarm indicator

No alarm items Green
There are elements of anxiety Red
DC Failure Off
Mechanical parameters
Connectors N-Female
Dimensions 385mm(exclude connector 20mm)*200mm*45mm
The weight 4.46KG
Type of instalation Wall Mount
Grounding External ground (housing)
Electrical parameters
Source of power Incoming AC 100 ~ 240V, 50 ~ 60Hz, outgoing DC12V / 7A
Power Consumption 55W
Input and output impedance 50 Ohm
Environmental parameter
Working temperature -25℃ ~ +55℃
Environmental conditions IP40
Software
Local monitoring PC via Ethernet port
Remote monitoring via SMS or GPRS (additional function)
Controlled parameters Gain, Frequency, Repeater On / Off, Alarm
Monitoring parameters Gain, frequency, repeater on / off, alarm message
Alarm Repeater failure, power failure, ALC alarm (signal gain level), etc.

FAQ:
1. After installing booster signal not be very good, indoor signal coverage very small ?
> Adjust outdoor antenna's location and direction
> Change another high gain outdoor antenna
> Check whether cables are connected well
> Change more powerful repeater

2. Cell phone signal full bar, but communication quality bad ?
> Much closer distance between indoor and outdoor antenna, separate them with a longer distance.

3. After installing booster not only signal be good, but also more bad ?
> Much closer distance between indoor and outdoor antenna, separate them with a longer distance.

4. Working good for long time, suddenly signal bad ?
> Check whether outdoor cable connectors are flooded
> Check whether power light is working normally
> If cables are not flooded and power light is working normally, the booster should has problems and need to be sent back to factory for repair.

Signal Booster Application:

4 Sub - Bands Cell Phone Signal Boosters 75dB 23dBm 2100MHz With SMS Control

Signal Booster Installation:

The booster is fixed onto the wall through expansion bolts.
A. Drill holes on the targeted place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.

Signal Booster Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN: connected with Power adaptor.

4 Sub - Bands Cell Phone Signal Boosters 75dB 23dBm 2100MHz With SMS Control
