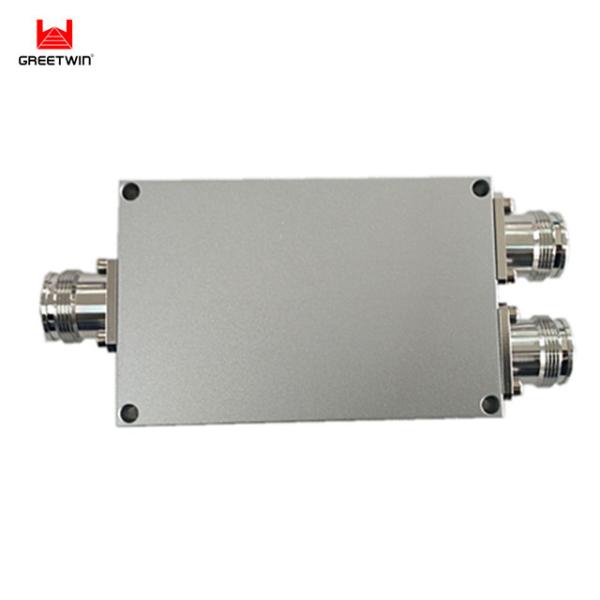

LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
Specifications
Brand Name :
Greetwin
Model Number :
GWPS-740-02-4F-150W
Certification :
CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
2pcs
Price :
$34.3-$40.8/ PC
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs per Month
Delivery Time :
3 Working Days After Received Payment
Packaging Details :
Carton with PE Foam
Color :
Black or Gray
Frequency Range :
698-4000-MHz
weight :
300g
Input Port Number :
1
Material :
Aluminum
Usage :
Base Station
Output Port Number :
2
Description

Greetwin power supply splitters 698~4000MHz Power Divider 2 way Power Splitter


Splitter Feature

Wide Frequency Band 698-4000MHz
2G/3G/4G/LTE/5G Coverage
Low Passive Inter-modulation
Low VSWR & Insertion Loss
Indoor & Outdoor Application
Widely used for In-building Solutions

Splitter Applications:

1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio

Power splitter is a kind of all output signal energy will be divided into two or more signals energy output devices.

Power splitters/dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined. Our compact, microstrip splitter/divider/combiners provide minimal insertion loss while delivering high isolation between output ports with exceptional phase and amplitude balance.

Splitter Specification:

Model No. GWPS-740-02-4F-150W
Freq(MHz) 698-4000
Input Port Number 1
Output Port Number 2
Split Loss(dB) 3.0
IL(dB) ≤1.0
Port Isolation(dB) ≥18
VSWR ≤1.45
3rd PIM (dBc) ≤-150dBc@2*43dBm
Average Power(W) 50
Impedance 50 ohm
Connector 4.3-10 Female
Color/Weight Black or Light-gray
Temp(deg) -35~+65
Application Indoor & Outdoor, IP65
Relative Humidity 5%-95%

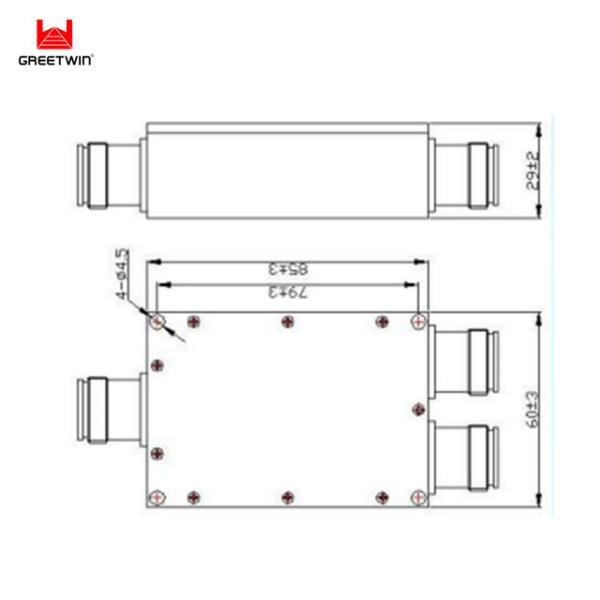

Dimensions(mm) 60*85*29 (Connectors Excluded)

LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way

LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way

LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way

LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way

LTE 698~4000MHz 50W Cell Phone Power Divider 2 Way
