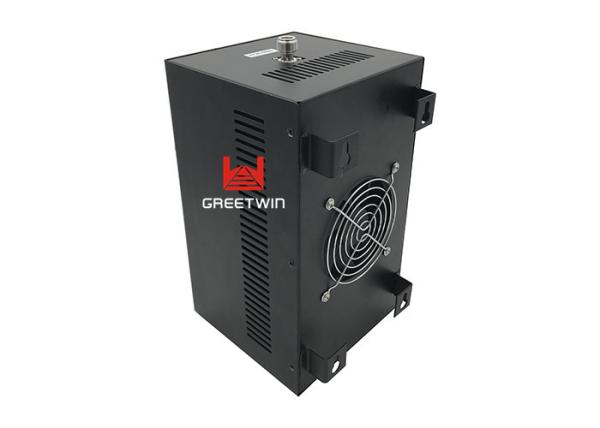

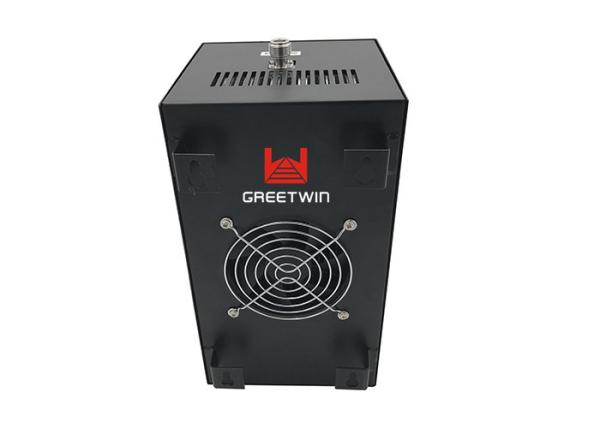

Single Band 5.8G Jamming Video Drone Signal Jammer with Independent Power Supply

Drone Signal Jammer Description:

Jammer GW-JM35 is a single frequency UAV/Drone Jammer. Normally, as a UAV/Drone Jammer, we need to shield 2.4, 5.8 G and GPS at the same time, but in some special cases, we only need to shield one of the frequencies. For example, we don't want to drive the UAV away, but we don't allow the UAV to take pictures or record videos around us. At this time, we just need to shield the frequency of 5.8G. In this way, the UAV can not transmit the image or video information back to the controller. Users do not have to worry about their lives or business privacy being stolen.

5.8 GHz is another RF used in quadcopter technologies, to avoid the entangling of frequencies in the same band. This frequency is commonly found in the DJI Phantom models. Let’s take a look at how the DJI Phantom Quadcopters avoid the most prevalent problems when dealing with radio frequencies.

Greetwin Company’s Drone Gun provides a safe countermeasure against a wide range of drone models. It allows for a controlled management of drone payload such as explosives, with no damage to common drones models or surrounding environment due to the drones generally responding via a vertical controlled landing on the spot, or returning back to the starting point (assisting to track the operator)

The portable UAV/drone jammer is our company's latest product designed by R&D department, against the widespread use of UAV nowadays.
It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, to force the UAV fall or return.

Drone Signal Jammer Features:

1. Indoor using, Light weight, very high output power

2. Strong cooling system, work continuously

3. Circuit, shock, temperature and voltage protection

4. Output power 20W make high jamming range

5. One channel with different frequency range

or customize other cellular standard in the world.

Such as 450M, 2.4G, 5.8G, Walkie Talkie,GPRS,iDEN,GPS,UMTS,WiFi,AWS,4G.

6. Each channel can be controlled separately and simultaneously.

Manual adjustable output power with each channel.

Drone Signal Jammer Application:
Prisons, military, government, Oil and Gas Storage Facilities and fields,

Churches, Theatres, News Conference Rooms, Libraries, Museums, Courts,
Border Patrol and Drug Enforcement, Customs, mosques, etc.

We make field test for Futaba 14sg,

ICR = Y / X = 600 / 50=12
Y is interference distance, X is Communication distance.
When X increase, ICR will be smaller , approach to 1.
For example,
When X is 100m, Y is 1KM.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.

-----Drone Signal Jammer Technical Parameters-----
