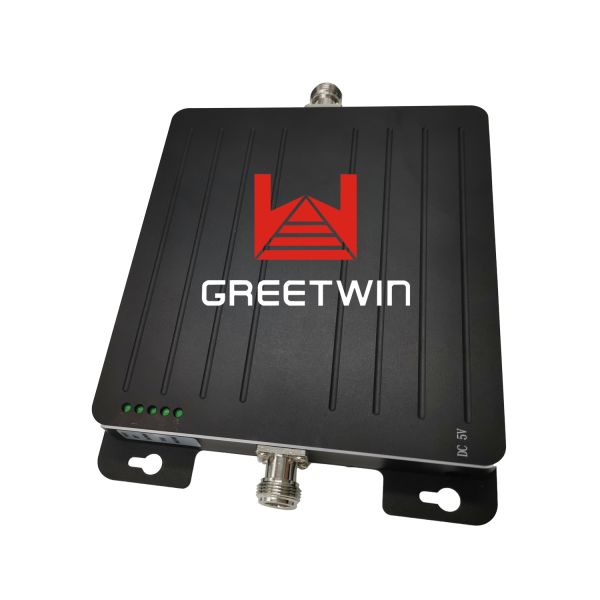

Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
Specifications
Brand Name :
Greetwin
Model Number :
GW-20DL-TD
Place of Origin :
Guangdong,China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
10000
Delivery Time :
3 - 5 Days
Price :
$119.9-$149.6/ PC
Certification :
CE
Gain :
60dB±2dB / 65dB±2dB
Output Power :
17dBm±2dBm / 20dBm±2dBm
Band width :
Wide Band
ALC :
≥ 20dB
Ripple in Band :
8dB
Noise Figure :
≤ 6dB
Intermodulation Products :
≤ -40dBc
DCS1800MHz Frequency :
Uplink: 1710-1785MHz; Downlink: 1805-1880MHz
LTE2300MHz Frequency :
Uplink: 2300-2400MHz; Downlink: 2300-2400MHz
Description

Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater with Antenna

Model: GW-20DL-TD

Signal Repeater Description:

■ Built-in TD-LTE baseband chip, accurate frame synchronization algorithm to ensure accurate synchronous high-speed switching, and basically achieve transparent transmission.

■ micro power, built-in adaptive function to ensure good coverage and will not interfere with the macro station.

■ Automatically synchronize with the base station without manually setting the uplink and downlink time slot ratio.

■ Using this product can significantly improve the Internet access rate of TD-LTE terminals, which can effectively help operators improve the experience of TD-LTE users.

■ Without fiber transmission, the installation is fast and the overall cost is low. This product can quickly help TD-LTE operators optimize and extend the TD-LTE network in the initial stage of network construction, or perform precise indoor extension coverage in the middle and later stages of network construction.

■ Reduce the uplink transmit power of the terminal and significantly increase the battery life of the user terminal.

Signal Repeater Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.

Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

Signal Repeater Application Diagram:

Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna

Signal Repeater Specification.

Frequency Range Uplink Downlink
DCS1800 1710-1785MHz 1805-1880MHz
TD LTE2300 2300-2400MHz 2300-2400MHz
Gain 60dB±2dB 65dB±2dB
Output Power 17dBm±2dBm 20dBm±2dBm
Band width Wide Band
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz ≤ -36dBm/30KHz
1~12.75GHz ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50Ω
Power Supply AC 90-264V, DC 5V/2A
Power LED Power indicator
Alarm LED Red Self oscillation or Strong input signal
Green Normal
Mechanical Specification
RF Connector N-Female
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40(Indoor)
Installation Type Wall Installation
Size 130mm*98mm*16mm
Weight < 0.8Kg

Indoor 20dBm 2G 3G 4G DCS1800MHz LTE2300MHz Dual Band Mobile Network Booster Signal Repeater With Antenna
