90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
90w 20AH LiFePO4 Portable Signal Jammer Directional Antennas 2hrs 14dBi
Specifications
Brand Name :
GREETWIN
Model Number :
GW-JBP87XF
Certification :
SGS, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Contact Us
Payment Terms :
T/T, L/C
Supply Ability :
20000pcs per Month
Delivery Time :
3 Working Days After Received Payment
Packaging Details :
Box with PE Foam
Weight :
25kg (Main Jammer only)
Dimension :
500 x 305 x 457 mm (Pelican 1440 Case only )
Antenna :
Directional Patch Panel Antennas
Jamming range :
Radius 1000-3000+ Meters
Power supply :
AC110 or 220-240V /DC 27V
Battery :
+24V / 20AH LiFePO4 can work 40-60 Minutes
Description

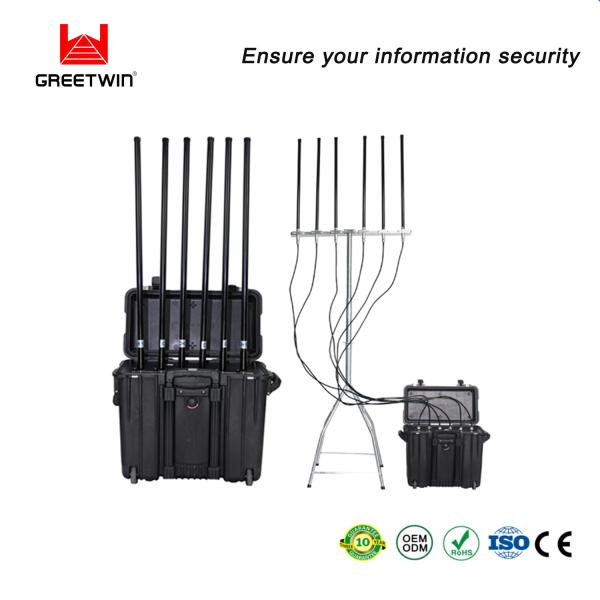

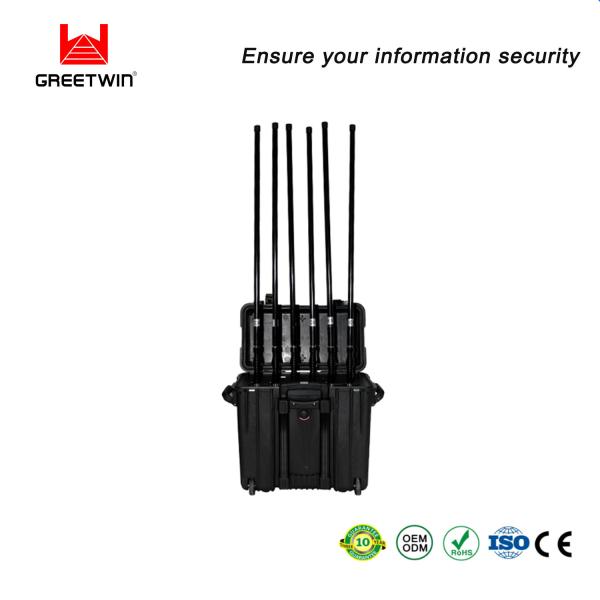

10 Band Portable Signal Jammer 90w Built in Directional Antennas LifePO4 Working Time 1-2 Hours Signal Blocker

Details

One Directional Antenna with Three Bands to Cover 90 Degrees

2.4-2.5GHz:20W

WiFi 11.g, b, Bluetooth

GPS L1 + GLONASS L1 :40W

1570-1620MHz

5.7GHz-5.9GHz: 2.0W

WiFi 11.a
One Directional Antenna with Three Bands to Cover 90 Degrees

2.4-2.5GHz:20W

WiFi 11.g, b, Bluetooth

GPS L1 + GLONASS L1 :40W

1570-1620MHz

5.7GHz-5.9GHz: 2.0W

WiFi 11.a
Omni Antenna with Magnetic Base (cover 360 degree)

433MHz: 20W

Remote Control (cover 360 degree)
Total Two Directional Antennas to cover all 180 Degrees Total : 148 W
Option: GPS L2 L3 L4 L5: 15W, 5.8GHz: 15.0W, 860-920MHz:25W, 433MHz: 20W

Cover Most Commercial Used Drones / UAVs

Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)

100% Safe VSWR over protection (Isolator) for each modular
Battery +24V / 20AH LiFePO4 can work 40-60 Minutes
Power supply: AC110 or 220-240V /DC 27V
Jamming Range Radius 1000-3000+ Meters
Weight 25kg (Main Jammer only)
Dimension: 500 x 305 x 457 mm (Pelican 1440 Case only )
Working time: Without the time limit, May continue to work,
Antenna Directional Patch Panel Antennas
Warranty: 1 year

HIGHER GAIN DIRECTIONAL ANTENNA THREE BANDS IN ONE ANTENNA

ELECTRICAL SPECIFICATIONS

Frequency Range------------------------- 1570-1620MHz/2400-2500MHz/5100-5900MHz

Impedance---------------------------------- 50 Ohm

VSWR---------------------------------------- ≤1.5

Gain------------------------------------------- 14dBi (1570-1620MHz):16 dBi (2400-2500MHz)

18 dBi (5100-5900MHz)

Front to Back Ratio----------------------- ＞24dB

Polarization--------------------------------- ±45°

Horizontal 3dB Beam Width------------ (1570-1620):90° (2400-2500):90°

(5100-5900):90°

Vertical 3dB Beam Width--------------- (1570-1620):15° (2400-2500):15°

(515900-00):15°

Maximum Input Power------------------- 200W

Lightning Protection------------------------ Direct Ground

Connector Place--------------------------- Bottom

Connector----------------------------------- N-Female

MECHANICAL SPECIFICATIONS

Dimensions(L/W/D)------------------------- 745*180*80mm

Three Bands in One Antennas

Total 2 x Antennas

6 Band PCB-3077B-HGA-433

Weight------------------------------------------ 4.0 kg

Rated Wind Velocity------------------------ 60m/s

Operating Temperature-------------------- -40℃-60℃

Mounting Hardware------------------------- Ø50-Ø75mm

Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy

Reflector Material--------------------------- Aluminum Alloy

Radome Material---------------------------- PVC

Radome Color-------------------------------- Gray
