Product Information

Name: IP64 High Power Drone Signal Jammers for Outdoor Waterproof Project, output power 90W Jamming up 1000m
Model: CKJ-2003W3

Color: Grey

Basic Specifications

Jam Signal Type:Drones UAVs RC2.4G/5.8GHz/GPS Glonass L1 Signals

Output Power:Total 90W,20-50W each band

Jam Range:up to 300-1000 meters

Power Supply:AC110 or 220V to DC27V

Cooling System:High efficiency aluminum alloy radiator

Working Time:Not-stop Working

Product Size:385X307X156 mm(not Include Antenna)

Product Weight: appr.10kg (not include antennas)

Package Contents:Jammer Host x 1, Adapter x 1, antenna x3, 2 meters Cable x3

Product Description
The one is professional high power drone jammer with IP64 waterproof design, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series, RJ45/RS485 wireless control system be customized. used omni or directional antennas jamming UAV 360º or longer distance.

Advantage

Output power total 90w, Use High gain 5-10dbi omni antennas , shielding 800-1500m,Still depends on the strength signal in given area.

Each unit can jam up to 4 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0),

100% safe VSWR over protection (isolator) for each modular

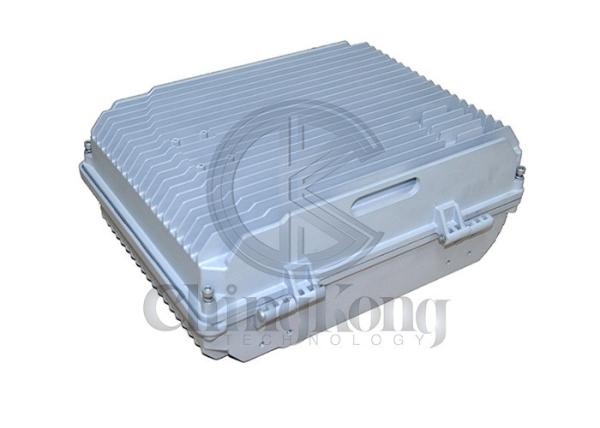

Big aluminum alloy shell, not-stop to work

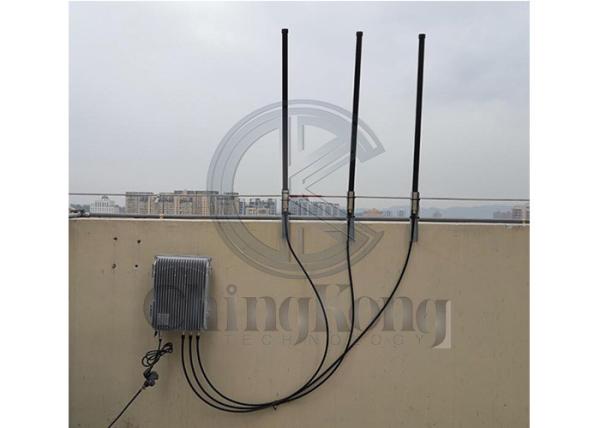

IP64 Design for outdoor installation, Secure design to avoid sabotage

Option RJ45/RS485 wireless control system.

OEM Customized Service
Frequency Range can be customized: Mobile phone GSM2G 3G 4GLTE and more
Silkscreen OEM service can be offered.

Application
1) Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;

2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;

3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.
