SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation
SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation
SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation
SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation
SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation
SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
SZHUASHI
Model Number :
YPM484034H
Price :
Prices are negotiable
Delivery Time :
2-10days
Packaging Details :
Carton
Application :
Amplifier module
Type :
Other
Series :
amplifier
Features :
Other
Mounting Type :
Self-installation (with hole position)
Description :
Self-adaptation
Manufacturing Date Code :
Other
Frequency :
100MHz -4.8GHz
Power :
2.5W
Functions :
Power amplifier
Voltage :
5v
Description

SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation

Product Description

Innotion's YPM484034H is a wideband power amplifier module. The YPM484034H operates from 100MHz to4.8GHz and typically provides 2.5-watt saturated output power with large-signal gain of 31dB.


Operating Frequency: 100MHz to 4.8GHz
Pout: 2.5-watt@Pin=3dBm, VDD=28V, VCC=5V
Large Signal Gain: 31dB @ Pin=3dBm, VDD=28V, VCC=5V
Quiescent Current of Drain: Idq=200mA @ VDD=28V, VCC=5V




SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation

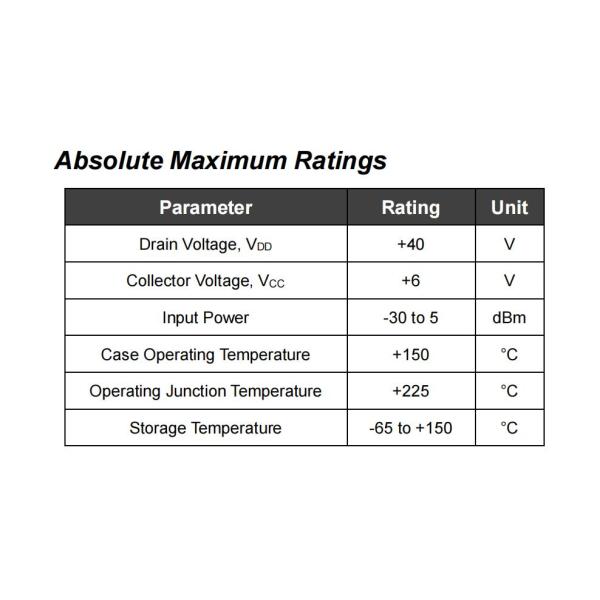

Parameter
Drain Voltage, VDD
Collector Voltage, VCC
Input Power
Case Operating TemperatureOperating Junction TemperatureStorage Temperature
Rating
+40V
+6V
30 to 5dBm+150°C
+150°C
65 to +150°C

SZHUASHI 100% New 100MHz-4.8GHz YPM484034H 2.5W PA Wideband Power Amplifier Module with Self-adaptation

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Product Description

Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.

FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.


3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
