SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C
SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C
SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C
SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C
SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C
SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C
Specifications
Model Number :
YP243433
Place of Origin :
Jiangsu, China
Brand Name :
SZHUASHI
Packaging Details :
Carton
Price :
Prices are negotiable
Delivery Time :
2-10days
Type :
YP243433
Network :
Wireless Lan, 4g, 3G
Parameter :
Rating
Input RF Power with 50R Output Load :
+10 dBm
Supply Voltage :
-0.5 to +8.0V
Bias Voltage :
-0.5 to +2.9V
DC Supply Current :
600mA
Operating Ambient Temperature :
-40 to +85°C
Storage Temperature :
-40 to +150°C
Description

SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C

Product Description

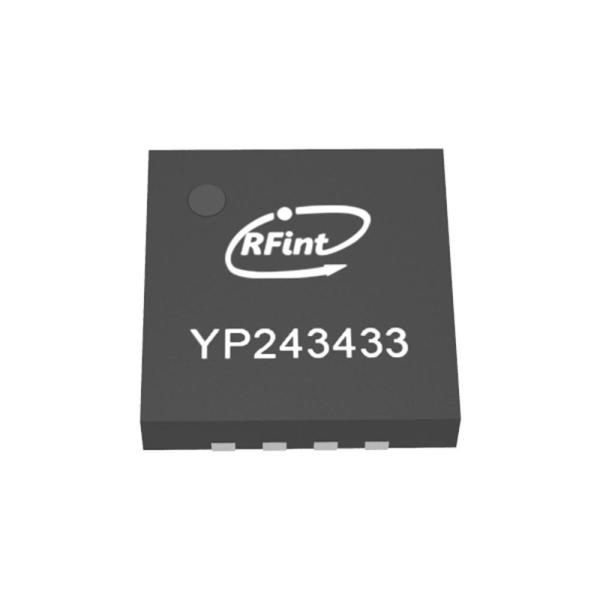

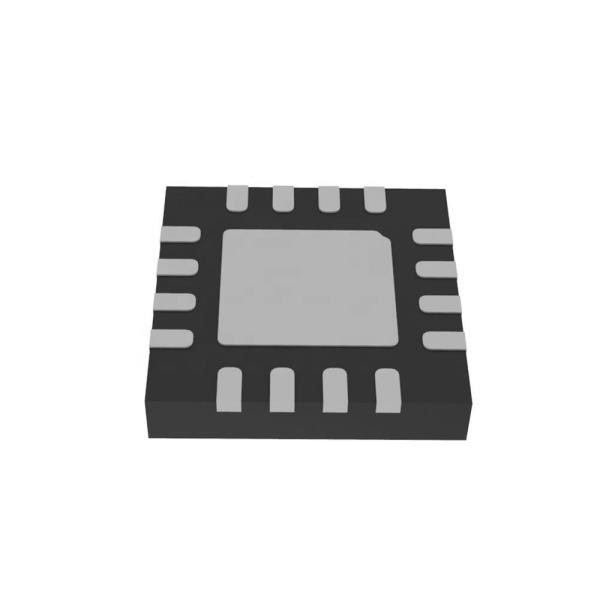

The YP243433 is a three-stage, high-linearity, high-gain power amplifier. The device is manufactured on an advanced InGaP/GaAs HBT process. This amplifier provides a typical gain of 35dB and P1dB power of 33dBm, typical bias condition is 5V at 320mA. The input are internally matched to 50Ω and require a minimum of external matching components to cover the entire 1.8GHz to 2.8GHz. The YP243433 is assembled in a 16-Pin, 4×4mm2, QFN package. It is internally integrated with ESD protection circuitry on all ports.

Applications

  • IEEE 802.11b/g/n WLAN
  • WiBro 2.3 GHz to 2.4GHz Applications
  • WiMAX 2.5 GHz to 2.7GHz Applications

Features

Parameter Rating
Input RF Power with 50R Output Load +10 dBm
Supply Voltage -0.5 to +8.0V
Bias Voltage -0.5 to +2.9V
DC Supply Current 600mA
Operating Ambient Temperature -40 to +85°C
Storage Temperature -40 to +150°C

SZHUASHI 100% YP243433 Three-stage Gain Power Amplifier PA Black Suitable for Operating Ambient Temperature -40 to 85°C

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.


3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
